CHAPTER 8
“Overall system speed is governed by the slowest component.”
—Gene Amdahl
Developing ETL processes that load the data warehouse is just part of the ETL development lifecycle. The remainder of the lifecycle is dedicated to precisely executing those processes. The timing, order, and circumstances of the jobs are crucial while loading the data warehouse, whether your jobs are executed real-time or in batch. Moreover, as new jobs are built, their execution must integrate seamlessly with existing ETL processes. This chapter assumes that your ETL jobs are already built and concentrates on the operations strategy of the ETL.
In this chapter, we discuss how to build an ETL operations strategy that supports the data warehouse to make its data reliably on time. In the first half of this chapter, we discuss ETL schedulers as well as tips and techniques for supporting ETL operations once the system has been designed.
The second half of this chapter discusses the many ways in which you can measure and control ETL system performance at the job or system level. (We discuss database software performance in Chapter 7.) You have more than a dozen knobs for controlling performance, and we give you a balanced perspective on which are most important in your environment.
At the end of this chapter, we recommend a simple but effective approach to ETL system security at the database, development environment, QA-environment, production-environment, and basic file-system levels.
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
This chapter describes best practices for running your ETL operations. Operations includes initial data loads, execution and monitoring the daily flow of data, capacity planning, performance monitoring, maintenance of the metadata repository, and controlling access to the back room databases.
Scheduling and Support
The ETL execution strategy falls into two major categories:
Scheduling. ETL scheduling is a comprehensive application that does much more than arrange for jobs to execute at a given time. In reality, the time of day that a job executes is almost insignificant. Instead, an effective scheduler involves the designation of relationships and dependencies between ETL jobs and acts as a reliable mechanism to manage the physical implementation of the execution strategy.
Support. Once the data warehouse is deployed, it invariably becomes a mission-critical application. Users, as well as other downstream applications, depend on the data warehouse to provide them with the information they need to function properly. If the data warehouse is not loaded consistently, it is deemed a failure. To make certain that the ETL process runs and completes, it must be actively monitored and supported by a production-support team.
Reliability, Availability, Manageability Analysis for ETL
A data warehouse can have the best dimensional data model, a best-of-breed business-intelligence tool, and sponsorship from the highest executives. But it is not a proven solution until it is considered a dependable source for corporate analytical information.
The goal of a new data warehouse is to build a reputation for being a consistent, reliable data source to support corporate data analysis to empower the business. To be a success, the ETL and the data warehouse teams must fulfill three key criteria:
Reliability. The ETL process must run consistently, without fail. The data within must be trustworthy at any level of granularity.
Availability. The data warehouse must be up, running, and available for use as promised by the data warehouse manager during initial kick-off meetings with the sponsors and users. ETL jobs must execute and complete within the allocated load window.
Manageability. Remember that the data warehouse is never finished. It must have the capability to change and expand as your company grows. The ETL processes must evolve gracefully with the data warehouse. To achieve extensibility, keep processes as simple as possible; break down complex routines into smaller, simpler components. At the same time, avoid an upsurge of jobs to carry out processes. Moreover, a crucial part of designing the execution strategy is ensuring the ability to support the ETL. The ETL team must provide metadata for all components of the ETL and document recovery procedures for every failure scenario. If you are hand-coding your system, make sure you have the management skills and perspectives to control a long-term software development environment.
The ETL manager must appraise each phase of the data warehouse by using the Reliability, Availability, and Manageability (RAM) criteria to score the project. The jobs and scheduling approach must pass each of the three criteria to get a perfect score and earn the right to deploy. If no metadata or recovery documentation exists, points are deducted and the processes must be revisited and enhanced or corrected. Jobs that are overly complex making them virtually impossible to maintain must be streamlined to progress to the next stage of the lifecycle. Each deployment of the data warehouse must achieve a perfect RAM score before it is rolled into production.
ETL Scheduling 101
Scheduling ETL processes is an obvious necessity to get them to run, so why write nearly a whole chapter about it? This chapter explains not just execution but execution strategy. A strategy is an elaborate and systematic plan of action. Anyone can execute a program, but developing an execution strategy requires skill.
For example, during a data warehouse and ETL design review, a user was complaining that the data warehouse was not available until 11:00 a.m. With this information, we immediately started to review ETL jobs to find where the bottleneck was so we could recommend a remedy. We shortly discovered the jobs were efficient and should not have taken three full hours to process from execution to completion. “That’s correct!’’ claimed an ETL developer on the project. “I kick them off as soon as I arrive at work, around 8:00 a.m., and they complete in three hours—by 11 o’clock.’’ In disbelief, we interrogated the developer about automation—and the lack of it in his implementation. He claimed he was never trained in the ETL tool’s scheduler, so he had to kick the jobs off manually.
Even though you execute your programs, it is imperative that you do so systematically. It is crucial that the ETL team understand the tools in your environment and have the ability to properly schedule and automate the ETL process to consistently load the data warehouse.
Scheduling Tools
Any enterprise data warehouse must have a robust enterprise ETL scheduler. Major ETL vendors package schedulers with their core ETL engine offerings. Some offer little more than a way to execute your ETL jobs depending on the time of the day, while others offer comprehensive ETL execution solutions that can trigger ETL jobs based on a variety of vital criteria.
If you are not satisfied with the packaged scheduler bundled with your ETL product or you opted to venture the ETL without a dedicated product, you have a few alternatives. Regardless of whether you buy a dedicated ETL scheduler, use your existing production-scheduling system, or manually code your ETL jobs to execute, a production ETL scheduler should meet certain criteria to be a viable enterprise solution.
Required Functionality of an ETL Scheduler
The next sections examine some of the options available to automate the ETL process. Many options are available, and each varies in cost and ease of use. Certain functionality is required in production ETL environments. When you select (or build) your ETL scheduling solution, make sure it contains the functionality discussed in the following sections.
Token Aware
Often, the data warehouse requires data acquired from an external source. External data providers are common, and your ETL solution must be able to accommodate their data. External data sources are usually provided as a flat file or in XML format. Reading and processing this data is by and large quite simple; the challenge is to make the ETL process aware of data’s existence. Unlike database sources, where you can look in tables’ audit columns to recognize new rows, external sources typically dump data files into a directory on the file system via FTP. As long as the format is correct each time, the ETL process can handle the data. But how does the ETL system know when an externally sourced data file has arrived and should begin its process? The ETL system must be able to recognize that the file has appeared in the file system and execute automatically. This process is called token aware.
Tokens are files created in the file system to trigger an ETL event. Applications that are token aware can poll a directory (or database table) for the arrival of a token file (or a row). When you handle flat files, Web logs, or external sourced data, you must avoid processing the same file repeatedly and also ensure that you don’t miss running the ETL process if the file arrives late. The token file is considered a token because it is not necessarily the actual file processed; it can be an indicator file that tells a process to execute merely by its arrival.
Intra-Day Execution
Daily processing is becoming less acceptable in today’s society, where expectations for immediate action are set so high. ETL processes must have the ability to run multiple times throughout the day and even on demand. Where monthly or daily incremental loads used to suffice, there are now calls for 12-hour, six-hour and four-hour increments; even hourly updates are becoming more common where real-time technology does not exist. These aggressive requirements mean that not only must your ETL jobs be efficient, but your scheduling system must be steadfast to manage the exorbitant number of processes that run throughout the day.
Moreover, your process must be able to span over the stroke of midnight—and restart outside of its allocated window. The practice of hard-coding SYSDATE-1 to look for yesterday’s data is not adequate for launching and selecting data from your source systems. The ETL system must be able to capture new data from source systems, regardless of when it was created or when the process is executed.
Real-Time Capability
Real-time execution is a reality of data warehousing that cannot be ignored. It is so important that we dedicate an entire chapter to the subject. Chapter 11 discusses several techniques for achieving real-time ETL execution. Real-time ETL is becoming more commonplace in most enterprises. More and more users now expect the data warehouse to be continuously updated and are growing impatient with stale data. Soon, real-time ETL will not be a luxury but a standing requirement.
Furthermore, as the data warehouse evolves, its value is realized by the most unexpected users. Because it offers clean, consistent, and reliable data, the data warehouse is becoming a source system itself. Transaction applications are increasingly becoming dependent on the data warehouse to be a standardized source for common reference data elements. To fulfill this so-called closed-loop movement, the data warehouse must update continuously to support operational applications.
Command-Line Execution
ETL products have dedicated so much energy toward creating slick graphical user interfaces (GUI) for their scheduling packages to reduce the learning curve for beginning developers and to expedite development time for seasoned ETL experts. But most enterprise system operations environments need the ability to execute ETL jobs from a command-line interface. The reality is that the team that supports the daily operations also supports many other applications and cannot be expected to learn a different interface to support each. Therefore, your ETL application must allow processes to be executed from a command-line interface for the data warehouse ETL to be supported by your system-operations staff. Note that the major ETL tool suites all allow command-line execution as an option for these reasons.
Notification and Paging
Once the ETL has been developed and deployed, its execution must be a hands-off operation. It should run like clockwork, without any human intervention and without fail. If a problem with the process does occur, the support group must be notified electronically. Your ETL solution must have the ability to notify different groups or people depending on the job or the type of failure. As we write this book, wireless PDAs and smart phones are exploding. These devices seem likely to be standard equipment for operational personnel. The displays on these devices can display complex text and graphical information, and the operator can issue commands to the ETL system remotely. See the warning that follows!
E-mail notification and paging must be completely automated. There is simply not enough time to wait for the key support personnel to be notified manually. Automated notification can be achieved in one of three ways:
Integrated ETL tool. Some of the major ETL products offer paging and notification features natively in their scheduling application. Features are usually not very robust, but they are getting better. At a minimum, you need to differentiate between successful loads and failures and page-appropriate personnel accordingly. Also, messages should automatically send vital information about the failure (for example, job name, time of failure, rows loaded, rows failed, and last error message dynamically).
Third-party messaging application. A number of companies offer urgent messaging products dedicated to supporting 24/7 system operations to minimize downtime. Additionally, operations management/monitoring tools often include notification features that can be utilized if your operations-support team utilizes such a tool.
Custom scripts. You have the option of manually scripting the e-mail notification portion of the execution strategy at the operating-system level. The scripts must interact with the ETL jobs and be triggered as necessary.
When designing your custom e-mail notification system, use scripts with embedded e-mail addresses with extreme caution. Scripts can be read on the file system as simply as a text file. Scripts are vulnerable to having e-mail addresses hijacked by spammers who can saturate the e-mail recipients with junk mail. Use encryption techniques or a solution from a secure product whenever possible.
Nested Batching
A batch is a group of jobs or programs that run together as a single operation. Usually, ETL jobs are grouped together—or batched—to load a single data mart. And the data warehouse, composed of a collection of data marts, is loaded with a batch of data mart load batches. The technique of loading batches of batches is known as nested batching. Nested batching can involve several layers of ETL jobs. For example, a single dimension can require several ETL jobs to load it due to severe complexity within the data or business rules. Those dimension jobs are grouped together to run in a single batch. That batch is included in another batch to load the rest of the dimensions for the data mart. The data mart batch is then incorporated into the data warehouse batch, making the batch three layers deep. No logical limit to the depth of nested batching exists.
ETL jobs are typically executed in nested batches. You will rarely run a single, standalone ETL job in a production environment. A data mart usually requires at least one job for every dimension and the fact table. As you can see, multiple levels of nested batching are common while loading the data warehouse. Therefore, your solution must be able to manage nested batches. Batch management includes the following:
Graphical interface. ETL batches typically become quite complex due to the nature of the nesting required to load the data warehouse. Select a batch-management tool that has the capability to navigate through your nested batches as easily as navigating through a directory structure in Windows Explorer. Without a graphical representation of the nested batches, management can become unwieldy. Developers should be able to create, delete, edit, and schedule batches through a GUI, as well as move jobs and nested batches among outer batches by dragging and dropping them. Batch management is best achieved graphically, although a logical naming standard must accompany the graphics. Visualization of the dependencies between batches is crucial to maintaining a clear understanding of which jobs belong in each batch and also to identifying dependencies between batches.
Dependency management. A dependency occurs when the execution of one job is contingent upon the successful completion of another. Rules of dependencies between jobs are defined in the execution strategy and must be enforced at runtime by the ETL scheduling system. Your batch-management tool must have the ability to stop a batch dead in its tracks upon a failed job if business rules so require. For example, if a dimension job fails, you must not proceed to load the fact table. Not all scenarios require such a strict batch-halt policy. For example, if an outrigger fails, it is usually still okay to load its associated dimension. The batch-management tool should be robust enough to set dependencies on a batch-by-batch basis as business rules dictate.
Parameter sharing. Values of parameters might need to be passed from one job to another or set once at the outermost batch and used globally throughout the nested batches. The batch manager must include parameter-management functionality. More information regarding parameter management is discussed in a section dedicated to that topic later in this chapter.
Graceful restart. What happens if a job fails in the middle of its execution? How do you know exactly what has been loaded and what has not? Upon restart, the batch-management tool must be able to systematically identify which rows have been processed and loaded and process only the rest of the input data. Special attention must be paid to the load process at times of midprocess failure. In general, the ETL system should have a number of staging points (steps in the process where data has been written to the disk) if for no other reason than to support a restart scenario. Also, special care should be taken if one of the ETL steps involves manual intervention and correction of data. These manual steps must at least be preserved in a log so that they can be reapplied if the ETL processing step must be rerun.
Sequential/Concurrent execution. In some cases, it is necessary to load tables sequentially. For instance, when tables have dependencies between them, you must load the parent before you can load child tables. Outriggers associated with specific dimensions are a good example of this parent-child sequencing, as well as normal dimensions and facts. You cannot load a fact until all dimensions are loaded. Also, sometimes you need to load tables in sequence rather than concurrently to distribute server resources. If you attempt to load all dimensions in a data mart at once, you might bring the ETL server to its knees by overloading its resources. Conversely, in cases of long-running processes, you can separate a job into several smaller jobs run concurrently to improve load performance. Assuming appropriate resources are available, run as many independent processes concurrently as possible to maximize processing and minimize the load window. More information on concurrent and parallel processing is detailed later in this chapter.
Pre/Post-execution activity. Simply launching scripts before or after an ETL process is not execution management. The batch manager must be able to realize that a preprocess script has executed successfully before it launches the core ETL job. Moreover, it must trigger only post-process scripts if the core ETL job completes without failure. Lastly, scripts must be able to be executed at the batch level as well as the job level. This is especially important for batches run concurrently, because a different job might complete last each time the batch is executed. Nevertheless, you might need a post-process script to fire off only after all jobs are complete.
Metadata capture. All metadata within the control of the batch manager must be captured, stored, and published. In a best-case scenario, metadata should be stored in an open repository that can be shared with other applications. Each ETL job has a scheduled execution time and frequency, its parameters, and recovery procedures, which are all forms of metadata that must be presented and easily obtained by those who need to support the load processes as well as business users. At a minimum, metadata must have reporting abilities so users and developers have insight into the operational aspects of the data warehouse ETL. Refer to Chapter 9 for an in-depth view of ETL metadata.
ETL tools are becoming better at failure recovery, but graceful restart is an extremely difficult requirement that we have not yet seen perfected. In many cases, it is still safest to truncate or delete the information that has been partially loaded as a result of midprocess failures and begin the failed ETL process from the beginning. If you entrust your tool set to automatically pick up where it left off, it is recommended that extra time be spent auditing the data of the completed process to ensure data quality and integrity.
Parameter Management
The ETL system moves through different environments throughout its development lifecycle. Since the lifecycle includes testing the code within the ETL system, you cannot alter the code between environments. Therefore, hard-coded parameters are not acceptable while coding variables in the ETL system. Parameters are a way to substitute values in code that would otherwise be constant. A robust ETL scheduling system must have the ability to manage and pass parameters to ETL jobs as they are executed. Parameters add flexibility to ETL jobs so they can gracefully change environments or extraction criteria without reprogramming the application. For example, the natural course of an ETL job is to be developed in a development environment, tested in a test environment, and ultimately migrated to a production environment where it supports the production data warehouse.
Each of the environments in the ETL lifecycle has dedicated source, staging, and target databases; file systems; and directory structures. By making each of these environment changes parameter driven, the ETL system can pass the jobs through the environments without changing code to point to relevant files or databases. You must parameterize environment variables and allow the scheduler to pass the applicable values to those variables at run time.
A good list of items to parameterize includes:
Server name
Database or instance name
Schema description file name
Database connection information (without the password in plain text!)
The root directory or folder in which to find useful control files
Metadata database-connection information
Your scheduler must be able to manage two kinds of parameters:
Global parameters. A global parameter is a single parameter that supports many ETL jobs. Naturally, ETL jobs can have many global parameters. For example, the target database name should be set globally; otherwise, you are forced repeatedly to maintain the parameter for each job that loads the data warehouse.
Local parameters. Local parameters live only within an ETL job. Local parameters can be set to change variables within a single job without affecting other jobs in its batch. An example of a local parameter is the setting of the earliest date that should be retrieved from the source table.
Native ETL tool schedulers are the best bet to obtain a robust parameter-management system because the scheduler is usually natively integrated with the ETL engine. Native integration of the ETL engine and the scheduler makes communication between the two components remarkably efficient. Architectures that involve parameter management by a third-party vendor are not as efficient but might provide more flexibility. ETL solutions that do not support parameters that can be set at runtime fail the Manageability criteria of RAM.
In an enterprise environment, it’s important to produce metadata for the parameters in your ETL jobs. If you don’t have a robust parameter-management system, parameters can be maintained in flat files on your files system. By utilizing flat files, the operations teams can simply update a parameter file without at all invading the ETL system.
ETL Scheduler Solution Options
In the previous section, we describe the functionality that one should expect of an enterprise ETL scheduling system. A few options that achieve the same functionally exist. In this section, we offer five options to select from when you are building your ETL scheduler solution:
1. Integrated ETL tool
2. Third-party scheduler
3. Operating system
4. Real-time execution
5. Custom application
The key is to select a solution robust enough to meet all the criteria you think you’ll need based on your knowledge of the jobs that have been created to load your data warehouse thus far, yet fits within the budget of the data warehouse initiative. The final criterion is to consider in-house expertise. The next sections evaluate each of the five options.
Integrated ETL Tool
Virtually all of the dedicated ETL tools incorporate a scheduling system to execute ETL jobs created within their toolset. Some tools offer minimal functionality, while others are robust scheduling applications. If you are not forced into using a tool that your operations-support team has already established as the standard scheduling tool and your ETL tool contains a robust scheduler, it is most beneficial to use your integrated ETL scheduler. Benefits of an integrated solution include:
Product support by your ETL vendor. Utilize a single Service Level Agreement (SLA) for both applications. Those with IT experience are familiar with the passing of the buck that occurs with multivendor solutions. Funny how problems are never the fault of the vendor on the phone. (It must be a compatibility issue caused by the other product.) Using a single vendor or product suite can improve vendor support and expedite the resolution of technical issues.
Integration of scheduler and ETL engine. Integrated suites are designed to pass parameters between components and natively enforce dependencies between jobs. Dependency between jobs, meaning the execution of one job depends on the successful completion of another job or set of jobs, is a crucial to properly loading the data warehouse and recovering from ETL failures.
Knowledge of toolset within ETL group. Since the ETL toolset is the specialty of the ETL team, they can set up the execution strategy without learning another application. Moreover, once an ETL job has been thoroughly tested, it is rare that it fails in production. When jobs do fail, the ETL team usually needs to get involved at some level of capacity. By keeping ETL scheduling within the domain of the ETL toolset, the team can easily jump into the support role and help recover any failed ETL processes.
Third-Party Scheduler
Many production-support departments standardize on a single scheduling system that all applications must adapt to. In some enterprise environments, the data warehouse is treated like any other application and must abide by the rules set by the production-support team. In these cases, the ETL is triggered by a scheduling system that supports all applications throughout the enterprise. Operating an enterprise-scheduling system is a specialty beyond the scope of the ETL team’s knowledge. The ETL team needs to work closely with the production-support team in cases where failure recovery is not straightforward.
If your production-support team insists that they execute ETL jobs via their standardized enterprise scheduling application, make sure it has the required functionality to properly support your ETL execution strategy, including dependencies between jobs, parameter management, and notification and alerts.
Operating System
It’s not uncommon for the ETL process to be executed by native operating system scheduling systems such as Unix Crontab or the Windows Scheduler. Even if you have a state-of-the-art ETL product, many production-support groups require scripts to execute the ETL jobs in production because it is a common denominator of all applications throughout the enterprise. Virtually any application can be executed via a line command or script at the operating-system level. In the Windows world, very elaborate batch or .BAT or VBScript or JScript files can be constructed to manage the execution of ETL processes. On Unix, Crontab is used to launch jobs. Operating-system schedulers can execute the ETL job directly or by way of a script.
As most programmers know, the power of scripting is not trivial. One can build very robust application-type logic with scripting languages. Most of the RAM criteria can be met with scripting. Moreover, Perl, VBScript, or JavaScript can be run on Unix or Windows to handle complex business logic while executing jobs that load the data warehouse. In fact, scripting languages can most likely provide the functionality of the logic within the jobs, too. However, we still recommend a robust ETL tool for building and maintaining ETL jobs. The shortfall of using scripting instead of a dedicated ETL scheduling tool is its lack of metadata. Any useful information regarding the ETL schedule lies within the scripts. One needs to be a programmer to decipher the information within the script. Two techniques can be utilized to maintain metadata within the execution scripts.
Spreadsheets. The ETL manager or programmer must maintain a spreadsheet that contains important metadata, including parameters, jobs within the batch, timing of the execution, and so on.
Tables. A dynamic scripting solution is metadata driven. All pertinent metadata is stored in tables (either database or flat) and is passed to scripts at runtime. Metadata-driven scripts are an achievable goal that should be built and utilized when integrated ETL schedulers are not an option.
Real-Time Execution
If part of your data warehouse is real-time enabled, you need to select one of the mechanisms detailed in Chapter 11 to support your real-time requirements. It is rare that an entire enterprise data warehouse is loaded in real time. Often, some segments of the data warehouse are loaded real-time, while others are batched and processed periodically. Special attention must be paid to the integration of the two types of ETL techniques to ensure a seamless, cohesive solution.
Custom Application
Building a custom scheduling solution is always an option. However, we have not come across a reasonable justification for a custom scheduling application—but that doesn’t stop some from building them anyway. If you choose to execute all of your jobs via scripts, it might be worthwhile to build an application to manage them, but building a custom GUI for this purpose would be overkill. Usually, scripting programs, along with metadata tables, are a viable solution for custom ETL scheduling.
Load Dependencies
Defining dependencies between jobs is perhaps the most important aspect of batching ETL jobs. If a subdimension load job fails, perhaps you can continue to load a dimension, but if a dimension load fails, should you continue to load the fact table? It’s usually not recommended. A dependency set between jobs is metadata that the load process must be aware of. Operational metadata of this sort is needed for the operation of the ETL to function properly. A fact table ETL process will load erroneously—missing key data—if it is executed before all of its dimensions are successfully loaded. Moreover, if the fact table is not designed to perform updates, all of the erroneous data must be manually backed out or deleted before the process can restart. Manual intervention is the costliest approach to rectifying failed ETL loads. Much of that cost can be avoided by declaring enforceable dependency rules between ETL jobs.
Dependency holds true between bridge tables and dimensions—and hierarchy mapping tables and dimensions. Use the preceding list as a reference for job-dependency definitions. In a nutshell:
Do not load dimensions without successfully completing their subdimensions.
Do not load bridge tables without successfully completing their dimensions.
Do not load fact tables without loading all parents, including bridge tables and dimensions.
However, keep this clever data warehouse aphorism in mind: For each rule of thumb, there are four more fingers to consider. For example, if a dimension is designed to update the foreign key that associates itself to a subdimension, it is not necessary to stop loading the data mart because a subdimension load has failed, as long as the scheduler issues a warning whenever a job does not complete as expected.
Metadata
Imagine if your local railroad ran its service without publishing its train schedule. How would anyone know when to catch the train? Running an execution strategy without publishing its metadata is equally detrimental to its users. Earlier in this chapter, we told you that your scheduler must capture metadata for the contents and schedule of batches and nested batches and that this metadata must be available to business users as well as to the data warehouse team. Batch metadata serves as the train schedule for the data warehouse. It should predict when users should expect data to arrive and become available for use.
The scheduling system should also let users know when data will be arriving late. This notification is different from the failure notification discussed earlier in this chapter. Data-availability metadata is a crucial aspect of communication and a key mechanism for setting user expectations. Metadata used to notify users of data arrival falls under the category of process metadata. Process metadata captures the operational statistics on the ETL process. It typically includes measures such as the count of rows loaded successfully, rows rejected, elapsed time, rows processed per second, and the row’s estimated time of completion. It is important process metadata because it helps to set user expectations—just like giving announcements at the train station.
Metadata collected during the cleaning and conforming steps serves several operational roles. It serves to advise the ETL team whether the data is fit to be delivered to the end user community. The data in the audit dimension is meant to be combined with normal data in specially instrumented data-quality reports, both for instilling confidence in the reported results and supporting compliance reporting. Finally, the cleaning and conforming metadata is a direct indicator of action items for improving the data quality of the original sources.
All metadata within control of the batch manager must be captured, stored, and published. In a best-case scenario, metadata should be stored in an open repository that can be shared with other applications. At a minimum, metadata must have reporting capabilities so users and developers have insight into the operational aspects of the data warehouse ETL.
Migrating to Production
The migration process can vary depending on many variables, including politics, technical infrastructure, and the ETL toolset. In general, the ETL team is usually part of the development side of things and should avoid the distractions associated with providing first-level production support for the data warehouse, unless your organization is large enough to warrant a dedicated production-support ETL team.
For the purpose of this chapter, assume that the ETL team exists only in development and hands its work over to a production-support team when the jobs are ready for production. Again, these processes can vary depending on your organizational structure and the tools employed in your environment. This section should be used as a guide to the finishing touches of the ETL lifecycle.
Operational Support for the Data Warehouse
It’s interesting how many books and articles talk about how the data warehouse team needs to maintain the data warehouse. In reality, at least in our experience, the data warehouse team—including the ETL team—are analysts as well as developers. They gather all of the business requirements, analyze the findings, and build the data warehouse. Once it is built, they usually hand it off to another team that monitors and maintains the production environment.
The data warehouse architect and data modelers are responsible for the dimensional data model, and the ETL manager is responsible for populating the dimensionally designed data warehouse.
The ETL development team builds the processes to load the data warehouse, and the quality-assurance (QA) team thoroughly tests them according to the written test plans. The data warehouse needs to be transitioned to the group within your organization that can support its day-to-day operations. If you are a small company or the data warehouse is still in its infancy, the development team may in fact support the operation of the ETL in production. But as the data warehouse grows—more data marts are added to it—the development team needs to be alleviated from the distractions of supporting the operational aspects of the production environment.
Once the ETL process is developed and tested, the first level of operational support for the data warehouse and ETL should be provided by a group dedicated to monitoring production operations—not the data warehouse development team. The data warehouse team should be called only if the operational support team has exhausted all troubleshooting procedures without resolution.
Bundling Version Releases
Once the ETL team gets past the terrific challenges of developing the ETL process and manages to complete the creation of the jobs required to load the data warehouse or data mart, the jobs must be bundled and migrated to the next environment according to the lifecycle that has been implemented by your data warehouse management team.
Have a discussion with your ETL tool vendor about exactly this step of your ETL deployment. Does the tool support incremental scripting of all edits, so that you can migrate your test system into development in a single command? Or do all the files have to be opened, examined, closed, and transferred one at a time?
With each data warehouse release, the development team should produce a release procedures document similar to the one displayed in Figure 8.1.

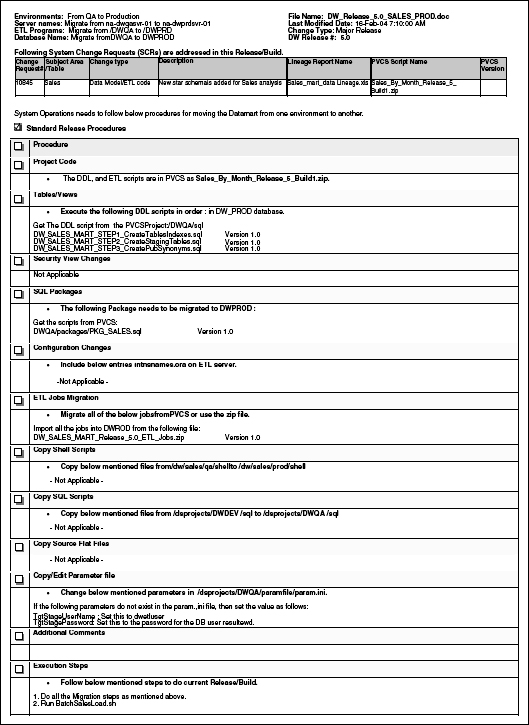

Figure 8.1 Data mart release document.
The data mart release document introduces the release and provides technical details required to migrate and support the release. The document includes the following:
Environment. This section contains the source and the target environment. Environment migrations are usually Development to Test or Test to Production. If you have more environments such as dedicated User Acceptance or QA, those will also be included in this section, depending on where your project is in its lifecycle.
Server name. The physical names of the servers in the environments participating in the migration. This can list the ETL and DW servers.
ETL Programs. Lists the directory where the programs reside. If you are using an ETL tool, use the component to identify the correct programs or jobs for the release.
Database Name. The database the migration is coming from and going to. This is usually Development to QA or QA to Production.
Documentation File Name. The name of the file that contains information about the migration, including step-by-step recovery procedures
Last Modified Date. The last time the Release Document has been modified
Change Type. The description of the type of release. Types include major, minor, or patch. See Chapter 2 for a complete explanation of release types.
Release Number. This is the version that the data warehouse becomes as a result of the release.
Change Request Numbers. This corresponds to the requests addressed and included in the deployment as a result of your scope-management procedures.
Procedures. The procedure is a step-by-step guide to migrate the jobs. The standard information usually provided on the release document includes:
Project Code. The area in the version-management tool to find the code to build the release in the data warehouse
Tables/Views. The Data Definition Language (DDL) that created the new structures and indexes for the new data mart
Security. Any new security policies or requirements to support the release
SQL Packages. Database store procedures used by the ETL
Configuration Changes. Global settings or entries required for the release, such as TNSNames (Oracle’s aliases for remote database names) or Object Database Connectivity (ODBC) connections.
ETL Jobs. Where to get the ETL jobs required for the release. Usually specifies an area in your version-control manager or ETL tool.
Shell Scripts. Preprocess and post-process OS shell scripts that the ETL depends on
SQL Scripts. Preprocess and post-process SQL scripts that the ETL depends on
Flat Files. A list of flat files, including their path for new source or staging files
Edits to Parameter File. For environments with managed parameters, this is where you list the new source system databases or any new changed parameters for the ETL process to utilize.
Additional Comments. Any further instructions or comments about the release to help the system operations team with the migration
Execution Steps. Explicit instructions for the execution of the job. For new data marts or independent ETL processes, you can specify the schedule and frequency of the run.
Once the data mart release document is complete, the ETL team walks through the document with the implementation team. During the migration, the ETL team should be on standby for any emergency issues that might affect production. Immediate response by the ETL team might not be a key requirement for the first release of the data warehouse. But as the data warehouse becomes recognized as a mission-critical application, any downtime can be detrimental to the organization and must be avoided. Once the migration is complete, the ETL team can return to their regular development tasks for the next phase of the data warehouse. Ongoing support for the production environment should be provided by a dedicated production-support team. The next section walks you through the different support levels required for a data warehouse.
Supporting the ETL System in Production
The beginning of this chapter explains how to get the ETL processes running and shared recommendations on several techniques for scheduling, batching, and migrating ETL jobs. This section of the chapter concentrates on supporting the ETL once it is in Production. Generally speaking, support for any software implementation essentially has three levels:
1. First-level support. First-level support is usually a Help Desk type of situation. If a failure occurs or a user notices an error in data, first-level support is notified. Armed with the appropriate procedures provided by the ETL team, the first-level support team makes every attempt to resolve the situation before escalating it to the next level.
2. Second-level support. If the Help Desk cannot resolve the support issue, the system administrator or DBA is usually notified. The second level of support is usually technically proficient and can support general infrastructure type failures.
3. Third-level support. If the production operations technical staff cannot resolve an issue, the ETL manager is the next to be called. The ETL manager should have the knowledge to resolve most issues that arise in production. Sometimes the ETL manager converses with developers or external vendors for advice on certain situations.
4. Fourth-level support. When all else fails, go directly to the source. Fourth-level support demands the expertise of the actual developer of the ETL job to analyze the code to find a bug or resolve an issue. If the issue involves a potential bug in a vendor application, the vendor is called in to support its product.
In smaller environments, it is acceptable—and common—to combine support levels three and four. However, that combination puts more of a burden and coordination factor on the second-level support team. It is not advised to call an ETL developer every time a job fails. First-level support should be more than merely a phone service and must make every effort to resolve production issues before they are escalated to the next service level.
Achieving Optimal ETL Performance
Okay, you’ve thoroughly read this book and implemented a luminous ETL solution. But wait; you are not done yet! As your data warehouse expands, you must ensure that your ETL solution can grow along with it. A scalable ETL solution means that the processes you’ve designed have the ability to process much larger volumes of data without requiring redesign. Your designs must execute efficiently to achieve the performance required to process loads far greater than the size of their current volume. Scalability and performance are attributes that cannot be overlooked when designing the data warehouse ETL.
ETL developers, DBAs, and the data warehouse management team will benefit from this chapter because it outlines strategies that monitor and improve existing ETL implementations. The chapter assumes you’ve already done your analysis, designed your logical data lineage, and implemented the physical ETL process. It dives right into the details and techniques that should be applied to new and existing ETL jobs to obtain optimal technical performance.
Toward the end of this chapter, you’ll find tips on how to tackle security issues in the data-staging area. We specifically address vulnerability during File Transfer Protocol (FTP) and offer techniques for encrypting and decrypting data in-stream to provide a secure yet efficient environment.
Upon completion of this chapter, you’ll be able to offer expert ETL tuning techniques to your data warehouse team. The techniques offered in this chapter are specific to the data-staging environment and are not intended to be used to optimize the presentation layer of the data warehouse.
If you need information on optimizing the target data warehouse, we recommend that you read Essential Oracle8i Data Warehousing: Designing, Building, and Maintaining Oracle Data Warehouses by Gary Dodge and Tim Gorman (Wiley 2000).
Estimating Load Time
Estimating the initial load of the data warehouse to bring all history from the transaction system into the data warehouse can be overwhelming, especially when the time frame can run into weeks or even months. Throughout this book, we present the extract, transform, and load processes as a complete package, according to the goal of the ETL process in its entirety. However, when you estimate a large initial load, it is necessary to divide the sections of the ETL system into its three discrete processes.
Extracting data from source systems
Transforming data into the dimensional model
Loading the data warehouse
Estimating Extraction Process Time
Surprisingly, extracting data from the source system can consume the greater part of the ETL process. The historic load for the data warehouse extracts an enormous amount of data in a single query and online transaction processing (OLTP) systems are just not designed to return those voluminous data sets. However, the breath-of-life historic database load is quite different from the daily incremental loads.
But in any case, transaction systems are not designed to pull data in the way required to populate fact tables. ETL extraction processes often require overhead-intensive methods such as views, cursors, stored procedures, and correlated subqueries. It is crucial to estimate how long an extract will take before it is kicked off. Estimating the extract time is a difficult metric to calculate. The following obstacles prevent straightforward estimation procedures:
Hardware in the test environment is usually substantially smaller than in production. Estimates based on executions of the ETL processes on the test environment can be significantly skewed because of the hardware difference between the test and production servers.
Since the ETL jobs that extract historic data can take days to run, it is impractical to perform a test run of the complete data set. We have seen projects where an extract job ran and ran until it eventually failed; then it would be restarted and run again until it failed again. Days to weeks went by without an ounce of productivity.
To overcome the difficulties of dealing with massive volumes of data, you need to break the extract process into two smaller components:
Query response time. The time it takes from the moment the query is executed to the moment the data begins to be returned
Dataset retrieval time. The measurement of time between the first and last record returned
Since the initial extract load is likely to be massive, it’s recommended that you take a portion of the data for your estimation. In most cases, the fact table you are loading is partitioned. We recommend that you retrieve enough data to populate an entire fact table partition for your sample. Use a partition worth of data for your sample because database partitions should divide data—more or less—into equal portions and provide a clean benchmark. Once the time to extract one partition is obtained, multiply that number by the number of partitions allocated for the fact table to estimate the total extraction time. The caveat with this method is that it combines the query response time with the data retrieval time, which can skew estimates.
Calculating Query Response Time
The best approach to isolating the two processes is to utilize a query-monitoring tool. Most of the ETL tools have a monitoring tool built into their application. Keep in mind that if you are using an ETL tool, reference tables are loaded into memory before the main extraction begins. Therefore, you need to separate the cache process from the raw extract process as well.
Calculating Data Retrieval Time
Once the extract query starts to return data, begin timing exactly how long it takes to load a portion of the data. Select a portion that makes sense for your situation. If you’ve got 200 million rows to load, perhaps one million would be a good test. Stop the job when exactly one million rows have been loaded and check the elapsed time. Then multiply the elapsed time by 200 (200 million rows total/1 million test rows) to derive the data retrieval portion of the extraction estimate for the entire historic load.
Once the extraction job has been thoroughly tested, insist that the sample job for the estimate is performed in the production environment to prevent skewed results that would occur by running the process in a smaller technical infrastructure.
Estimating Transformation Process Time
One would expect that manipulating data would be a time-intensive effort. Surprisingly, most of the actual transformations of data are done in memory at an amazing rate of speed. Relative to its sister processes, extraction and load, the time it takes to physically transform data can be inconsequential.
If you are using stored procedures that utilize cursors, consider redesigning your system. Depending on your circumstances, it might be best to utilize an ETL tool and minimize the use of database-stored procedures for your transformation processes. Most of the ETL process should be consumed by I/O (physically reading and writing to disk). If the transformation time is not significantly less than that of the extract and load processes, you might have a major bottleneck in your transformation logic.
The easiest way to estimate transformation time is to gather the extract estimate and the load estimate and then run the entire process. Once you have those statistics, subtract the duration of the extract and load processes from the complete process time. The difference is the time spent on the transformation process.
Estimating Loading Process Time
When you calculate the load time, you need to ensure that delays aren’t being caused by the transformation of the data. Even though you may be pipelining the data from the transformation to the load process, for the purpose of the estimate, you need to touch down the data to a flat file after it’s been transformed.
Many variables affect load time. The two most important factors to consider are indexes and logging. Make sure the environment during the test exactly matches the physical conditions that exist in production. Like data retrieval, the data load is processed proportionately. That means you can bulk load a sample data set—say 1 million of 200 million—and then multiply that duration by 200 to derive the complete load time estimate.
Vulnerabilities of Long-Running ETL processes
The purpose of an ETL process is to select data from a source transaction system, transform it, and load it into the data warehouse. The goal of the ETL team is to design efficient processes that are resilient against crashes and unexpected terminations while accomplishing those tasks.
Horizontal versus Vertical ETL System Flows
ETL systems are inherently organized either horizontally or vertically. In a horizontal organization, a given extract-clean-conform-deliver job runs from the start to completion with little or no dependency on other major data flows. Thus, a customer-orders ETL job could run to completion, but the inventory tracking ETL job could fail to complete. This may leave the decision makers in the organization with an inconsistent and unacceptable situation.
In a vertical ETL system organization, several ETL jobs are linked together so that comparable steps in each job run to completion and wait for the other jobs to get to the same point. Using our example, both customer orders and inventory tracking would need to complete the extract step before either would advance to the cleaning, conforming, and especially the delivery steps.
Determining whether your ETL system should be horizontally or vertically organized depends on two big variables in your environment:
1. Detailed data dependencies that require several ETL jobs to progress through the steps in parallel. (That is, if the inventory tracking job fails, maybe the customer-orders job could have undefined product codes.)
2. The sensitivity the end user community might have to partially updated data (for example, orders being updated but shipments lagging by a day)
Analyzing the Types of Failure
Unfortunately, to execute and complete successfully, the ETL process depends on many components. Once an ETL process is in production, failures are typically due to reasons beyond the control of the process itself. Leading causes for production ETL failures include:
Network failure
Database failure
Disk failure
Memory failure
Data-quality failure
Unannounced system upgrade
To familiarize you with the variables in your environment that may pose a threat to your ETL processes, this section discusses each of the ETL vulnerabilities and offers tips on minimizing your risks.
Network Failure
The network is the physical infrastructure that connects all components of the data warehouse. Each server, whether it is for a database or an application, connects via the internal corporate network. With the miles of cabling, routing, and nodes, the risk of network faults always exists. Network failures will never be completely unavoidable, but the ETL can take measures to minimize vulnerability to network failures.
A precaution to reduce your vulnerability is to put the ETL engine on the same server as the target data warehouse database. Obviously, this choice raises the issue of resource contention between ETL jobs and end user queries, but in the realm of minimizing network failures this practice eliminates 50 percent of network traffic because the data can pass from the ETL engine to the target data warehouse on the internal bus of the server. In many cases this co-residency makes sense if conventional data warehouse querying happens during the day while ETL processes take over most of the system resources at night.
Database Failure
Remember, the initial load does not only happen at the beginning of the data warehouse implementation. If you have an enterprise data warehouse implemented using the Data Warehouse Bus Architecture, each phase of the data warehouse requires an initial load. Each data mart needs to have historic data loaded into it before it is loaded incrementally.
A physical database failure is known as unscheduled downtime. With today’s available technology, where virtually everything is redundant, unscheduled downtime can and should be avoided. Make sure you have a comprehensive Service Level Agreement (SLA) that specifies your unscheduled downtime rate requirements.
Moreover, a database does not have to be physically down to be perceived as down. One of the goals of the ETL team is to conduct the required processes to load the data warehouse yet remain transparent to users. If an ETL process has a table locked or has the temp space pegged, the experience by the user is a failure. Perceived database failures are as detrimental to the reputation of the data warehouse as physical failures.
Disk Failure
The storage of data in the data warehouse is perhaps the most vulnerable component of the data warehouse to all potential points of failure. Typically, three disk groups are involved in the ETL process:
Source system disk. Typically, the ETL process merely reads data from the source system disk and risk of failure is minimal. However, use extra caution while extracting the initial history from the system. An extract with many years of history can be a quite large data set. If you run complex extract queries with multiple joins and order by or group by clauses, you may exceed the disk space allocated for these types of operations. To reduce your vulnerability, work with the source system DBA team to monitor temp-space usage while you perform test runs of the history load process. Make sure ample space is allocated before you run the whole process.
Staging area. The staging area is the workbench of the ETL process. Generally, it contains a number of staged files representing different steps in the flow of data from the source to the final dimensional targets. Data would normally be staged immediately after each of the major steps of extracting, cleaning, conforming, and preparing for delivery. The process reads and writes to this area for several reasons, including for data persistence and safekeeping, as well as a holding cell for data in the midst of transition. The data-staging area can be the size of the source system and the data warehouse combined. However, this is rarely the case. But keep in mind that the possibility is there and that the data-staging database is often off the radar for the data warehouse and DBA teams. As a precaution, periodically check the available space in the data-staging environment to ensure you are not running too low.
Data warehouse storage. The data warehouse can grow much faster than initially anticipated. Quite often, space for indexes and temp space is underestimated and allocated space is exceeded. When the ETL process tries to write to unallocated disk, the process crashes. It is very difficult to recover from errors that involve disk space. To prevent running out of space, you need to lie to your DBA team and exaggerate the volumetric estimate of the initial load and three-month size estimate of the data warehouse. We used to double our estimates, but now, after a few close calls, we triple our volumetric to be safe. We recommend tripling the estimate of your initial load to avoid potential catastrophe. Trust us; the space will not go to waste.
It is not enough to simply measure various storage capacities and utilizations. The ETL team should monitor these numbers regularly and do something when the alarm thresholds are reached. We have seen alarms set at 90 percent of capacity, but then the warning gets ignored for six weeks. Boom!
Memory Failure
Memory can fail in any of the three environments:
Source system
Staging area
Data warehouse
These environments are equally vulnerable to overloading their allocated memory and failing the ETL processes. A memory overload will not necessarily crash your process, but it will slow it down tremendously when it starts to utilize virtual memory—when the operating system writes data intended to be in random access memory (RAM) to disk. Make sure you consult with your ETL application vendor to obtain recommended cache settings for your particular history load.
If you have a hardware breakdown, you’ll need to correct the problem and restart your process from the beginning (unless your ETL tool can recover gracefully).
Temp Space
Temp space is the area of the database used whenever you sort or join data. Temp space is often blown out when data warehouse type queries are run on a database environment set up for transactional processing. Fear of blowing out temp space is one of the primary reasons that historic data should be extracted from the source system into a staging area in its simplest form and then transformed further in the dedicated staging environment. If you fill up the temp space in any of your database environments, your process will stop dead.
When temp space failures arise, the DBA team needs to allocate more space, and the process must be restarted. Depending on where and when the temp space failure occurs, data cleanup is almost always required. Since the data warehouse is designed for queries, temp space should be plentiful. The issue typically occurs in the source system environment, where the ETL team unfortunately does not have any control.
Data Space
In the data warehouse, data should be stored separately from indexes to alleviate contention and lessen the burden of managing space. A practical solution to estimate the size of your historic load is to load a small sample of data. Loading a single partition of a partitioned table is a good benchmark. Then you can multiply the amount of space consumed by loaded data by the number of partitions in your table. Chapter 4 illustrates a volumetric worksheet that provides more information on estimating data space.
Make sure the data-staging databases and data warehouse databases have ample space available to load your historic data before the massive load is kicked off. Running out of disk space is an ungraceful failure that requires manual data cleanup and a restart of the load process.
Index Space
Estimating space for indexes is a tricky science because indexes do not grow proportionately like table data. We won’t go into too much detail on index space; the calculations are fairly complex, and the data warehouse architect, data modeler, and DBA should have the index space created appropriately in the data warehouse before you start. As a rule of thumb, make sure there is at least as much space allocated for the indexes as there is for the base table.
When you load voluminous historic data, drop the target table’s indexes before the load begins; and rebuild them after the load completes. By dropping and rebuilding the indexes, not only does performance improve, but you are insulated from load failure if the index space runs out of room. Once the table is loaded, you can always allocate more space to the indexes and rebuild them without affecting the data in the table.
Flat File Space
Just as the space allocated for data in a database can be exceeded, space on your file system must be monitored to avoid exceeding the space allocated to your flat files. Fortunately, the space requirement in the staging area is allocated according to the ETL team requirements, so if you’ve followed the recommendations for estimating file system requirements in Chapter 4, you should be in a safe position for processing your historic loads. Some robust ETL tools include a checkpointfeature that guarantees that any record to reach a certain point in the process is written to disk for safekeeping. But remember, those checkpoint files are written to the file system and might well be the culprit that is filling up your file space. Checkpoint, cache, hash, flat, temporary, or any intermediate data staging file can fill your disk space. If you exceed allocated space and your process crashes for any of these files, it is recommended that you begin the process from the beginning once additional space has been granted rather than attempt to salvage already processed data.
Data-Quality Failure
Data-quality failure in production can either be an easily detected catastrophic administrative failure, such as missing fields or referential integrity violations, or it can be a threshold of data-quality warnings reached gradually in the course of a long run. A data-quality failure in production should be an unusual event and generally requires expert intervention. Perhaps the job can run to completion with known unusual data or perhaps the job needs to be backed out and the source data fixed.
Unannounced System Upgrade
Perhaps the only good news about unannounced system upgrades is that they are usually dramatic and obvious. The ETL job hangs. There is often no simple fix at the scrimmage line. If the reason for the suspended job cannot be fixed quickly, provision must be made for rolling back the system upgrade. This situation is no different from any software change; for critical systems, you must perform the most robust regression tests on a test system before installing the changes on your production ETL systems.
Recovery Issues
Whenever a process fails, it is a knee-jerk reaction for the ETL team to try to salvage whatever has been processed up to the point of failure. If you are lucky and are using an ETL tool that has checkpoint functionality, you may be able to restart your process, and it will magically pick-up where it left off when it failed. Notwithstanding vendor claims, we’d be hesitant to rely on checkpoint technology. If a process fails midstream, it’s good practice to clean up the data and begin the process from the beginning. Divide your processes into subsets of data to make recovery issues cleaner and more efficient; instead of reprocessing the entire history load, you merely have to reprocess a single subset of the data.
Minimizing the Risk of Load Failures
Here are some rules of thumb for processing historic data.
Break-up processes. Use dates or ranges or the natural key to break up the process into smaller manageable chunks. In the event of a failure, only that portion of data needs to be reloaded.
Utilize points of recovery. Write data to a flat file for safekeeping after every major intermediate process (for example, upon extract, significant transformation, or once surrogate keys are assigned).
Load in parallel. Not only the data load but also all of the components of the ETL should run in parallel to reduce the time it takes to process data.
Maintain metadata. Operational metadata (for example, the last date loaded or the number of rows loaded) is crucial to detecting the status of each of the components of the ETL during a failure.
Purging Historic Data
When any database application is designed, a matrix is created to track the processes that insert, update, delete, and select the data. The matrix is commonly referred to as a CRUD (Create, Read, Update, and Delete) Matrix. The CRUD Matrix ensures that every entity has a process to perform each of the four ways to manipulate data. While developing application software, it is most common that the $D$ in the matrix is overlooked. That means that the data gets entered and can be changed and read but that there is no formal process for deletion. When no formal process is developed to purge history, one of two things usually happens: Back-end scripts are run against the system to delete the history, or the records stay in the system indefinitely. As you might imagine, neither of these solutions is suitable for a data warehouse.
A purge process must be laid out as each subject area is planned. If volume is relatively small and ten or more years of future data will not affect performance, the ETL need not be developed right away. However, the purge-policy metadata must still be collected and published with the initial implementation.
Archiving data warehouse data should be done by the DBA, not by the ETL team. However, the permanent deletion of data from the data warehouse must be executed by the ETL team. Business rules surrounding deleted data must be enforced by a thoroughly tested and quality-assured ETL process.
Monitoring the ETL System
The business depends on the data warehouse to be refreshed at an agreed interval (or continuously). Failure to fulfill that responsibility puts the reliability and dependability of the data warehouse in question. Therefore, the data warehouse cannot succeed without efficient and persistent data feeds. The ETL team must monitor and evaluate the ETL jobs to ensure they are operating efficiently and the data warehouse is being loaded in an effective manner.
ETL monitoring takes many aspects of the process into consideration. Resources outside the scope of the ETL system such as hardware and infrastructure administration and usage, as well as the source and target environments, play crucial parts in the overall efficiency of the ETL system. Here, we introduce several ETL performance indicators that tell you how well (or not so well) your processes are executing. The indicators are part of operational metadata and should be stored in a repository so they can be analyzed over time by the ETL team.
Measuring ETL Specific Performance Indicators
Those of you with exposure to system or database administration are aware that there are measurements specific to environments captured to ensure that they are performing properly. As you might expect, the ETL system has its own set of performance indicators. ETL indicators are specific to the physical movement and management of the actual data. They are a step below the typical performance indicators. By below, we mean they do not measure at the operating-system level or hardware-resource level but within the ETL process itself.
The measurement most indicative of ETL efficiency is the actual time it takes to process data. Remember: The goal of the ETL system, besides creating quality information, is to load the data warehouse within the allotted load window. But if a job takes 20 minutes to complete, is that good? There’s really no way of knowing unless you know how many records were processed during that time. For example, 20 minutes is fantastic if you are processing 50 million rows but less than adequate if the job processes only 100 rows. Following are ETL-specific measurements that prove to be useful while investigating load performance.
Duration in seconds. This straightforward calculation is the basis of all other calculations. The duration is the difference between the start time and the end time of an ETL process in seconds. For example, if a process is kicked off at 4:00 a.m. and completes at 4:15 a.m., its duration is 900 seconds.
Rows processed per second. This is equivalent to the rows loaded per second calculation, except in cases where the source data is larger than the target, as in the case of aggregate loads. Then it is the same as the rows read per second. A sample calculation of rows per second is 1,000,000 rows processed in 15 minutes (1000000 / (15 * 60)) $=$ 1111.11 rows/sec.
Rows read per second. The row count of the result of the SQL that retrieves the data from the source system divided by the duration in seconds. The data is then fed through the downstream transformation processes in the ETL pipeline where the row count can increase or decrease depending on the process.
Rows written per second. The count of rows committed to the target table after they have been transformed, divided by duration in seconds. In cases with multiple target tables, it is the sum of all rows inserted into all tables divided by duration in seconds. The rows written can be greater or less than the rows read.
Throughput. Throughput is the rows processed per second multiplied by the number of bytes in each row. Throughput, as with all performance measurements, is an approximation that should be used as a baseline for improving processes.
Most of the major ETL tools provide the necessary metrics to measure the performance of the ETL. You should instrument your ETL system to trigger an alert for any ETL job that takes dramatically more or less time to run than the historical experience would predict.
Bottlenecking occurs when throughput of a process diminishes due to a component of a process not being able to handle the output volume sent by a prior component in the process stream. For example, a bulk loader can feed 1000 rows per second to disk, but the disk may write only 800 rows per second. Therefore, throughput bottlenecking occurs at the disk component of the process. As a result, the entire process can be only as fast as its slowest component.
Measuring Infrastructure Performance Indicators
The next component to examine is the infrastructure of the data-staging area. Many process metrics are available through different monitoring software packages or can be written to logs in hand-coded ETL solutions. Only a few vendor solutions intentionally offer direct indications that ETL performance is being affected. The crucial measurements for ETL performance can be obtained only by monitoring the processes as they run. Measurements that offer a direct indication that there may be a bottleneck in the process include the following:
CPU usage
Memory allocation
Server contention
Naturally, network traffic and other known infrastructure performance indicators can affect ETL performance. Unfortunately, their measurements are so volatile that they are not stable or consistent enough to use reliably. Moreover, the origin of network traffic is extremely hard to identify or duplicate in a test environment. If you suspect that you are experiencing network issues, contact your network administrator for assistance.
CPU Usage
The ETL process runs on the central processing unit (CPU) of its server. CPUs are processors or chips that actually facilitate the computations required to operate the computer, make software run, and accomplish the ETL goals. Most ETL servers contain more than one processor to handle the enormous amount of computations required for the extraction, transformation, and load of data warehouse data. You are not likely to find CPU-usage reporting within your ETL tool, as it is outside the scope of the ETL system. However, if you are running your process on Unix, you can use the SAR –u command to list the usage of each processor in your system.
On Windows-based operating systems, you can use the Performance Monitor, a graphical user interface that allows you to add new counters to the already available performance logs. In Windows XP, the Performance Monitor can be found in the Administrative Tools applet in the Control Panel. To add a new counter, open the Performance Monitor, right-click the System Monitor Details pane, and then click Add Counters. From there you can select Processor as the performance object and select the relevant counters. The Performance Monitor will create a log file that captures statistics of your CPU usage for analysis.
If you find that your CPUs are often reaching their capacity during the ETL process, you need to add possessors. These CPU monitoring utilities also help you to reveal if the ETL process is being distributed evenly across all available processes.
Memory Allocation
Random access memory (RAM) can be allocated to an ETL process in many different places. First of all, the memory has to be physically available on your server. If you are purchasing an ETL tool, your vendor should be able to provide hardware specifications and recommend how much RAM you are likely to need to process your load volume with their toolset. Once the RAM is installed in your server, the memory must be allocated to your processes. In most ETL tools, memory usage can be specified at the job or batch level as well.
You must have appropriate memory allocated to each ETL process for ultimate efficiency. If your process is constantly reading and writing to disk instead of processing data in memory, your solution will be much slower. Appropriate memory allocation in your process affects transformation performance more than any other setting, so take extra care to ensure the setting is correct.
Your ETL tools should be able to tell you how much memory is allocated to each process, how much the process actually uses, and also how much spills over to virtual memory (cached to disk). Make sure this operational metadata is provided by the ETL tool during your proof-of-concept. If much of the data that should be in RAM is getting written to disk, you need to allocate more memory to the process or to get more physical memory installed on your server.
Some ETL tools make memory management completely transparent to the development team, while others might require certain configurations to be set manually. Memory settings that can be found in some of the major ETL tools include:
Shared memory. When ETL engines read and write data, they use a dedicated area in memory called shared memory. Shared memory is where data queues up before it enters or exits the physical transformation portion of the ETL process. If not enough shared memory is allocated to your job, excessive disk caching occurs. Conversely, if too much shared memory is allocated, an unnecessarily large amount of RAM is reserved and taken away from other processes. Your ETL vendor should provide guidelines on how to calculate optimal shared memory settings depending on the size of the data being processed. Some ETL engines may attempt to manage shared memory dynamically. Look for a tool that allows you to override the system-assigned setting for special situations that the engine may not be able to assess.
Buffer block size. The buffer block setting is a key element to consider when allocating performance-related settings. The proper setting of buffer block size depends on the row size of the data in the transformation stream. If your tool requires or allows custom adjustments to the buffer block size, your ETL vendor can recommend calculations for optimal settings.
When a program requires more RAM than is physically available, the operating system (or application) writes data that doesn’t fit into memory onto disk. As the overflowed data is needed, the program must read from and write to disk instead of utilizing RAM. Virtual memory is commonly referred to as page swapping because memory is stored in pages and as more pages are required, they are swapped between disk and RAM. Page swapping is a performance killer and should be avoided during ETL processing. If continual page swapping is detected, more RAM must be added to the ETL server and process.
If you opt—at least for the time being—to hand-code the ETL, you can manually monitor memory usage with the vmstat command. Among other key measurements, the vmstat command reports virtual and real memory usage as well as paging activity and disk operations.
Server Contention
Another potential performance killer is server contention. Contention occurs when more than one process attempts to use the same resource. You can encounter contention for memory, disk access, or data access. The most common offender of contention is when two ETL processes try to access the same data. The ETL processes can cause deadlocks. A deadlock happens when process A attempts to lock out process B while process B attempts to lock out process A, and the system simply hangs. Usually, the DBMS does a good job at managing data-access contention, but it will happen at some point in an ETL developer’s career. The ETL system is most vulnerable to server contention when ETL processes run concurrently but not in parallel. When this happens, the processes constantly compete for resources, and collision is imminent. Your best defense is to avoid concurrent processes unless each process has dedicated process streams and appointed data partitions.
Memory Contention
When many applications or processes are running on the same server, they each need physical RAM to operate. Unfortunately, RAM is a limited resource, and the individual processes must contend for it. If you are running ETL processes concurrently, you may run into memory-contention problems. The memory-allocating settings at the job level become crucial when they are processed concurrently. Each ETL product has its own recommendations for alleviating memory contention. As a rule of thumb, minimize the memory allocated to small jobs, leaving room for larger jobs such as Type 2 slowly changing dimensions, bridge tables, and facts.
The ETL tools should be able to manage memory usage within its tool and avoid memory contention. In any case, the tool should provide the \nobreak{operational} metadata to expose memory contention. If it doesn’t, the Unix SAR command can assist in detecting memory contention. The SAR command is especially useful to detect memory usage of processes running beside the ETL tool and competing for the same RAM. If your process warrants it (and the budget allows it), make sure that the ETL engine is the only process running on your server during the data warehouse load window.
The efficiency of an ETL processes is questioned when it does not complete within the load window. Effective monitoring can usually reveal that most load delays are not the result of ETL inefficiency but of external processes running at the same time as the ETL and competing for server resources.
Disk Contention
Most disks have a limit on the number of accesses and the amount of data they can read or write at any given time. When that limit is reached, the ETL processes have to wait in line to access the disk. If you place many tables loaded concurrently in the same data files on the same disk, hot spots can occur. A hot spot is an area on disk repeatedly accessed for reading or writing. If you are using Oracle, you can use the following SQL to detect hot spots in your source, staging, or target databases:
select d.name datafile_name, f.phyrds reads_count, f.phywrts
writes_count
from v$datafile d, v$filestat f
where f.file# = d.file#
order by greatest(f.phyrds, f.phywrts) desc
Since this query sorts the result set by the number of reads and writes in descending order, the data files hit the most rise to the top. If you have a few data files disproportionately larger than the rest, you need to reconfigure the physical attributes of your staging tables so they are distributed more evenly.
Disk contention occurs outside the database as well. ETL engines utilize temporary fields and implicitly create files to hold transient data. Furthermore, developers explicitly create staging tables, configuration, and parameter files on the file system. Constant reading and writing to these files can cause unwanted disk contention. For information about your disk activity from the operating system point of view, use the IOSTAT Unix command. The IOSTAT command lists each disk and pertinent information:
Name of the disk
Reads per second
Writes per second
Kilobytes read per second
Kilobytes written per second
Average number of transactions waiting for service (queue length)
Average number of transactions actively being serviced (removed from the queue but not yet completed)
Average service time, in milliseconds
Percent of time there are transactions waiting for service (queue nonempty)
Percent of time the disk is busy (transactions in progress)
Information about how to resolve disk contention is provided later in this chapter.
Database Contention
Database contention can be most problematic if the ETL processes attempt to update records in the same table at the same time. Essentially, managing database contention is the job of the DBMS, but at times processes that contend for the same resource can block each other out, causing them to wait indefinitely. Refer to your specific DBMS reference manual or contact your local DBA for the best procedure for detecting database contention.
Processor Contention
Sometimes, an attempt at parallel processing at the software level can cause problems if your hardware is not configured to run parallelized. When you have multiple processes—more than the number of processes available—attempting to run at the same time, you can overload the CPUs and cause critical performance issues. You can use the SAR command on Unix or PerfMon on Windows to capture statistics on the CPU usage.
Measuring Data Warehouse Usage to Help Manage ETL Processes
If you refer to the supply-chain analogy we provide earlier in this chapter, you’ll notice that we’ve identified four key components that lend a hand in transforming raw data to the customer in a useful format for consumption. So far, we have described how to monitor the activity within the scope of the ETL system as well as in the hardware and infrastructure of the ETL environment. Now we outline important measures within the presentation layer of the data warehouse.
The measurements in this section indirectly affect the ETL system but are important to capture and analyze because the do have an impact on the load processes. Hopefully, the measurements in the list that follows soon are already being captured by the data warehouse team to help manage their user experience and prune the data warehouse of data stored but not used.
The ETL team should take advantage of data-warehouse usage reports and look for opportunities to rearrange the load schedule, modify the load frequency, or eliminate the maintenance of jobs that load dormant tables. For example, if a table is accessed only on the first of the month, it should not be updated daily. Another efficiency gain can be achieved by analyzing index usage. A large portion of ETL processing includes rebuilding indexes in the data warehouse after each load. If usage analysis determines that certain indexes are never utilized, their reconstruction should be dropped from the ETL process. Usage metrics that support ETL job management include:
Table usage. The contents of a table-usage report can vary, but a useful report contains a list of each table, a timestamp to represent the first and last time the table is accessed, the count of queries that reference the table, and the count of distinct users that query the table. Tables accessed first should be made available first. Tables used only once a month can be dropped from the daily load process and switched to a monthly frequency. Tables that appear to have continuous usage, except for when the table is being refreshed, are candidates for high availability techniques. Tables highly available have a duplicate structure loaded in the background. Once the load is complete, the names of the two identical structures are switched. This technique leaves the table online while the refresh takes place.
Index usage. Indexes are key performance enhancers for data warehouse tables but are a burden to the ETL because in many cases they must be dropped and rebuilt with each data load. When a data warehouse architect builds the dimensional structures for the presentation layer, he or she has a tendency to index as many columns as possible to prevent bad performance experiences by a user. The fact is that many indexed columns are never constrained on and the indexes are never utilized. An index-usage report reveals dormant indexes whose demise can be negotiated with the data warehouse team.
Aggregate usage. Aggregates are typically built in the same vein as indexes—when in doubt, build it. But just as the case with indexes, some aggregates are built but never utilized. Or over time, they become less interesting and fall dormant. An aggregate-usage report can identify aggregates that are no longer used and should be dropped.
Dormant data. The dormant-data report is always interesting because the data warehouse is created as a result of user interviews that find out what data elements are needed to perform the analysis required to do their job. Yet it’s inevitable that tables refreshed by the ETL every day lay unused. Even if a table is used, certain columns may never be selected. We always find fact table column usage to be interesting because it’s so common to find that the most complicated derived measures are not used because their definitions are not properly conveyed to the user community. A dormant data report can help the ETL team identify and question the effectiveness of measures and dimension attributes that are never selected.
You have several ways to gather statistics on the usage of the data warehouse. Some database management systems offer usage information natively. However, be sure to test performance with the usage-reporting functionality turned off versus having it turned on; it may affect query response and ETL load time. A noninvasive way to track usage statistics is to employ a middleware such as Teleran Technologies (www.teleran.com). These data warehouse monitoring tools capture SQL and data outside of the database at the network-packet level. We’re sure there are other tools that provide database usage statistics. Try typing data warehouse usage tracking in www.google.com to find a list of vendors in this space. Also, a list of monitoring vendors is available at the companion Web site to this book.
Tuning ETL Processes
To best understand how to optimize ETL processes, you must be familiar with how databases work. Some functionality available in most database management systems should not be used in the data warehouse environment. And some features are hardly ever used in transaction systems that are not only applicable but also preferred in the data warehouse environment.
Many design decisions are based on the volume of data being moved by the process being developed. For example, if you have a very small dimension with minimal volatility, it is okay to have your incremental process update the existing data in the dimension with SQL UPDATE statements. But if the dimension is a monster with 20 million rows of highly volatile data, it is probably more efficient to truncate and bulk load the table.
Use the volumetric report created by the data warehouse architect or project manager that documents how much data will be loaded into the data warehouse initially and the planned growth to occur six months after implementation for capacity planning and to identify scalability expectations of the ETL system. Then follow up by documenting the actual growth over time.
The next few sections highlight the functionality of databases that are unnecessary overhead and should be avoided in a controlled ETL environment and provide faster but otherwise equivalent solutions for your implementation.
Explaining Database Overhead
Before relational databases were created, data was stored in sequential or flat files. Those files were known for having notoriously bad data quality. The bad data quality stemmed from repeating groups and elements, lack of primary keys, and no enforced relationships between tables. Everything was repeated throughout the database. Additionally, no validation of data existed at the database level. In those days, a database was nothing more than a collection of disconnected sequential files. In short, the situation was a mess.
In 1970, E. F. Codd invented the relational algebra that served as the basis for the design of relational database systems. Relational databases enforce referential integrity, data uniqueness, primary keys, check constraints, foreign keys, and so on. The result is much cleaner, more reliable data, but much slower operations. Each of the features of the relational database adds significant overhead to transactions. Overhead is additional processing by a program to perform behind-the-scenes error checking and controls.
In this section, we discuss different database features that you are likely to encounter as a member of an ETL team, and we offer suggestions to overcome database overhead. This is not a substitute for DBA training. In fact, the content of this section will not help you become a database administrator. The purpose of this chapter is to help the ETL team and those who are already DBAs to understand special considerations for optimizing ETL processes. Much of the work involved in optimizing the ETL is outside of the database. Portions of this chapter lend some insight into how databases handle large sets of data and offer tips and techniques for speeding up (or avoiding) those processes.
Inserts, Updates, Deletes
Data manipulation language (DML) has four main verbs: select, insert, update, and delete. Each of the four DML utilities has the ability to manipulate data in a database differently. Remember that DBMSs are primarily designed to survive transaction failures. Therefore, as a precaution, virtually every DBMS maintains a rollback log. A rollback log records DML transactions and provides a mechanism to undo changes that occur as a result of a DML submission. In the case of a midtransaction failure, the DBMS automatically rolls back the half-finished transaction, leaving the data in the exact state it was in before the transaction began.
The Effects of Logging
Each of the four types of DML affects the rollback log in a different way. Select statements don’t get written to the log, because they don’t alter the existing data. In most databases, insert statements are written to the log just in case data is inadvertently entered or the transaction fails midstream, the DBMS can simply rollback the entry instead of having to delete or clean it up. Updates and deletes both require writing to the rollback log. Deletes require some overhead because they store the old records before the deletes occur. Updates require the most overhead of all DML statements and are extremely slow to process.
The Effects of Indexes
The data warehouse is utilized because it is substantially faster and more reliable than the transaction system. The speed advantage that the data warehouse offers is due to a number of key features:
Dimensional data model that allows purpose-built indexing of dimensions and facts
Aggressive index strategy
Physically stored aggregate records
Query parallelism
Design techniques and benefits of dimensional data models are sprinkled throughout this book and are available in a wide range of others. In this section, we’d like to talk for a minute about indexes.
Indexes are the backbone of query-response time in the data warehouse. Every query that hits the database utilizes at least one index. Unfortunately, inasmuch as indexes help users query the data warehouse, the ETL team is burdened with managing the existing indexes during the ETL process. Index management accounts for a substantial portion of most ETL processes.
Before we dive into the techniques for managing indexes during the data warehouse load, it’s important that we review the different types of indexes available in most databases. Primarily, you find two types of indexes, and it’s important to understand the distinction between the two types:
B-tree indexes. B-tree, or balanced tree, indexes store the key values and pointers in an inverted tree structure. B-tree indexes are optimal for columns with very high cardinality. By high cardinality, we mean the count of distinct values. Inverted tree structures utilize an extremely effective divide and conquer technique of sifting through data to find a specified value (or range of values). B-tree indexes are great for optimizing known queries but are fairly inflexible at supporting ad-hoc environments such as data warehouses. B-tree indexes are deemed inflexible because you cannot combine indexed columns on the fly to dynamically create compound indexes to resolve new, unexpected queries. All indexes must be made in advance. The DBA must attempt to guess which columns might be constrained. Moreover, the order in which the columns are positioned determines whether they are utilized or not. The result is the DBA team must make many, many compound B-tree indexes, many containing the same columns in different orders.
Bitmap indexes. Bitmap indexes function completely different from B-tree indexes. Bitmap indexes are better suited for lower cardinality columns. Many single column bitmap indexes can dynamically join together to create necessary compound indexes to support ad-hoc queries. Because of their flexibility, it is common practice to create single-column bitmap indexes on each surrogate key in fact tables in the data warehouse.
Now we want to turn back to how indexes affect DML transactions. Every entry of a B-tree index contains one, and only one, rownum that points back to the corresponding record in the base table. Conversely, bitmap indexes contain a range of rownums for each value in the index. If a value is updated, every record that corresponds to the range of rownums is locked. Ultimately, each time a record is updated, a tremendous burden is put on the database to manage all of the row locking going on. Unfortunately, fact tables usually consist only of bitmap indexes, and doing massive updates creates massive headaches because of the excessive overhead and extremely poor performance.
In conclusion, it’s recommended to drop all bitmap indexes before you begin to manipulate data in fact tables. It’s further recommended to partition fact tables so you have to drop only the local index in the current partition (assuming the table is partitioned on the date key). B-tree indexes are not excluded from being dropped before the ETL process executes. Statistics show that in most cases, dropping data warehouse indexes, loading the tables, and rebuilding the indexes is substantially faster than loading tables with scores of indexes enabled.
Addressing Constraints and Foreign Keys
Foreign keys in relational DBMSs enforce integrity in data between tables. For example, you cannot enter an order status unless that status is an existing valid value in the order status table. But in the data warehouse, the transaction has already occurred and has been validated by the source system.
In a nutshell, all foreign keys and constraints should be disabled in the data warehouse, especially during the ETL process. Convincing the DBA team that it is okay to drop foreign keys can be a political challenge. You must walk through the ETL process with the DBA team and explain that fact records simply cannot exist without getting the surrogate keys from their associated dimensions. Also, point out that dimension natural keys are looked up to ensure they are not inserted more than once. Once the DBA team is convinced that the ETL is truly a controlled and managed environment, they realize that database constraints and foreign keys are superfluous elements that slow down the ETL process without offering much benefit.
The fastest way to load data into the data warehouse is to enable the database to bulk load it by following these four database-preparation steps:
1. Eliminate as many DML statements as possible.
2. Disable rollback logging.
3. Drop all existing indexes.
4. Eliminate database foreign keys and constraints.
Once the four steps are complete, you are ready to utilize the database bulk-load utility. A guide for utilizing bulk loaders can be found in Chapter 7.
ETL System Security
Database security in the data-staging area is much simpler to enforce than in the data warehouse presentation database. Generally speaking, no one is allowed to read or write to the data-staging area besides the ETL engine or program. Most databases utilize roles and users to enforce security at the database level. A role is a mechanism that allows a security administrator to group together many users that require the same database-access privileges. Each user has his or her own userID and authentication mechanism. When the user is authenticated to the system, he or she is handed the privileges associated with his or her role.
Without roles, a security administrator would have to explicitly grant every person appropriate privileges individually. A user is an individual that uses the database.
Typically, it is sufficient to create a single data warehouse administrative role with the following privileges:
Select, Insert, Update, and Delete all objects
TRUNCATE TABLE
Utilize bulk loader
Drop and create indexes
If there is highly sensitive data, such as compensation rates or sales leads, the data should be encrypted by the source system before it is extracted by the ETL team. Normally, column-level security is handled by the use of database views that sit on top of a table and conceal the sensitive columns. However, the ETL team must have the ability to select data from the source system and also be able to perform any DML required in the data warehouse. Therefore, views are not an appropriate mechanism for hiding sensitive data. Furthermore, the ETL team should not be responsible for encrypting sensitive data. Securing or encrypting sensitive data from the ETL team is the responsibility of the source system security administrator.
Securing the Development Environment
In the development environment, everyone on the ETL team is granted the privileges of the DWETL role (all DML and TRUNCATE on all objects and so forth). This is where all staging tables are created. Even though the data-staging area is owned by the ETL team, sometimes table creation is controlled by the data warehouse architect or DBA. In some cases the ETL architect has the authority to create tables in the data-staging area without further approval.
Furthermore, any ETL team member can add, delete, or modify files in the dedicated directories on the file system. No one outside ETL team should have access to data-staging environments.
Securing the Production Environment
The ETL team typically has read-only access to production. Sometimes, in very secure environments, such as banking, they have no access at all. The DWETL role exists in production, but the only the user ID and password used by the ETL engine is created in production. If for some extreme reason, an ETL team member must have write access to production, such as to fix a bug that exists only in production, it should be granted temporarily and revoked as soon as the fix is complete.
FTP Vulnerabilities
You must lock out everyone from the FTP inbox. Only the FTP process can write or delete within the specified directory. Moreover, only the ETL engine is allowed to read the directory. If there is an emergency situation, temporary access should be granted to a predetermined administrator whose privilege is revoked as soon as the issue is resolved.
Encryption/Decryption
The biggest performance inhibitor is writing to and reading from disk (I/O). However, you must encrypt data in movement for security purposes. Usually, the following steps are followed to secure data in movement:
1. Encrypt data and store encrypted data on disk.
2. Read and transfer encrypted data across networks.
3. Store encrypted data on data-staging server.
4. Decrypt data and store on disk.
5. Transform and load decrypted data into data warehouse.
It may be possible to reduce this to three steps by encrypting the source data as it is read into memory, then transferring the encrypted data, and finally decrypting the data as it enters the transformation and load routines.
As you can see, the second solution does not touch the disk from the time the data is read until it is loaded into the data warehouse. This process is known as in-stream decryption. Some ETL tools support in-stream decryption functionality. If you need to encrypt or decrypt in-stream to improve performance, make sure you select a tool that supports the functionality; otherwise, you can write your own applet in Java. In the case of the Java applet, make sure that your ETL toll can at least embed an external process, such as the in-stream decryption applet, without incurring more I/O.
Short-Term Archiving and Recovery
There are many reasons to keep the various data-staging results from the ETL system. In this book, we have identified needs for short-term restart capabilities, comparisons of day-to-day extracts to detect differences when you don’t have a proper change data capture system, as well as legal and financial auditing requirements. All of these archiving and recovery scenarios should be familiar challenges to the IT staff. Back the data up to your current media and make sure it can be recovered. Make sure you have a believable audit trail that accounts for all accesses and alterations to the data. Make sure the data is physically secure, and protect the archived data as strongly as you protect the on line data.
But what if we are supposed to keep the data for many years?
Long-Term Archiving and Recovery
One of the oaths we take as data warehouse managers is that we will preserve history. In many ways, we have become the archivists of corporate information. We don’t usually promise to keep all history on-line, but we often claim that we will store it somewhere for safekeeping. Of course, storing it for safekeeping means that we will be able to get history back out again when someone is interested in looking at it.
Most of us data warehouse managers have been so busy bringing up data warehouses, avoiding stovepipe data marts, adapting to new database technologies, and adapting to the explosive demands of the Web that we have relegated our archiving duties to backing up data on tapes and then forgetting about the tapes. Or maybe we are still appending data onto our original fact tables and we haven’t really faced what to do with old data yet.
But across the computer industry there is a growing awareness that preservation of digital data is not being done yet, and that it is a serious problem and a hard problem.
Does a Warehouse Even Need To Keep Old Data?
Most data warehouse managers are driven by urgent needs of departments like marketing, who have very tactical concerns. Few marketing departments care about data that is more than three years old, because our products and our markets are changing so quickly. It is tempting to think only of these marketing clients and to discard data that no longer meets their needs.
But with a little reflection we realize we are sitting on a lot of other data in our warehouses that absolutely must be preserved. This data includes:
Detailed sales records, for legal, financial, and tax purposes
Trended survey data where long-term tracking has strategic value
All records required for government regulatory or compliance tracking
Medical records that in some cases must be preserved for 100 years!
Clinical trials and experimental results that may support patent claims
Documentation of toxic waste disposal, fuel deliveries, and safety inspections
All other data that may have historical value to someone, sometime
Faced with this list, we have to admit that a plan is needed for retrieving these kinds of data five, ten, or maybe even 50 years in the future. It begins to dawn on us that maybe this will be a challenge. How long do mag tapes last, anyway? Are CD-ROMs or DVDs the answer? Will we be able to read the formats in the future? We have some eight-inch floppies from just a few years ago that are absolutely unrecoverable and worthless. All of a sudden, this is sounding like a difficult project.
Media, Formats, Software, and Hardware
As we begin to think about really long-term preservation of digital data, our world begins to fall apart. Let’s start with the storage media. There is considerable disagreement about the practical longevity of physical media like mag tapes and CD-ROM disks, with serious estimates ranging from as little as five years to many decades. But, of course, our media may not be of archival quality, and they may not be stored or handled in an optimum way. We must counterbalance the optimism of vendors and certain experts with the pragmatic admission that most of the tapes and physical media we have today that are more than ten years old are of doubtful integrity.
Any debates about the physical viability of the media, however, pale when compared to the debates about formats, software, and hardware. All data objects are encoded on physical media in the format of the day. Everything from the density of the bits on the media, to the arrangement of directories, and finally to the higher-level application-specific encoding of the data is a stack of cards waiting to fall. Taking our eight-inch floppies as examples, what would it take to read the embedded data? Well, it would take a hardware configuration sporting a working eight-inch floppy drive, the software drivers for an eight-inch drive, and the application that originally wrote the data to the file.
Obsolete Formats and Archaic Formats
In the lexicon of digital preservationists, an obsolete format is no longer actively supported, but there is still working hardware and software extant that can read and display the content of the data in its original form. An archaic format has passed on to the nether realm. Our eight-inch floppies are, as far as we are concerned, an archaic format. We will never recover their data. The Phoenician writing system known as Linear A is also an archaic format that has apparently been lost forever. Our floppies may be only slightly easier to decipher than Linear A.
Hard Copy, Standards, and Museums
A number of proposals have been made to work around the format difficulties of recovering old data. One simple proposal is to reduce everything to hard copy. In other words, print all your data onto paper. Surely, this will side step all the issues of data formats, software, and hardware. While for tiny amounts of data this has a certain appeal, and is better than losing the data, this approach has a number of fatal flaws. In today’s world, copying to paper doesn’t scale. A gigabyte printed out as ASCII characters would take 250,000 printed pages at 4000 characters per page. A terabyte would require 250,000,000 pages! Remember that we can’t cheat and put the paper on a CD-ROM or a mag tape, because that would just reintroduce the digital format problem. And finally, we would be seriously compromising the data structures, the user interfaces, and the behavior of the systems originally meant to present and interpret the data. In many cases, a paper backup would destroy the usability of the data.
A second proposal is to establish standards for the representation and storage of data that would guarantee that everything can be represented in permanently readable formats. In the data warehouse world, the only data that remotely approaches such a standard is relational data stored in an ANSI-standard format. But almost all implementations of relational databases use significant extensions of the data types, SQL syntax, and surrounding metadata to provide needed functionality. By the time we have dumped a database with all its applications and metadata onto a mag tape, even if it has come from Oracle or DB2, we can’t be very confident that we will be able to read and use such data in thirty years or fifty years. Other data outside of the narrow ANSI-standard RDBMS definition is hopelessly fragmented. There is no visible market segment, for instance, that is coalescing all possible OLAP data storage mechanisms into a single physical standard that guarantees lossless transfer to and from the standard format.
A final somewhat nostalgic proposal is to support museums, where ancient versions of hardware, operating systems, and applications software would be lovingly preserved so that old data could be read. This proposal at least gets to the heart of the issue in recognizing that the old software must really be present in order to interpret the old data. But the museum idea doesn’t scale and doesn’t hold up to close scrutiny. How are we going to keep a Digital Data Whack 9000 working for 50 years? What happens when the last one dies? And if the person walking in with the old data has moved the data to a modern medium like a DVD ROM, how would a working Digital Data Whack 9000 interface to the DVD? Is someone going to write modern drivers for ancient pathetic machines? Maybe it has an eight-bit bus.
Refreshing, Migrating, Emulating, and Encapsulating
A number of experts have suggested that an IT organization should periodically refresh the storage of data by moving the data physically from old media onto new media. A more aggressive version of refreshing is migrating, where the data is not only physically transferred but is reformatted in order to be read by contemporary applications. Refreshing and migrating do indeed solve some of the short-term preservation crises because if you successfully refresh and migrate, you are free from the problems of old media and old formats. But taking a longer view, these approaches have at least two very serious problems. First, migrating is a labor-intensive, custom task that has little leverage from job to job and may involve the loss of original functionality. Second, and more serious, migrating cannot handle major paradigm shifts. We all expect to migrate from version 8 of an RDBMS to version 9, but what happens when the world is taken over by heteroschedastic database systems (HDS’s)? The fact that nobody, including us, knows what an HDS is, illustrates our point. After all, we didn’t migrate very many databases when the paradigm shifted from network to relational databases, did we?
Well, we have managed to paint a pretty bleak picture. Given all this, what hope do the experts have for long-term digital preservation? If you are interested in this topic and a serious architecture for preserving your digital data warehouse archives for the next 50 years, you should read Jeff Rothenberg’s treatise Avoiding Technological Quicksand, Finding a Viable Technical Foundation for Digital Preservation. This is a report to the Council on Library and Information Resources (CLIR). The 41-page report can be retrieved as an Adobe PDF file by linking to www.clir.org/pubs/reports/rothenberg. Very well written and very highly recommended.
As a hint of where Jeff goes with this topic, he recommends the development of emulation systems that, although they run on modern hardware and software, nevertheless faithfully emulate old hardware. He chooses the hardware level for emulation because hardware emulation is a proven technique for recreating old systems, even ones as gnarly as electronic games. He also describes the need to encapsulate the old data sets along with the metadata needed for interpreting the data set, as well as the overall specifications for the emulation itself. By keeping all these together in one encapsulated package, the data will travel along into the future with everything that is needed to play it back out again in 50 years. All you need to do is interpret the emulation specifications on your contemporary hardware.
The library world is deeply committed to solving the digital-preservation problem. Look up embrittled documents on the Google search engine. Their techniques need to be studied and adapted to our warehouse needs.
Summary
In this chapter, we have provided an overview of the operations framework of typical ETL systems. The first half of the chapter was devoted to major scheduling approaches. Most of the second half dealt with managing performance issues as your system grows and gets more complicated. Finally, we proposed a simple framework for ETL system security.
