PART II
CHAPTER 3
Once your data warehouse project is launched, you soon realize that the integration of all of the disparate systems across the enterprise is the real challenge to getting the data warehouse to a state where it is usable. Without data, the data warehouse is useless. The first step of integration is successfully extracting data from the primary source systems.
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
While other chapters in this book focus on transforming and loading data into the data warehouse, the focal point of this chapter is how to interface to the required source systems for your project. Each data source has its distinct set of characteristics that need to be managed in order to effectively extract data for the ETL process.
As enterprises evolve, they acquire or inherit various computer systems to help the company run their businesses: point-of-sale, inventory management, production control, and general ledger systems—the list can go on and on. Even worse, not only are the systems separated and acquired at different times, but frequently they are logically and physically incompatible. The ETL process needs to effectively integrate systems that have different:
Database management systems
Operating systems
Hardware
Communications protocols
Before you begin building your extract systems, you need a logical data map that documents the relationship between original source fields and final destination fields in the tables you deliver to the front room. This document ties the very beginning of the ETL system to the very end. We show you how to build your logical data map in Part 1 of this chapter.
Part 2 of this chapter is a tour of the many flavors of source systems you are likely to encounter. We probe moderately deeply into each one to get you started choosing the right extraction approach.
At the end of this chapter, we introduce the subject of change data capture and deleted record capture. Fifteen years ago we thought that the data warehouse was immutable: a huge write-once library of data. With the benefit of lots of experience in the intervening years, we now know that data warehouses constantly need to be updated, corrected, and altered. The change data capture extraction techniques in this chapter are only the first step in this intricate dance. We need to revisit this subject in the data-cleaning chapter, the delivery chapters, and the operations chapter!
Let’s dive into the logical data map.
Part 1: The Logical Data Map
The physical implementation can be a catastrophe if it is not carefully architected before it is implemented. Just as with any other form of construction, you must have a blueprint before you hit the first nail. Before you begin developing a single ETL process, make sure you have the appropriate documentation so the process complies logically and physically with your established ETL policies, procedures, and standards.
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
The logical data map describes the relationship between the extreme starting points and the extreme ending points of your ETL system.
Designing Logical Before Physical
Diving right into physical data mapping wastes precious time and excludes documentation. This section describes how to develop the logical ETL process and use it to map out your physical ETL implementation. Ensure the following steps are achieved before you start any physical ETL development:
1. Have a plan. The ETL process must be figured out logically and documented. The logical data map is provided by the data warehouse architect and is the specification for the ETL team to create the physical ETL jobs. This document is sometimes referred to as the data lineage report. The logical data map is the foundation of the metadata that is eventually presented to quality-assurance testers and ultimately to end users to describe exactly what is done between the ultimate source system and the data warehouse.
2. Identify data source candidates. Starting with the highest-level business objectives, identify the likely candidate data sources you believe will support the decisions needed by the business community. Identify within these sources specific data elements you believe are central to the end user data. These data elements are then the inputs to the data profiling step.
3. Analyze source systems with a data-profiling{t}ool. Data in the source systems must be scrutinized for data quality, completeness, and fitness for the purpose. Depending on your organization, data quality might or might not fall under the responsibility of the ETL team, but this data-profiling step must be done by someone with an eye for the needs of the decision makers who will use the data warehouse. Data in each and every source system must be analyzed. Any detected data anomaly must be documented, and best efforts must be made to apply appropriate business rules to rectify data before it is loaded into the data warehouse. You must hold open the possibility that the project STOPs with this step! If the data cannot support the business objectives, this is the time to find that out. More on data profiling in Chapter 4.
4. Receive walk-though of data lineage and business rules. Once the data sources have been qualified by the data-profiling step and the final target data model is understood, the data warehouse architect and business analyst must walk the ETL architect and developers through the data lineage and business rules for extracting, transforming, and loading the subject areas of the data warehouse, as best they understand these rules. Full understanding of the data lineage and business rules will not be achieved until the ETL team has encountered all the data realities, but this step aims to transfer as much knowledge as possible to the ETL team. The data-profiling step should have created two subcategories of ETL-specific business rules:
4a. Required alterations to the data during the data-cleaning steps
4b. Coercions to dimensional attributes and measured numerical facts to achieve standard conformance across separate data sources
5. Receive walk-through of data warehouse data model. The ETL team must completely understand the physical data model of the data warehouse. This understanding includes dimensional modeling concepts. Understanding the mappings on a table-by-table basis is not good enough. The development team must have a thorough understanding of how dimensions, facts, and other special tables in the dimensional model work together to implement successful ETL solutions. Remember that a principal goal of the ETL system is to deliver data in the most effective way to end user tools.
6. Validate calculations and formulas. Verify with end users any calculations specified in the data linage. This rule comes from the measure twice, cut once aphorism used in the construction business in New York City. Just as you don’t want to be caught up on a skyscraper with the wrong-size material, you similarly don’t want to be caught deploying the wrong measures in the data warehouse. It is helpful to make sure the calculations are correct before you spend time coding the wrong algorithms in your ETL process.
Inside the Logical Data Map
Before descending into the details of the various sources you will encounter, we need to explore the actual design of the logical data mapping document. The document contains the data definition for the data warehouse source systems throughout the enterprise, the target data warehouse data model, and the exact manipulation of the data required to transform it from its original format to that of its final destination.
Components of the Logical Data Map

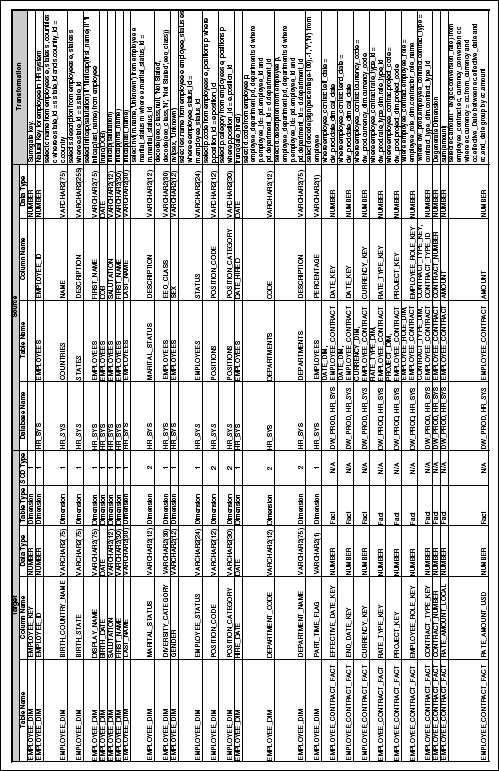

The logical data map (see Figure 3.1) is usually presented in a table or spreadsheet format and includes the following specific components:
Figure 3.1 The logical data map.
Target table name. The physical name of the table as it appears in the data warehouse
Target column name. The name of the column in the data warehouse table
Table type. Indicates if the table is a fact, dimension, or subdimension (outrigger)
SCD (slowly changing dimension) type. For dimensions, this component indicates a Type-1, -2, or -3 slowly changing dimension approach. This indicator can vary for each column in the dimension. For example, within the customer dimension, the last name may require Type 2 behavior (retain history), while the first name may require Type 1 (overwrite). These SCD types are developed in detail in Chapter 5.
Source database. The name of the instance of the database where the source data resides. This component is usually the connect string required to connect to the database. It can also be the name of a file as it appears in the file system. In this case, the path of the file would also be included.
Source table name. The name of the table where the source data originates. There will be many cases where more than one table is required. In those cases, simply list all tables required to populate the relative table in the target data warehouse.
Source column name. The column or columns necessary to populate the target. Simply list all of the columns required to load the target column. The associations of the source columns are documented in the transformation section.
Transformation. The exact manipulation required of the source data so it corresponds to the expected format of the target. This component is usually notated in SQL or pseudo-code.
Columns in the logical data mapping document are sometimes combined. For example, the source database, table name, and column name could be combined into a single source column. The information within the concatenated column would be delimited with a period, for example, ORDERS.STATUS.STATUS_CODE. Regardless of the format, the content of the logical data mapping document has been proven to be the critical element required to efficiently plan ETL processes.
The individual components in the logical data mapping appear to be simple and straight-forward. However, when studied more closely, the document reveals many hidden requirements for the ETL team that might otherwise have been overlooked. The primary purpose of this document is to provide the ETL developer with a clear-cut blueprint of exactly what is expected from the ETL process. This table must depict, without question, the course of action involved in the transformation process.
Take a look at Figure 3.1.
Scrutinizing this figure, you may notice a few revelations that, if they were to go unnoticed, would cause a lot of time troubleshooting and debugging and ultimately delaying the project. For example, you might notice that the data types between the source and target for STATE get converted from 255 characters to 75 characters. Even though the data-scale reduction might be supported by the data-analysis documentation, should any future
values with more than 75 characters be created, you would potentially lose the data. Moreover, some ETL tools would actually abort or fail the entire process with this kind of data overflow error. Notice the transformation notation for the STATE does not explicitly define this data conversion—the conversion is implied. By definition, no one explicitly accounts for implied conversions. Implied conversions are common and notorious for sneaking up and destroying your processes. To avoid calamity, the ETL team must assume responsibility for explicitly handling these types of implied data conversions.
ETL tool suites typically keep track of these implied data conversions and can deliver reports that identify any such conversions.
The table type gives us our queue for the ordinal position of our data load processes—first dimensions, then facts.
Working with the table type, the SCD type is crucial while loading dimensions. As we explain earlier in this chapter, the structure of the table itself does not reveal what the slowly changing dimension strategy is. Misinterpreting the SCD strategies could cause weeks of development time gone to waste. Know exactly which columns have historic relevance and the strategy required for capturing the history before you begin the development of the load process. The value in this column may change over time. Usually during unit testing, when your selected users observe the data in the data warehouse for the first time, they see unexpected results. As hard as the data modeler may try, the SCD concepts are very hard to convey to users, and once they are exposed to the loaded dimension, they quite often want to tweak the SCD strategies. This request is common and should be handled through the data warehouse project manager and the change management process.
The transformation within the mapping is the guts of the process, the place where developers with strong technical abilities look first. But you must constrain yourself from being completely code focused and review the entire mapping before you drill into the transformation. The transformation can contain anything from the absolute solution to nothing at all. Most often, the transformation can be expressed in SQL. The SQL may or may not be the complete statement. Quite often, it is the segment of the code that cannot otherwise be implied from the other elements in the mapping, such as the SQL WHERE clause. In other cases, the transformation might be a method that is not SQL specific and is explained in plain English, like instructions to preload from a flat file or to base the load transformation on criteria outside of the database or to reject known data anomalies into a reject file. If the transformation is blank, this means the mapping is a straight load, from source-to-target, with no transformation required.
Upon the completion of the logical data map, do a comprehensive walkthrough of the document with the ETL developer before any actual coding begins.
Using Tools for the Logical Data Map
Some ETL and data-modeling tools directly capture logical data mapping information. There is a natural tendency to want to indicate the data mapping directly in these tools. Entering this information into a tool that enables us to share this metadata is a good practice. But, at the time of this writing, there is no standard for the appropriate data elements related to logical data mapping. The exact elements available in the various tools differ quite a bit. As the metadata standards in the data warehouse environment mature, a standard should be established for the elements defined in the logical data map. Established metadata standards will enable the tools to become more consistent and usable for this purpose. You should investigate the usability of your current toolset for storing the logical data map and take advantage of any features you have available. However, if your tools do not capture all of the elements you need, you will wind up having the logical data map in several locations, making maintenance a horrific chore. Be on the lookout for vast product improvements in this area.
Building the Logical Data Map
The success of data warehousing stems in large part from the fact that all data is in one logical place for users to perform cross-functional analysis. Behind the scenes, the ETL team integrates and transforms disparate, unorganized data seamlessly and presents it as if it has lived together since the beginning of time. A key criterion for the success of the data warehouse is the cleanliness and cohesiveness of the data within it. A unified data store requires a thorough insight of each of its source data systems. The importance of understanding the data in the data sources, and the systems of the sources themselves, is often overlooked and underestimated during the project-planning phase of the ETL. The complete logical data mapping cannot exist until the source systems have been identified and analyzed. The analysis of the source system is usually broken into two major phases:
The data discovery phase
The anomaly detection phase
Data Discovery Phase
Once you understand what the target needs to look like, you need to identify and examine the data sources. Some or all of the source systems may have been accumulated during the data-modeling sessions, but this cannot be taken for granted. Usually, only the major source systems are identified during the data-modeling sessions. It’s important to note that the data modeler’s main objective is to create a data model. Any logical data mapping derived from the data-modeling sessions is merely a byproduct—a starting point. Moreover, the data modeler spends most of his or her time with end users, so the source systems defined in the logical data mapping may not be the true originating or optimal source—the system-of-record. It is up to the ETL team to drill down further into the data requirements to determine each and every source system, table, and attribute required to load the data warehouse. Determining the proper source, or system-of-record, for each element is a challenge that must be reckoned with. Thorough analysis can alleviate weeks of delays caused by developing the ETL process using the wrong source.
Collecting and Documenting Source Systems
The source systems are usually established in various pieces of documentation, including interview notes, reports, and the data modeler’s logical data mapping. More investigation is usually necessary by the ETL team. Work with the team’s system and business analysts to track down appropriate source systems. In large organizations, you must ask the question “Who else uses this data?’’ and find the data source of each user group. Typical organizations have countless distinct systems. It is the ETL team’s responsibility to keep track of the systems discovered and investigate their usefulness as a data warehouse source.
Keeping Track of the Source Systems
Once the source systems are identified, it makes sense to document these systems along with who is responsible for them. Figure 3.2 is a chart created for this purpose. This chart, the source system tracking report, has saved us many times from having to hunt down system administrators or business owners. If you are lucky, the data modeler will have started this list. Regardless of the originator, the maintenance of the list should be a collaborative effort between the ETL team and the data modeling team. If during your analysis systems are deemed inappropriate as a source system to the data warehouse, leave them on the list with the reason for their omission; they may be used in future phases.
Figure 3.2 Source system tracking report.
The source system tracking report also serves as an outline for future phases of the data warehouse. If there are 20 source systems identified in the list, and phase 1 includes two or three systems, plan to be on the project for a long, long time.
Subject area. Typically the name of the data mart that this system feeds
Interface name. The name of the transaction application that the source system supports
Business name. The name the system is commonly referred to by the business users.
Priority. A ranking or ordinal position used to determine future phases. The priority is usually set after the data warehouse bus matrix has been completed.
Department/Business use. The primary department using the database, for example, Accounting, Human Resources, and so on. If the application is used by many departments, indicate the business use, for example, Inventory Control, Client tracking, and so on.
Business owner. The person or group to contact for issues or questions related to the use of the application or database. This person or group is typically the data steward for the subject area.
Technical Owner. Typically the DBA or IT project manager responsible for maintaining the database
DBMS. The source database management system name. In most cases, it will be a relational database such as Oracle, DB2, or Sybase. It can also be nonrelational data stores like Lotus Notes or VSAM.
Production server/OS. When known, this column includes the physical name of the server where the database lives. It also includes the operating system. You need this column when designing OS level scripts for your ETL. For example, you cannot use UNIX shell scripts when the server is operating on NT.
# Daily users. Gives you an idea of how many operational people in the organization the data is exposed to. This number is not the same as the potential end user data warehouse users.
DB size. The DBA should be able to provide this information. Knowing the raw size of the source data can help you determine the ETL priorities and efforts. Generally speaking, the larger databases tend to be higher on the priority lists because performance is usually lacking when large tables or several joined tables are queried in the transaction system.
DB complexity. The number of tables and view objects in the system
# Transactions per day. Estimate that gives you an indication of the capacity requirements for the incremental load process
Comments. Usually used for general observations found while researching the database. It may include notes about future version releases of the database or reasons why it is or isn’t a system-of- record for certain entities.
Determining the System-of-Record
Like a lot of the terminology in the data warehouse world, the system-of-record has many definitions—the variations depend on who you ask. Our definition of the system-of-record is quite simple: It is the originating source of data. This definition of the system-of-record is important because in most enterprises data is stored redundantly across many different systems. Enterprises do this to make nonintegrated systems share data. It is very common that the same piece of data is copied, moved, manipulated, transformed, altered, cleansed, or made corrupt throughout the enterprise, resulting in varying versions of the same data. In nearly all cases, data at the end of the lineage will not resemble the originating source of data—the system-of-record. We were once on a project where the originally identified source data was four times removed from the system-of-record. In the process between systems 3 and 4, the data was transferred via an algorithm in an attempt to clean the data. The algorithm had an undetected bug, and it corrupted the data by inserting data from other fields into it. The bug was discovered by the ETL team during the data-discovery phase of the project.
Dealing with Derived Data.
You may run into some confusion surrounding derived data. Should the ETL process accept calculated columns in the source system as the system-of-record, or are the base elements, the foundation of the derived data, desired? The answer to this depends partly on whether the calculated columns are addditive. Nonadditive measures cannot be combined in queries by end users, whereas additive measures can. So you may be forced to use the base elements and calculate the nonadditve measure yourself. But be thoughtful. Should you try to recreate the calculations in the ETL process, you will be responsible for keeping the calculations synchronized and for understanding the business rules that define these calculations. If the calculation logic changes in the source system, the ETL process will have to be modified and redeployed. It is necessary, therefore, to capture the calculation as metadata so users understand how it was derived.
Unless there is substantial evidence that the originating data is not reliable, we recommend you don’t sway from our definition of system-of-record. Keep in mind that a goal of the data warehouse is to be able to share conformed dimensions across all subject areas. Should you chose not to use the system-of-record to load your data warehouse, conforming dimensions will be nearly impossible. Should you need to augment your dimensions with different versions of data for specific needs, those should be stored as additional attributes in your conformed dimension.
However, to each rule there is an exception. Identifying the database name or file name may not be as easy as you might think—especially if you are dealing with legacy systems. During a project, we once spent weeks tracking down the orders database. Everyone we spoke to referred to the database by a different name. We then discovered that each location had a local version of the database. Since the goal of the data warehouse was to report across the organization, we began documenting each location database name with the intent to migrate the data with the ETL process. During our research of the database names, a programmer finally came forward and said, “You can get the list of the databases you need by reading this replication program.” To our surprise, there was already a process in place to replicate the local databases to a central repository. Rather than recreate the wheel, we chose to use this program to get the consolidated database name and loaded the data warehouse from the central repository. Even though the true originating source of data was in each location’s database, using the central repository was the most efficient and reliable solution.
The further downstream you go from the originating data source, the more you increase the risk of extracting corrupt data. Barring rare exceptions, maintain the practice of sourcing data only from the system-of-record.
Analyzing the Source System: Using Findings from Data Profiling
Once you’ve determined the system-of-record, your next step is to analyze the source systems to get a better understanding of their content. This understanding is normally accomplished by acquiring the entity relation (ER) diagrams for the systems you’ve selected to be the system-of-record, if they are based on relational technology. Should the ER diagrams not exist (and don’t be surprised if there are none to be found) you may be able to create them. ER diagrams can be generated by reverse engineering the database. Reverse engineering is a technique where you develop an ER diagram by reading the existing database metadata. Data-profiling tools are available that make this quite easy. Just about all of the standard data-modeling tools provide this feature, as do some of the major ETL tools.
Reverse engineering a system of record to get a proper ER model of the data is obviously useful. But it is not the same as forward engineering a complex ER model to build simple dimensional schemas. Data-modeling tools, in fact, fail miserably at this kind of forward engineering when you are trying to see the forest for the trees in a normalized environment with hundreds of tables.
Before diving into the ER diagram, look for a high-level description of the tables and fields in the database. If it exists, it may take the form of unstructured text descriptions, and it may be out of date, but it’s far better to start with an overview than to try to discover the overview by looking at reams of mind-numbing detail. Also, don’t forget to debrief the source-system guru who understands all the arcane logic and incremental changes that have occurred in the source system!
Having the ability to navigate an ER diagram is essential to performing data analysis. All members of the ETL team need to be able to read an ER diagram and instantly recognize entity relationships. Figure 3.3 illustrates a simple ER diagram.

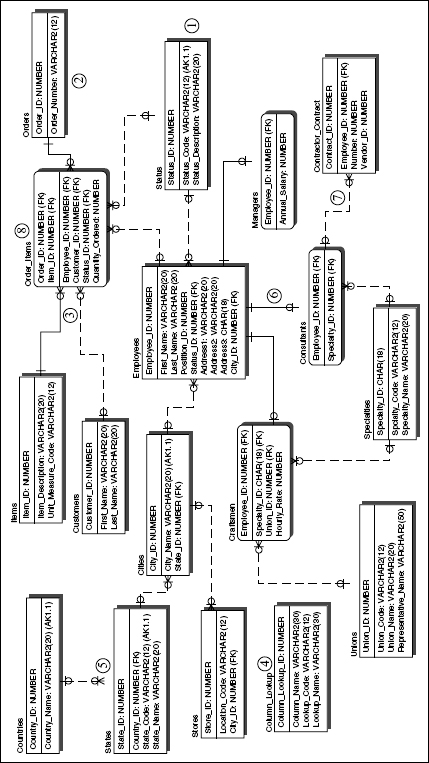

Figure 3.3 Entity relationship diagram.
In the numbered list that follows, we explain the significant characteristics that you want to discover during this phase, including unique identifiers, nullability, and data types. These are primary outputs of a data-profiling effort. But more important, we explain how to identify when tables are related to each other; and which columns have dependencies across tables. Specific characteristics in the ER diagram outlined in Figure 3.3 are:
1. Unique identifiers and natural keys. Unique identifiers depict the columns that uniquely represent a row in a table. This definition can be misleading, so we want to investigate it a bit further. From a referential integrity standpoint, a unique identifier is the primary key for a table. Most of the time, the primary key is artificial, and although it is unique from an ETL standpoint, it is not enough information to determine if the row is unique. In every properly designed transaction table, in addition to the primary key, there is at least one natural key. The natural key is what the business uses to uniquely describe the row. For example, a status table can have a status_id, status_code, and status_description. The status_id is clearly the primary key, but depending on the business rules, for purposes of the ETL, the status_code could be the unique identifier natural key. Special care must be taken when selecting the correct natural keys, especially when loading slowly changing dimensions.
2. {Data types. Remember, as ETL analysts, you take nothing for granted. Column names do not infer data types. Just because a column is named Purchase_Order_Number, are we certain that only numbers, not letters, are stored in the column? Additionally, if there are only numbers, are there leading zeros? Are these zeros important to end users? On a particular project, while building a human resource data mart, we had a source column named SCORE; it was a CHAR(2) data type. In the target, it was a NUMBER data type. As it turns out, the data was approximately 80-percent numbers and the rest were letters (A-D and F). The ETL process needed to convert any letter grades to their numerical equivalent. DATE and TIME elements are notorious for being stored as text. It is up to the ETL process to convert these dates while loading them into the data warehouse.
3. Relationships between tables. Understanding how tables are related is vital to ensuring accuracy in joins while retrieving data. If you are lucky, the ER diagram has lines connecting the related tables. Evaluation of table relationships includes analyzing the connecting lines. Unfortunately, data-processing people are not lucky and it is most likely that you’ll need to look at the diagram a bit closer to determine table relationships. While loading a target table from heterogeneous sources, it is good practice to bring all of the sources into a data-modeling tool and map out the relationships. This integrated ER diagram lends itself to making the logical data map easier to create.
4. Discrete relationships. It is not uncommon for the design of the source system to include a single look-up table that stores all of the static reference data for all of the tables throughout the database. The look-up table contains a column that identifies which table and column the associated group of rows support. This takes time for the unknowing to discover. Carefully document the name of each group of rows and the associated tables and columns. This information will be needed while mapping many of the dimensions.
5. Cardinality of relationships and columns. Knowing the cardinality of relationships is necessary to predict the result of your queries. Using crow’s feet notation, a single line means the cardinality is 1, and only 1 of the same value is allowed. A line and a circle indicate zero or 1 is allowed. The side with 3 lines in the form of a crow’s foot indicates the same value can be repeated many times. In relational databases, all associated tables will be joined in one of the following ways:
One-to-one. You see one-to-one relationships during super-type/sub-type scenarios and the practice of vertical table partitioning. One-to-one relationships can be identified by observing that the relationship is on the primary key of each table.
One-to-many. This is the most commonly found relationship for foreign key references. It is easily identified by noting that a nonkey attribute in a table refers to the primary key of another table. We call this nonkey attribute a foreign key, and we insist that all the foreign keys are good, that is, they are instances of the primary key they point to.
Many-to-many. This relationship usually involves three tables with two one-to-many relationships between them. More specifically, there are two tables with an associative table between them. The center or associative table has a compound primary key and two foreign keys, one to the primary key of one table and another to the primary key of the other table.
Frequently, source systems do not have foreign keys or referential integrity consistently defined in the database dictionary. These issues may also be discovered through simple column-name matching and more comprehensive data profiling.
Be sure you carefully study all data types in your sources, in your intermediate staging tables, and in the final tables to be delivered. It’s quite common for the data modeling team to create data elements that don’t exactly match their source. In some cases, you’ll find data types are purposely mismatched. For example, some designers deliberately make all code fields allow alphanumeric characters, even if the current system uses only numbers and is a number data type. Also, be sure to evaluate the length of each field. In some cases, the target data warehouse can have smaller data lengths or numeric precision than the source database. Smaller data lengths in the target causes data truncation (lost data!). When you see disparities, check with the data modeling team to confirm their intentions. Either await database corrections or get business rules for conversion and truncation routines.
Data Content Analysis
Understanding the content of the data is crucial for determining the best approach for retrieval. Usually, it’s not until you start working with the data that you come to realize the anomalies that exist within it. Common anomalies that you should be aware of include:
NULL values. An unhandled NULL value can destroy any ETL process. NULL values pose the biggest risk when they are in foreign key columns. Joining two or more tables based on a column that contains NULL values will cause data loss! Remember, in a relational database NULL is not equal to NULL. That is why those joins fail. Check for NULL values in every foreign key in the source database. When NULL values are present, you must outer join the tables. An outer join returns all of the rows regardless of whether there is a matching value in the joined table. If the NULL data is not in a foreign key column but is in a column required by the business for the data warehouse, you must get a business rule on how the NULL data should be handled. We don’t like to store NULL values in the data warehouse unless it is indeed an unknown measure. Whenever possible, create default values to replace NULL values while loading the data warehouse.
Dates in nondate fields. Dates are very peculiar elements because they are the only logical elements that can come in various formats, literally containing different values and having the exact same meaning. Fortunately, most database systems support most of the various formats for display purposes but store them in a single standard format (for that specific database). But there are many situations where dates are stored in text fields, especially in legacy applications. The possible variations of date formats in nondate fields are boundless. Following is a sample of the possible variations of the same date that can be found when the date is stored in a text field:
13-JAN-02
January 13, 2002
01-13-2002
13/01/2002
01/13/2002 2:24 PM
01/13/2002 14:24:49
20020113
200201
012002
As you can imagine, it’s possible to fill pages with variations of a single date. The problem is that when the source database system doesn’t control or regulate the data entry of dates, you have to pay extra-close attention to ensure you are actually getting what you expect.
In spite of the most detailed analysis, we recommend using outer join logic when extracting from relational source systems, simply because referential integrity often cannot be trusted on remote systems.
Collecting Business Rules in the ETL Process
You might think at this stage in the process that all of the business rules must have been collected. How could the data modelers create the data model without knowing all of the business rules, right? Wrong. The business rules required for the data modeling team are quite different from those required by the ETL team. For example, the data modeling definition of the status dimension might be something like:
Status Code—The status is a four-digit code that uniquely identifies the status of the product. The code has a short description, usually one word, and a long description, usually one sentence.
Conversely, the ETL definition of status might be expressed like this:
Status Code—The status is a four-digit code. However, there are legacy codes that were only three digits that are still being used in some cases. All three-digit codes must be converted to their four-digit equivalent code. The name of the code may have the word OBSOLETE embedded in the name. OBSOLETE needs to be removed from the name and these obsolete codes must have an obsolete flag set to ‘Y’. The description should always be in sentence case, regardless of the case used when entered into the source system.
The business rules for the ETL process are much more technical than any other collection of business rules in the data warehouse project. Regardless of their technical appearance, these rules still stem from the business — the ETL team cannot be in the business of making up rules. It is up to the ETL architect to translate user requirements into usable ETL definitions and to articulate these technical definitions to the business people in a way they can understand. The ETL data definitions go through an evolution process. As you discover undocumented data anomalies, document and discuss them with the business—only they can dictate how the anomalies should be handled. Any transformations that come from these meetings have to be documented, properly approved, and signed off.
Integrating Heterogeneous Data Sources
The preceding sections of this chapter expose many of the common data systems that you might come across while sourcing your data warehouse. This section discusses the challenges you may face integrating the different data sources. But before you can integrate data, you need to know what data integration means. Integrating data means much more than simply collecting disparate data sources and storing that data in a single repository. To better understand what integration really means, consider a corporate merger. During corporate mergers, one or more companies are joined with other similar (or dissimilar) companies. When mergers occur, the business must decide which company is the surviving company and which gets consumed by the new parent. Sometimes, negotiations are made when the parent company recognizes value in certain practices and techniques of its subsidiaries and incorporates those practices in its modified organization. The result of a successful corporate merger is a cohesive organization that has a single business interest. This requires a heroic commitment to aligning terminology (dimension attributes) and aligning key performance indicators (facts in fact tables). If you think of integrating your data in the same fashion as a corporate merger, the result of your data warehouse is a single source of information organized to support the business interest.
But what about those half-finished mergers that allow their subsidiary companies to do their own thing? This situation causes a problem because the companies are not integrated—they are merely associated. When you build a data warehouse, integration can occur in several places. The most direct form of data integration is the implementation of conformed dimensions. In the data warehouse, conformed dimensions are the cohesive design that unifies disparate data systems scattered throughout the enterprise.
When a dimension is populated by several distinct systems, it is important to include the unique identifier from each of those systems in the target dimension in the data warehouse. Those identifiers should be viewable by end users to ensure peace of mind that the dimension reflects their data that they can tie back to in their transaction system.
What happens when those idiosyncratic dimensions cannot completely conform? Unfortunately, this question is as much of a political issue as a technical one. Conformed dimensions and facts are crucial to the success of the data warehouse project. If the result of your project offers disparate dimensions that are not cohesive across business subject areas, you have not accomplished your goal. Chapter 5 discusses loading dimensions in painstaking detail, but we want to mention specific techniques for loading conformed dimensions in a disparate source system environment here.
1. Identify the source systems. During the data-profiling phase of the construction of the logical data mapping, the data warehouse team must work together to detect the various sources of your target dimensions and facts. The data warehouse architect should uncover most of the potential sources of each element in the data warehouse and attempt to appoint a system-of-record to each element. The system-of-record is considered the ultimate source for the data being loaded.
2. Understand the source systems (data profiling). Once the source systems are identified, you must perform a thorough analysis of each system. This is also part of data profiling. Data analysis of the source systems uncovers unexpected data anomalies and data-quality issues. This phase declares the reliability of the source system for the elements under scrutiny. During this phase of the project, the assignment of the system-of-record can actually be reassigned if data-quality issues persist or if reliability of the data is problematic for any reason.
3. Create record matching logic. Once you understand all of the attributes of all of the entities of all of the systems under consideration (quite a tall order), your next objective is to design the matching algorithm to enable entities across the disparate systems to be joined. Sometimes, the matching algorithm is as simple as identifying the primary key of the various customer tables. But in many cases, disparate systems do not share primary keys. Therefore, you must join the tables based on fuzzy logic. Perhaps, there is a social security number that can be used to uniquely identify your customer or maybe you need to combine the last name, e-mail address, and telephone number. Our intention here is not to offer a matching solution but to get you thinking about how your customers can be linked. The various business areas must be involved with and approve of your final matching logic. Don’t forget to make sure that this record-matching logic is consistent with the various legislated privacy rules, such as HIPAA in the health care arena.
4. Establish survivorship rules. Once your system-of-record has been identified and the matching logic has been approved, you can establish the surviving record when data collisions occur in your ETL process. This means that if you have a customer table in your accounts receivable, production control, and sales systems, the business must decide which system has overriding power when attributes overlap.
5. Establish nonkey attribute business rules. Remember, dimensions (and facts) are typically sourced from various tables and columns within a system. Moreover, many source systems can, and usually do, contain different attributes that ultimately feed into a target final dimension. For instance, a list of departments probably originated in your HR department; however, the accounting code for that department probably comes from your financial system. Even though the HR system may be the system-of-record, certain attributes may be deemed more reliable from other systems. Assigning business rules for nonkey attributes is especially important when attributes exist in several systems but not in the system-of-record. In those cases, documentation and publication of the data lineage metadata is crucial to prevent doubt in the integrity of the data warehouse when users don’t see what they expect to see.
6. Load conformed dimension. The final task of the data-integration process is to physically load the conformed dimension. This step is where you consider the slowly changing dimension (SCD) type and update late-arriving data as necessary. Consult Chapter 5 for details on loading your conformed dimensions.
The beauty of your data warehouse is that it has the ability to truly integrate data, yet also to enable users to see dimensions from their perspective. Conformed dimensions and facts are the backbone of the enterprise data warehouse.
Part 2: The Challenge of Extracting from Disparate Platforms
Each data source can be in a different DBMS and also a different platform. Databases and operating systems, especially legacy and proprietary ones, may require different procedure languages to communicate with their data. On enterprise-wide data warehouse projects, be prepared to have communication with source systems limited to specific languages. Even if there is no technical limitation, departments or subsystems can, and usually do, have a standard language that is allowed to interact with their data. Standards we’ve been asked to use include COBOL, FOCUS, EasyTrieve, PL/SQL, Transact-SQL, and RPG. When a specific language beyond the realm of your ETL toolset or experience becomes mandatory, request that the owner of the source system extract the data into a flat file format.
Connecting to Diverse Sources through ODBC
Open Database Connectivity (ODBC) was created to enable users to access databases from their Windows applications. The original intention for ODBC was to make applications portable, meaning that if an application’s underlying database changed—say from DB2 to Oracle—the application layer did not need to be recoded and compiled to accommodate the change. Instead, you simply change the ODBC driver, which is transparent to the application. You can obtain ODBC drivers for practically every DBMS in existence on virtually any platform. You can also use ODBC to access flat files.
The drawback to ODBC’s flexibility is that it comes at a performance cost. ODBC adds several layers of processing and passing of data to the data-manipulation process. For the ETL process to utilize data via ODBC, two layers are added between the ETL system and the underlying database. Figure 3.4 illustrates the layers involved in an ODBC environment.

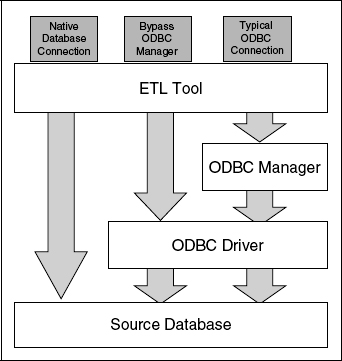

Figure 3.4 The topology of ODBC in the ETL process.
ODBC manager. The ODBC manager is a program that accepts SQL from the ETL application and routes it to the appropriate ODBC driver. It also maintains the connection between the application and the ODBC driver.
ODBC driver. The ODBC driver is the real workhorse in the ODBC environment. The ODBC driver translates ODBC SQL to the native SQL of the underlying database.
As you might suspect, once you use ODBC you might lose much DBMS-specific functionality. Particular non-ANSI standard SQL commands are not accepted by the ODBC manager because it needs to maintain an open solution. ODBC, particularly Microsoft’s OLE DB and .Net providers, have improved significantly in recent years, but for highest performance and native DBMS functionality you should look first to a native database driver. Just don’t throw the baby out with the bath water. ODBC can provide a common format gateway to certain troublesome data sources that are otherwise not easily extracted.
Mainframe Sources
The mainframe computer, created in the mid 1960s, is widely used by most large enterprises around the world. The unique differentiator between mainframes and other computers is the hardware architecture. Nonmainframe, including minicomputers and microcomputers, use their central processing units (CPUs) for virtually all of their processing, including getting data to and from disk and other peripherals. By contrast, mainframes have a special architecture emphasizing peripheral channels that process all input/output, leaving the CPU dedicated to processing only data, such as calculating formulas and balances.
In many large companies, much of the day-to-day business data is processed and stored on mainframe systems (and certain minicomputer systems, such as the IBM AS/400) and integrating data from these systems into the data warehouse involves some unique challenges. There are several characteristics of mainframe systems that the ETL team must be familiar with and develop techniques to handle:
COBOL copybooks
EBCDIC character sets
Numeric data
Redefines fields
Packed decimal fields
Multiple OCCURS fields
Multiple record types
Variable record lengths
The rest of this section discusses these mainframe characteristics and offers techniques for managing them when they are encountered.
Working with COBOL Copybooks
COBOL remains the dominant programming language used on mainframe computers, and the file layout for data is described in COBOL copybooks. A copybook defines the field names and associated data types for a mainframe data file. As with other flat files you encounter in your ETL process, only two data types exist in mainframe flat files: text and numeric. However, numeric values are stored in a variety of ways that you need to understand to accurately process. Likewise, dates are stored simply as strings of numbers (or text) and typically require transformation to be stored in date columns in the data warehouse.
Figure 3.5 illustrates a 70-byte, fixed length record that describes a simple employee record. Notice that the field names are preceded by level numbers. Nesting of level numbers is used to group related fields. COBOL programs can refer to field names at any defined level. For example, a program can refer to HIRE-DATE to capture the full date of hire or HIRE-YYYY if only the year portion is needed for processing.
Figure 3.5 A simple copybook that describes an employee record.
Text and numeric data types are denoted using the PIC clauses. PIC X denotes text fields, while PIC 9 means the field is numeric. Field lengths are specified with numbers following the type. For example, the clause PIC 9(4) indicates a four-byte numeric field, whereas PIC X(15) indicates a 15-byte text field. PIC clauses can be coded alternatively by repeating the X or 9 data type indicator, such as PIC 9999 for a four-byte numeric field.
The data file represented in Figure 3.5 can easily be transmitted via FTP and loaded into the data warehouse because all of the data is contained in display format. But before you try to transfer this file from the mainframe to the data warehouse platform, you need to take a short lesson on the difference between the familiar ASCII character set used on UNIX and Windows platforms and the EBCDIC character set used on the mainframe.
EBCDIC Character Set
Both the legacy mainframe systems and the UNIX- and Windows-based systems, where most data warehouses reside, are stored as bits and bytes. Each byte is made of eight bits, and each bit represents a binary (base-2) digit. The maximum number that can be represented by a byte made of binary bits is 255 (that is, 28-1). Thus, the number of unique characters (for example, A–Z, a–z, 0–9, punctuation, and special characters) that can be portrayed in a system made up of such bytes is 256 (including character 0).
Converting EBCDIC to ASCII
You might think that since both systems use bits and bytes, data from your mainframe system is readily usable on your UNIX or Windows system. But UNIX and Windows systems use the American Standard Code for Information Interchange (ASCII) character set, whereas mainframes use a different set, known as Extended Binary Coded Decimal Interchange Code (EBCDIC). EBCDIC uses more or less the same characters as ASCII but uses different 8-bit combinations to represent them.
For example, take the lowercase letter a. In ASCII, the letter a is character number 97 (01100001), but in EBCDIC, character number 97 is / (forward slash). In EBCDIC a is character 129 (10000001). In fact, none of the common characters are represented by the same character numbers in ASCII and EBCDIC. To use mainframe data on your UNIX or Windows system, you must first translate it from EBCDIC to ASCII.
Transferring Data between Platforms
Luckily, translating data from EBCDIC to ASCII is quite simple. In fact it’s virtually automatic, assuming you use File Transfer Protocol (FTP) to transfer the data from the mainframe to your data warehouse platform. An FTP connection requires two nodes—a host and a client. When an FTP connection is made between systems, the FTP client identifies its operating system environment to the FTP host, and the host determines whether any translation is required when transferring data between the two systems. So when an FTP connection is made between a mainframe and a UNIX or Windows system, the FTP host translates mainframe data from EBCDIC to ASCII as it transfers the data. In addition, FTP adds the special line feed and carriage return characters used to designate the end of a line (or record) of data on UNIX and Windows. FTP also translates from ASCII to EBCDIC if the data movement is from UNIX or Windows to the mainframe.
If you receive mainframe data on magnetic tape cartridge or CD-ROM rather than via FTP, you need to explicitly translate the data from EBCDIC to ASCII on the data warehouse system. This translation can be performed using the UNIX dd command with the conv=ascii switch. For Windows, you can obtain a port of the dd—and many other useful UNIX commands—on the Internet. In addition, commercial products that handle character-translation duties are available. ETL tool suites all handle this conversion. Most robust tools designed specifically for ETL can convert EBCDIC to ASCII on the fly.
If your source data resides on a mainframe system, it is crucial that your ETL tool have the ability to implicitly convert EBCDIC data to ASCII. If at all possible, you want this to occur on the mainframe to avoid any corruption of low values and packed decimals. If data is received via tape or other media, the translation must occur by the ETL tool in the nonmainframe environment. At a minimum, the ETL tool must automatically execute FTP and process files in stream, passing the data directly from the mainframe through the ETL process to the target data warehouse.
As a final point, although mainframes and UNIX or Windows systems use different character sets, translating data from one system to another is a rather simple task—simple, that is, unless your mainframe data has some other traits that are typical of the mainframe world. The next few sections discuss specific characteristics that mainframe data may possess and recommend strategies for managing them during the ETL process.
Handling Mainframe Numeric Data
When you begin to work with quantitative data elements, such as dollar amounts, counts, and balances, you can see that there’s more to these numbers than meets the eye. For one thing, you won’t typically find decimal points in decimal data, because the decimal points are implied. For example, the value 25,000.01 is stored as 002500001. Worse, the value 2,500,001 is stored the same way. So how does the mainframe COBOL program know that 25,000.01 is meant rather than 2,500,001? It’s in the PIC clause. The next section discusses the importance and power of the PIC clause in COBOL copybooks.
Using PICtures

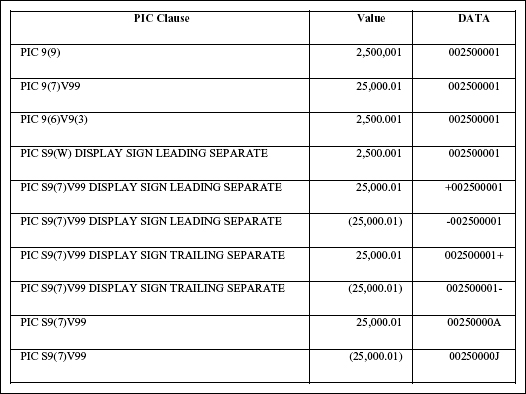

You can see in Figure 3.6 that the PIC clause can give the same data value different meaning. To accurately process a numeric value that comes from a legacy mainframe system, you must first transform it to its display format before transmitting it to the data warehouse system; otherwise, your ETL tool has to handle interpreting these mainframe values on the UNIX or Windows platform. To resolve decimals in the numeric values, you might think that you can simply divide the numeric value by the power of ten equal to the number of implied decimal places. And if all numeric values were stored with only the decimal point implied, you’d be right. However, it’s not quite that simple. You also have to consider signed numeric values. In mainframe data, the signs may come before or after the numeric value. What’s more, the sign may be embedded within the numeric value.
Figure 3.6 The PIC clause in a COBOL copybook indicates the decimal places of a numeric value.
The most common format, zoned numeric, embeds the sign within the last numeric digit as shown in the last two rows of Figure 3.6. So, how does $A$ in the last position connote both the digit 1 and the sign $+$, and likewise, how does J represent both 1 and -? The trick is that the last byte is treated as two separate half-bytes (each containing four bits) and each half-byte is interpreted separately—in hexadecimal, of course!
For positive numbers, the first half-byte is set to $C$, the hexadecimal value of 1100, and negative numbers are set to $D$, the hexadecimal value of 1101. The second half-byte is set to the hexadecimal value that corresponds to the desired numeric digit. When you combine the first half-byte—1100 for positive or 1101 for negative—to the second half-byte, you get resulting EBCDIC characters, as seen in Figure 3.7.

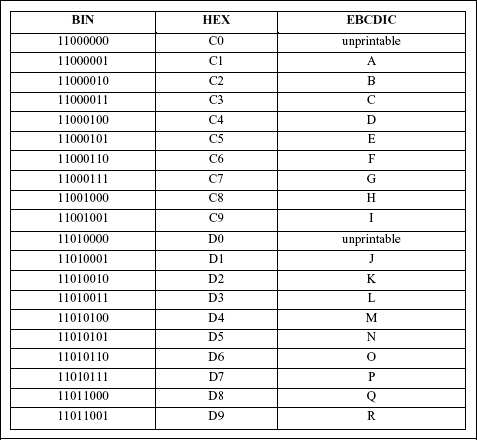

Figure 3.7 Hexadecimal to EBCDIC.
By now, you are probably scratching your head trying to figure out how to deal with numeric data from your mainframe system. Well, before you try to solve the problem, there’s still one more twist that you are likely to encounter in most legacy mainframe systems.
Unpacking Packed Decimals
Though at present computer hard disk storage is relatively inexpensive, in the past disk storage was among the most expensive components of the computer system. To save disk space, software engineers devised creative formats to store numeric data using fewer bytes than the digits in the number. The most pervasive of these formats is COMP-3, also known as packed numeric.
In many mainframe systems, most if not all numeric data is stored in COMP-3 format. COMP-3 format is a simple space-saving technique that uses half-bytes—or nibbles—rather than full bytes to store numeric digits. Each numeric digit can be stored in binary format within the four bits of a nibble. The last nibble of a COMP-3 numeric field stores the sign (positive/negative) of the numeric value. Using half-bytes to store numeric digits saves nearly half the space used by the display format. But this simple space-saving technique throws a wrench into the EBCDIC to ASCII character-set translation.
As a result of this translation conundrum, mainframe data that contains numeric values stored using numeric storage formats such as Zoned Numeric or COMP-3 (not to mention COMP, COMP-1, and COMP-2) cannot simply be translated from EBCDIC to ASCII and then processed on the UNIX or Windows warehouse system.
One of the following techniques must be used to maintain the integrity of mainframe numeric data:
Reformat data on the mainframe into its display format before transmitting it to the data warehouse system using a simple program written in COBOL, Assembler, or a fourth-generation language such as SAS, Easytrieve, or FOCUS. Once data is reformatted in this way, it can then be translated to ASCII via FTP as described earlier in this chapter.
Transfer data to the warehouse system in its native EBCDIC format. This option is viable only if your ETL tools or process can process EBCDIC data. Several types of tools can perform this task.
Use robust ETL tools that can process native EBCDIC, including accurately handling numeric data store in any mainframe-type numeric formats.
Use a utility program that can reformat data into display format on the warehouse platform. If you receive EBCDIC data and are writing the ETL process without the aid of a specialized ETL tool, we strongly recommend purchasing a utility program that can perform the numeric format conversion and EBCDIC-to-ASCII translation duties. Some relatively inexpensive, commercially available programs handle this task quite well.

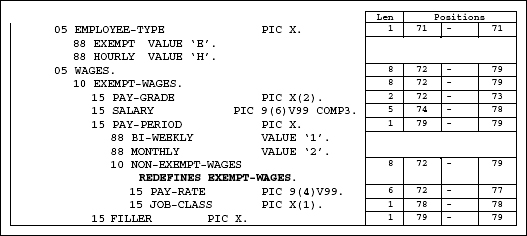

Working with Redefined Fields
Rather than wasting space—remember it used to be expensive—mainframe engineers devised REDEFINES, which allow mutually exclusive data elements to occupy the same physical space. Figure 3.8 contains an excerpt from a COBOL Copybook that helps illustrate the concept of REDEFINES in mainframe data files. The excerpt describes the data fields that represent an employee’s wage information. Notice EMPLOYEE-TYPE, which is a one-byte code that indicates whether the employee is exempt or hourly. Also, notice that two separate series of fields carry the wage information for the employee. The field set used depends on whether the employee is exempt or hourly. Exempt employees’ wages are represented in three fields (PAY-GRADE, SALARY, and PAY-PERIOD), which take up a total of eight bytes. Hourly employees use a different set of fields that take up seven bytes (PAY-RATE and JOB-CLASS).

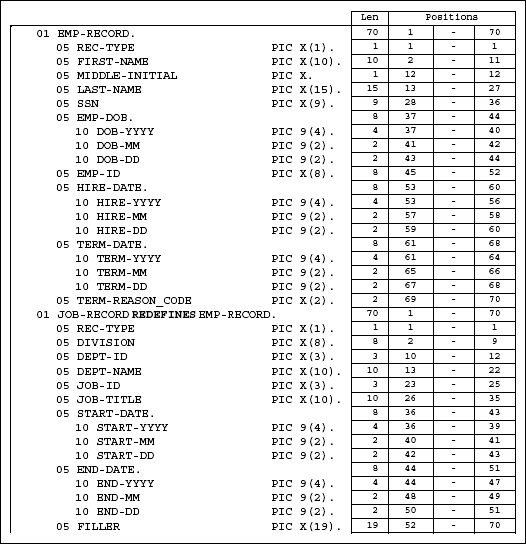

Figure 3.8 REDEFINES clause in a COBOL copybook.
Since an employee is exempt or hourly, never both, only one of the two field sets is ever used at a time. The exempt wage fields occupy positions 72 through 79 in the file, and the hourly wage fields occupy positions 72 though 78. Furthermore, notice that the fields for exempt and hourly wages use different data types even though they occupy the same positions. When reading the employee record, the program must determine how to interpret these positions based on the value of EMPLOYEE-TYPE in position 71.
The same positions can have more than one REDEFINES associated with them, so rather than just two possible uses, the same positions can have two, three, or more possible uses. REDEFINES introduce one further complication that renders mere EBCDIC-to-ASCII character-set translation insufficient.
When you encounter multiple REDEFINES in your sources, you should consider making each definition a separate pass of the extract logic over the source data if the subsequent processing is quite different (using Exempt versus Hourly as an example). This would allow you to build separate code lines for each extract rather than one complex job with numerous tests for the two conditions.
Multiple OCCURS
Mainframe and COBOL precede relational databases and Edward Codd’s normalization rules. Prior to utilizing relational theory to design databases, repeating groups were handled with mainframe COBOL programs that use an OCCURS clause to define data fields that repeat within a data file. For example, in Figure 3.9 you can see an area of an employee record that stores information about performance ratings. The record is designed to keep track of up to five performance ratings. But rather than creating the needed fields five times—remember, this precedes relational theory so there won’t be a separate performance rating table with a foreign key that points back to the employee—they are named only once within a special OCCURS field. The OCCURS clause indicates the number of times the fields within it repeat. Essentially, the OCCURS clause defines an array contained within the file. Thus, in the employee record, data for the first performance rating occupies positions 80 to 99, the second rating from 100 to 119, the third from 120 to 139, the fourth from 140 to 159, and the fifth—and last—from 160 to 179.

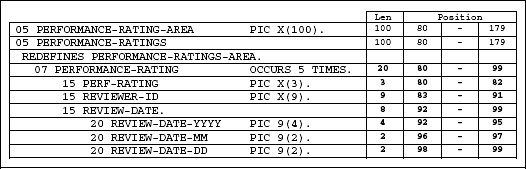

Figure 3.9 COBOL copybook with OCCURS clause to define repeating groups within a data record.
In most cases, the ETL process needs to normalize any data contained in a OCCURS section of a mainframe file. Even though it is possible to manually program the ETL process to manage the repeating data, it is strongly recommended that you use a robust ETL tool that allows you to use the COBOL copybooks to define inputs or at least allows you to manually define input file arrays in some other way. If your tools do not support input arrays, you are stuck with the toil of writing code to deal with repeating groups within records sourced from your legacy mainframe systems.
Sometimes programmers use OCCURS to store different facts in an array, rather than storing the same fact N times. For example, suppose O-DATE occurs four times. The first date is CREATE, the second is SHIP, the third is ACKNOWLEDGE, and the fourth is PAYMENT. So in this case you don’t normalize this OCCURS data but rather create discrete fields for each position in the array.
To ensure data integrity, model data that results from a COBOL OCCURS clause in a normalized fashion—a master table and child table—in the staging area of the data warehouse. It’s good practice to stage this data in separate tables because the result of the process most likely loads data into a fact table and a dimension, two separate dimensions, or two separate fact tables. We find that in these situations it makes sense to set data down to settle before integrating it with the data warehouse.
Managing Multiple Mainframe Record Type Files
The concept of multiple record type files is touched upon in the section that discusses REDEFINES. The main difference between REDEFINES as discussed earlier and what we’re introducing now is that instead of having just a small portion of a record contain multiple definitions, the entire record has multiple definitions. Multiple record types are often used to span a single logical record across two or more physical records. Figure 3.10 contains an extract of a COBOL copybook that illustrates the concept of redefining an entire record.
Figure 3.10 Recognizing multiple record types within the same file.
In Figure 3.10, the REDEFINES clause applies to the entire record. So now, instead of the file carrying only an employee’s basic information, it also carries an employee’s job history with the company as well. In this file, every employee has at least two records: one EMP-RECORD and one JOB-RECORD. When an employee transfers to a new job, a new JOB-RECORD is added to the file. So an employee’s total job history is contained in two or more records on the file: one EMP-RECORD and one or more JOB-RECORD(s).
In this file, the physical order of the records is critically important because the JOB-RECORDs do not have any information to link them to their corresponding EMP-RECORDs. The JOB-RECORDs for an employee follow immediately after his or her EMP-RECORD. So to accurately process the job history of an employee, you must treat two or more physically adjacent records as one logical record.
The benefit of using multiple record types is—once again—to save space. The alternative, without using relational theory, is to have extremely wide, space-wasting records to carry all data in a single record. If, for example, you want to track job history for up to five prior positions, you have to add 255 bytes to each employee record (the base EMP-RECORD, plus five occurrences of JOB-RECORD fields (5 × 51 bytes). But the number of job history field segments is situational—it depends on how many jobs an employee has held.
By using multiple record types, the mainframe system can store job history records only as needed, so employees with only one job require only one JOB-RECORD (70 bytes including FILLER), saving 185 bytes on the file. Furthermore, you are no longer limited to a fixed number of jobs in file. An unlimited number of 70-byte JOB-RECORDs can be added for each employee.
Our employee example has only two record types, but multiple REDEFINES can be used to create any number of record types that can combine into a single logical record. If we expand the employee example, you might imagine a third record type to carry information about the employee’s fringe benefits and a fourth type to carry information about the employee’s family dependents.
The ETL process must manage multiple record types by retaining the values from the first physical record in a set—which is only the first part of the logical record—in memory variables so they can be joined to the rest of the data that follows in subsequent records.
Handling Mainframe Variable Record Lengths
In the previous section, we discuss how information related to a single entity is spanned across two or more records using multiple record types. A variable record length is another approach used in mainframe files to store situational information. Rather than storing the job history of an employee in separate JOB-RECORDs, each job is stored in an OCCURS job history segment. Furthermore, as illustrated in Figure 3.11, instead of the record having a fixed number of such segments, the number of segments varies between 0 and 20, based on the numeric value in the DEPENDING ON JOB-HISTORY-COUNT clause. Each additional employee job, up to a maximum of 20, adds 50 bytes to the length of the record.
Figure 3.11 Variable record lengths in a COBOL copybook using the DEPENDING ON clause.
Variable-length records that use DEPENDING ON clauses in the copybook make straightforward EBCDIC-to-ASCII character-set translation ineffective. The following is a list of ways to mitigate the risk of creating corrupt data from variable-length records during the ETL process.
Convert all data to display format on the mainframe and convert to fixed-length records, adding space at the end of each record for all unused variable segment occurrences.
Transfer the file in BINARY format to the data warehouse platform. This technique requires having tools that can interpret all of the nuances of mainframe data discussed throughout this chapter. Robust dedicated ETL tools handle most or all of these situations. If your data warehouse project does not include such a tool, third-party utility programs are available in various price ranges that can interpret and convert mainframe data on a UNIX or Windows platform.
The last option is to develop your own code to handle all of the known nuances that can occur when dealing with legacy data. However, this option is not for the faint-hearted. The cost in time and effort to handle all of the possible data scenarios would most likely exceed the cost of either developing the reformat programs on the mainframe or purchasing one of the utilities to assist in handling the mainframe data.
Extracting from IMS, IDMS, Adabase, and Model 204
If you use any of these systems, you will need special extractors. For starters, there are ODBC gateways to each of these. It is beyond the scope of this book to discuss detailed extraction techniques for these legacy database systems, but we realize they may be important to some of you.
Flat Files
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
Flat files are the mainstay of any data-staging application. In most data warehouse environments you cannot avoid flat files. Flat files are utilized by the ETL process for at least three reasons:
Delivery of source data. When data is sourced by mainframes or external vendors, it is quite often FTP’d to the data-staging area in flat files. Data that comes from personal databases or spreadsheets is also usually delivered via flat files.
Working/staging tables. Working tables are created by the ETL process for its own exclusive use. Most often, flat files are used because I/O straight reads and writes to the file system are much faster than inserting into and querying from a DBMS.
Preparation for bulk load. If your ETL tool does not support in-stream bulk loading, or you want a load file for safekeeping or archiving, you need to create a flat file on the file system after all of the data transformations have occurred. Once a flat file is created, your bulk load processor can read the file and load it into your data warehouse.
Not all flat files are created equally. Flat files essentially come in two flavors:
Fixed length
Delimited
Processing Fixed Length Flat Files
At times, you cannot access the physical data required to populate the data warehouse from its originating system. In those cases, you need to have a flat file created for you by the programmers who support the source system. Quite often, those files will be fixed length—also known as positional flat files. One of us was once on a data warehouse project that required very complex calculations from the legacy source system. The names of the calculations were given to the data warehouse architect, but the sources and calculations were a mystery. After some time-consuming investigation and detective work, the fields were discovered on a report that was written in COBOL in 1977. Naturally, the programmers that designed the report were no longer with the company. Moreover, the source code was nowhere to be found. As it turned out, the calculations were not so much complex as they were nonexistent.
Unfortunately, telling business users that data could not be derived and would not be available in the data warehouse was not an option. The team’s solution was to redirect the report containing the required data to output to a flat file and use the prederived data from the report as a data source. Because of the nature of the report—fixed columns—it was simply treated as a positional flat file and processed with the rest of the ETL processes.
Processing a fixed length flat file requires a file layout to illustrate the exact fields within the file, as illustrated in Figure 3.12. A fixed length file layout should include the file name, where the field begins; its length; and its data type (usually text or number). Sometimes, the end position is supplied. If it is not, you have to calculate the end position of each field based on its beginning position and length if it is required by your ETL tool.
Figure 3.12 Fixed length flat file layout.
In most ETL tools, you most likely have to manually input the file layout of the flat file once. After the layout is entered, the tool remembers the layout and expects that same layout each time it interacts with the actual flat file. If the file layout changes or the data shifts off of its assigned positions, the ETL process must be programmed to fail. Unfortunately, unlike XML, no implicit validation of the file layout occurs when you process fixed length flat files—an explicit preprocess test must be successful before the data is processed.
When processing fixed length flat files, try to validate that the positions of the data in the file are accurate. A quick check to validate the positions is to test any date (or time) field to make sure it is a valid date. If the positions are shifted, the date field most likely contains alpha characters or illogical numbers. Other fields with very specific domains can be tested in the same way. XML offers more concrete validation abilities. If data validation or consistency is an issue, try to convince the data provider to deliver the data in XML format.
Positional flat files are often indicated on the file system by a .TXT extension. However, positional flat files can have virtually any file extension—or none at all—and be processed just the same.
Processing Delimited Flat Files
Flat files often come with a set of delimiters that separate the data fields within the file. Delimiters are used as an alternative to using positions to describe where fields begin and end. Delimited files can use any symbol or group of symbols to separate the fields in the flat file. The most common delimiter is the comma. Comma-delimited files can usually be identified by the .CSV extension on the file name. Obviously, however, other application-specific delimited flat files may simply have a .TXT extension or no extension.
Most ETL tools have a delimited file wizard that, once the developer indicates the actual delimiter characters, scans the flat file, or a sample of it, to detect the delimiters within the file and specify the file layout. Most often, the first row of delimited files contains its column names. The ETL tool should be intelligent enough to recognize the column names supplied in the first row to assign logical column names in the metadata layer and then ignore the row during all subsequent data processing.
Just as with positional flat files, no implicit validation on delimited files exists. They must have explicit validation tests written by the ETL team and embedded in the data-processing routines.
XML Sources
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean →, Conform → Deliver
Extensible Markup Language (XML) is slowly but surely becoming the standard for sharing data. Much excitement has been generated by this new paradigm that stores data in a well-formed document. After all of its hype, we thought by now virtually all data warehouse sources would involve XML. But so far, we’ve observed that methods for sharing internal data have not changed all that much. On the other hand, methods for sharing external data have radically evolved in the past year or so to become almost completely XML.
XML has emerged to become a universal language for exchanging data between enterprises. If your data warehouse includes data that comes from external sources—those from outside of your enterprise—odds are that those sources will be provided in XML.
To process XML, you must first understand how it works. XML has two important elements: its metadata and the data itself. XML metadata can be provided in various ways. The next section illustrates different forms of XML metadata and what each means to the ETL.
Character Sets
Character sets are groups of unique symbols used for displaying and printing computer output. The default character set for most relational database management systems is ISO8859-15 (Latin 9). The character set supersedes ISO8859-1 (Latin 1) by enabling the euro sign:
The Latin character sets are intended to be used in the Western world to support languages based on the English alphabet. However, since XML is primarily used as a language for the Internet, it must support languages and alphabets from all over the world, not just the Western world. Therefore, XML supports the UTF-8 character set. UTF-8 is a character set that preserves the basic ASCII encoding method and also supports Unicode (ISO10646), the Universal Character Set (UCS). UTF-8 supports most of the languages and alphabets from around the world.
Many problems can arise if the source XML document and the target data warehouse are not based on the same character set. Of course, this flawed synchronization is always a risk when you integrate disparate systems (not just XML data sets). But in most cases, the risk is minimal because with few exceptions database systems use the Latin character sets. Organizations that don’t use Latin-based character sets, but Unicode to support specific alphabets or characters, should adopt an enterprise-wide standard character set to avoid integration difficulties. Whenever you have a requirement to integrate data, especially using XML, from external sources, you must be ready to deal with dissimilar character sets. The good thing is that in XML, you can at least tag the document with the appropriate metadata to indicate the character set being used. For instance, the tag indicates that the XML document is encoded using the UTF-8 character set.
XML Meta Data
We hear quite often that XML is nothing more than a flat file that contains data. In our opinion, that could not be farther from the truth. The only thing that makes XML remotely similar to a flat file is that it is stored on the files system as opposed to in the database. And in fact, many database systems are adding the capability to read, create, and store XML natively, calling themselves XML enabled.
XML is an odd entity because it stores data but is considered a language. It’s not an application; therefore, it is dependent on other applications to make it work. Yet it is not merely data because of its embedded tags. The tags in XML documents are what make XML so powerful. But the self-describing data comes at a cost. The tags, which contain its metadata, can consume 90 percent of the XML file size, leaving about ten percent of the XML file for actual data. If your current flat files were XML, they could potentially be ten times their original size—containing exactly the same amount of raw data.
We find it ironic that a primary objective of data warehousing is to keep data as lean as possible to process it as quickly as possible and that even though XML tags cause a deviation from that goal by adding a considerable amount of overhead to the data processes, many still insist on making it a standard for data exchange. Not only do the tags increase the size of the data files; they also add substantial complexity to them. Because of such inherent complexity, never plan on writing your own XML processing interface to parse XML documents. The structure of an XML document is quite involved, and the construction of an XML parser is a project in itself—not to be attempted by the data warehouse team. There are many XML parsers (or processors) on the market, and most ETL vendors now include them in their product offerings.
Do not try to parse XML files manually. XML documents need to be processed by an XML processor engine. Many of the major ETL tools now include XML processors in their suite. Make sure XML processing capabilities are in your ETL toolset proof-of-concept criteria.
To process an XML document, you must first know the structure of the document. The structure of an XML document is usually provided in a separate file. The next few sections discuss each of the possible metadata files that might accompany your XML and provide the structure of the XML document.
DTD (Document Type Definition)
As someone who views XML as a data source as opposed to a programming language, we equate the DTD to the COBOL file layout. It is a file that describes the structure of data in the XML document or file. Definitions can be embedded within an XML document, but to enable validation, keep the metadata and the actual data files separate. The DTD can be quite complex, incorporating such allowable XML data structures as the following:
Base Data. If an element must contain only data, it is tagged with the #PCDATA declaration.
Element structures. The structure of an element in a DTD is specified by listing element names within an element. For example, indicates that an order line item is composed of the Product ID, the quantity ordered, and the price of the item at the time of the order.
Mixed Content. When either data or elements are allowed, PCDATA is declared to indicate that the base data is allowed and element names are indicated to enable the nested elements.
Nillable. That’s not a typo! In XML, you indicate if a field can be NULL with the ’nill=’ or ’nillable=’ tags. In the DTD, you’ll see a question mark (?) to indicate that a subelement is optional. For example, the code indicates that the first and last name and status are required but the zip code is optional.
Cardinality. One-to-many is indicated by the plus sign (+). For example, means that the customer can have more than one zip code.
Allowed Values. Similar to a check constraint, XML enforces allowed values by listing the acceptable values separated by vertical bars. For example, indicates that the state must contain Alabama, Louisiana, or Mississippi.
At the time of this writing, the XML paradigm is still evolving and changing. Today, the DTD is viewed by many as dated technology. Because XML is evolving into more data-centric roles, similar to relational databases, most likely the DTD will be replaced by XML Schemas as the standard metadata. The next section discusses XML Schemas and how they are different from the DTD.
XML Schema
The XML Schema is the successor of the DTD. XML Schemas are richer and more useful than the DTD because they were created to extend the DTD. An XML Schema allows an SQL CREATE TABLE statement to be defined directly. This is not possible with simple DTDs, because the detailed data types and field lengths are not specified in DTDs. Some features of the XML Schema include the following:
Elements that appear in an XML document
Attributes that appear in an XML document
The number and order of child elements
Data types of elements and attributes
Default and fixed values for elements and attributes
Extensible to future additions
Support of namespaces
Namespaces
XML is growing in popularity because it forces disparate data sources to send consistent and expected data files. But the reality is that different systems always have slightly different meanings and usage for the same elements within an entity. For example, if you receive a customer file from both human resources and operations, they might have different definitions of a customer. One department may deal with organizations, while the other transacts with individuals. Even though both are customers, organizations and individuals have very different attributes. To alleviate this situation, an XML document can refer to a namespace. A namespace indicates where to get the definition of an element or attribute. The same entity can take on a different meaning based on its declared namespace. The same customer entity with the namespace tag http://www.website.com/ xml/HRns> can have different meaning than the same entity referring to http://www.website.com/xml/OPSns>.
Because XML is emerging as the data source for Web-based applications, you will most likely see that increasingly reflected in your data warehouse data sources. When you pick your ETL tool, make sure it can natively process XML and XML Schemas.
Web Log Sources
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
Virtually every company in the world has a Web site. Beneath each Web site are logs—Web logs—that record every object either posted to or served from the Web server. Web logs are important because they reveal the user traffic on the Web site.
A Web log in this section is not a weblog or blog ! Our Web log is a control document automatically produced by every Web server. A blog is a kind of diary maintained and published by individuals, principally teenagers, for anyone to read.
Understanding the behavior of users on your Web site is as valuable as following a customer around a store and recording his or her every move. Imagine how much more organized your store can be and how many opportunities you can have to sell more merchandise if you know every move your customers make while navigating your store. Web logs provide that information. The activity of parsing Web logs and storing the results in a data mart to analyze customer activity is known as clickstream data warehousing.
CROSS-REFERENCE An excellent source for more information on clickstream data warehousing is the book Clickstream Data Warehousing by Mark Sweiger, Mark R. Madsen, Jimmy Langston, and Howard Lombard (Wiley 2002).
From the data-modeling perspective, a clickstream data mart may be no more challenging than any other subject in the data warehouse. The ETL process, however, is significantly different from any other source you’re likely to encounter. The difference is that the source to the clickstream is a text-based log that must be integrated with other source systems. Fortunately, the format of the text-based log is standardized. The standard is maintained by the World Wide Web Consortium (W3C).
W3C Common and Extended Formats
Even though the format of Web logs is standardized, its format and the content can vary. The operating system (OS) of the Web server and the parameter settings that control the log contents affect exactly what is written to the logs. Regardless of the OS, Web logs have a common set of columns that usually include the following:
Date. This field is in a common date format—usually dd/mm/yyyy. If the time zone is adjusted during the ETL process, you must concatenate the date and time and adjust them together; otherwise, you may be a day off. You can split them up again upon loading.
Time. This is the time of the Web hit. The format is HH:MM:SS and is usually set to Greenwich Mean Time (GMT). However, the time zone can be changed. Be sure you know what time zone your Web servers are set to. This usually involves conversion to the local time for the data mart.
c-ip. This is the IP address of the user’s Internet service provider (ISP). It is a standard IP address that can be used for domain name system (DNS) look-up to estimate where the user came from and sessionizing. Using the c-ip can be less than reliable because of known anomalies, such as AOL (the most popular ISP), which gives millions of users the same IP address and indicates that all of their users are from the same state in the United States, even though they might really be from all over the world.
Service Name. This refers to the Internet service that was running on client computer, for example, w3svc1, w3svc2, w3svc3, and so on. This field identifies the site the log came from in environments that host many different Web sites or domains. This field is typically turned off for single-site environments.
s-ip. This is the server IP address. It is standard IP address format. This is useful to identify individual Web servers in a Web farm environment. It also enables analysis of load balancing.
cs-method. There are only two values possible in this field: POST or GET. Only GET records are usually stored in a Clickstream data mart.
cs-uri-stem. This is the resource accessed (that is, the HTML or ASP page requested).
cs-uri-query. This is the query the client passed. This field contains highly customizable, very valuable data. We call this and the cookie (discussed later in this list) the golden nuggets of the Web log. This field typically uses an ampersand (&) as a delimiter between label=value pairs, but any symbol is possible. More on parsing the cs-uri-query is discussed later in the “Name Value Pairs’’ section of this chapter.
sc-status. This is the HTTP status, for example, 302 (redirect), 402 (error), and 200 (ok). A complete list of HTTP status codes can be found on the Web with a search for HTTP status codes. We recommend you preload the HTTP status dimension with all of the possible codes and their descriptions.
sc-bytes. This is the number of bytes sent by the server. This is usually captured as a fact of the Hit.
cs(User-Agent). This is the browser type and version used by the client. The user-agent, along with the date and time, can be used to determine unique visitors.
You can refer to The Data Webhouse Toolkit: Building the Web-Enabled Data Warehouse by Ralph Kimball and Richard Merz (Wiley 2000) for more information on alternative methods on identifying unique users on your Web site.
cs(Cookie). This is the content of the cookie sent or received, if any. This field is the other half, along with the cs-uri-query, of the gold found in the Web log. The cookie is highly customizable and very valuable. It can explicitly identify the user and many other characteristics about the user’s session.
cs(Referrer). This is the URL describing the site that directed the user to the current site.
The following fields are available in the W3C extended format, but it is not an all-inclusive list. For an exhaustive list of the fields available in your environment, refer to your Web server documentation or the W3C Web site (www.w3c.org).
Server Name. This is the name of the server on which the log was generated. This should be one-to-one with the s-ip, which is the IP address of the Web server.
cs-username. This is the username and contains values only when the method is a POST.
Server Port. This is the port number the client was connected to.
Bytes Received. This is the number of bytes received by the user.
Time Taken. This is the length of time the action took.
Protocol Version. This is the protocol version used by the client, for example, HTTP 1.0, HTTP 1.1.
Name Value Pairs in Web Logs
Web logs consist of standard fields that are all distinct in content. For the most part, the content of the Web log can be extracted without too much transformation logic. This straightforwardness is especially true for the date, time, c-ip, service name, s-ip, cs-method, cs-uri-stem, sc-status, and sc-bytes. However, fields such as cs-uri-query and cs(Cookie) are not standard at all. In fact, it would be an extremely rare event to find two unrelated Web sites that have the same content in these fields. The cs-uri-query and cs(Cookie) contain customized name value pairs to capture specific attributes of a transaction that are important to the business.
The cs-uri-query typically contains detailed information about the transaction such as the product being served on the page. Consider the following cs-uri-query as an example:
/product.asp?p=27717&c=163&s=dress+shirt
Take a look at the query string and notice the following segments:
/product/—The initial portion of the query string represents the directory that the executing program resides. The directory is always preceded and followed by a slash ‘/’. In this example, the product.asp program is in the product directory. If the program were in the root directory, a single slash would precede the program name.
product.asp—This is the executing program file that generates the Web page. Common executing programs have the following extensions: .asp (active server pages) and .jsp (java server pages). The program file can be found immediately after directory.
?—The question mark indicates that parameters were sent to the program file. In this example, there are three parameters: p, c, and s.
Before the question mark, the query string is pretty standard. After the question mark is where the custom parameters for the program are stored. A different set of parameters can be defined by the Web site developer for each program file. The parameters are captured in the Web log in name-value pairs. In this example, you can see three parameters, each separated by an ampersand (&).
p indicates the product number
c indicates the product category number
s indicates the search string entered by the user to find the product
The ampersand (&) is the most common delimiter for separating parameters in the Web log, but it is not guaranteed. Make sure you visually scan the logs during your analysis phase to ensure that the parameter delimiters are identified.
Notice in the s= parameter that the search string is written as dress + shirt. Actually, the user entered dress shirt. The + was automatically inserted by the Web browser because HTTP cannot handle spaces. Extra care must be taken when you are processing textual descriptions in the query string. The ETL process must substitute any + in textual descriptions with a before they are used for look-ups or stored in the data warehouse.
The intent of this section is to expose you to Web logs to give you a head start on your clickstream data mart project. Again, if you are deep into a clickstream project or plan to be in the near future, you should invest in either of the two books referenced earlier in this section.
ERP System Sources
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
The existence of an ERP system has an immense effect on ETL system planning and design, as described in this section. This can range from treating the ERP system as a simple arms-length source of data, all the way to having the ERP system be the data warehouse and subsuming all the components, including the ERP system. We make recommendations in this section.
Data Flow: Extract → Clean → Conform (maybe) → Deliver
Enterprise resource planning (ERP) systems were created to solve one of the issues that data warehouses face today—integration of heterogeneous data. ERP systems are designed to be an integrated enterprise solution that enables every major entity of the enterprise, such as sales, accounting, human resources, inventory, and production control, to be on the same platform, database, and application framework.
As you can imagine, ERP systems are extremely complex and not easily implemented. They take months or years to customize so they contain the exact functionality to meet all of the requirements to run a particular business. As noble as the effort to be an all-inclusive solution is, it’s very rare to see an entire enterprise use only an ERP system to run a company.
ERP systems are notoriously large, and because they are really a framework and not an application, their data models are comprehensive, often containing thousands of tables. Moreover, because of their flexibility, the data models that support ERP processing are incredibly difficult to navigate. The more popular ERP systems are SAP, PeopleSoft, Oracle, Baan, and J.D. Edwards.
Because of the sheer number of tables, attributes, and complexity of a typical ERP implementation, it is a mistake to attack these systems like any other transaction source system. Performing system and data analysis from scratch is cost and time prohibitive and leaves much room for error. If your data warehouse sources are from an existing ERP system, it is best to acquire someone with vast experience of the underlying database structure of your specific ERP system as well as the business objectives of the application.
To help you along, many of the major ETL vendors now offer ERP adapters to communicate with the popular ERP systems. If you are sourcing from an ERP system, take advantage of the available adapters. They can help you navigate the metadata in these systems and make sense of the application.
Special Considerations for SAP
Because of the marketplace dominance of SAP as an ERP system, we get asked about the role of SAP in the data warehouse. Here are our unvarnished recommendations.
You have probably heard the cliché that, from a decision-support standpoint, SAP ERP is like a black hole: Rivers of data flow in, but there is no way to get the information back out. Why?
A contemporary SAP ERP implementation is likely to have a data foundation that consists of tens of thousands of physical tables, exhibiting few DBMS-defined table relationships, with entity and attribute names rendered in abbreviated German! Thus, the SAP RDBMS, for all practical purposes, is incomprehensible and proprietary. SAP ERP comes with an extensive library of operational reports, but these typically fall short of fully addressing the decision-support needs of most business communities.
This is not a design flaw. SAP’s OLTP data architecture simply lacks support for fundamental business-reporting needs, such as historical retention of transactions and master data images, comprehensible and easily navigated data structures, and robust query performance characteristics.
Some early SAP adopters tried to free their operational data trapped inside the ERP labyrinth by creating ERP subject areas in their data warehouses, populated via hand-crafted ETL. Predictably, with few specialized tools to assist them in this heroic undertaking, many of these efforts achieved unremarkable degrees of success.
Recognizing this unmet and blossoming need, SAP created a decision-support extension to their ERP application called the Business Information Warehouse (SAP BW). Early generations of SAP BW were rather primitive and consisted mainly of SAP-specialized ETL feeding proprietary OLAP repositories, thus lacking many of the foundational architectural elements of the contemporary data warehouse. Newer releases of SAP BW have evolved considerably and now embrace many of the core tenets and structures of contemporary data warehousing: better support for non-SAP data sources and persistent mainstream data repositories (Staging Areas, ODS, Data Warehouse, Dimensional Data Marts, and OLAP cubes). Some of these repositories support open access by third-party reporting tools.
SAP BW value proposition, at face value, now offers a compelling price and timeframe sales story that is likely to attract the attention of CIOs. And so, the contemporary DW architect will likely be asked to define and defend a role for SAP BW within the corporation’s overall data warehousing vision.
In the following table, we present pros, cons, and recommendations for several SAP BW role scenarios within an overall enterprise DW strategy. We humbly recognize that this is a rapidly evolving area, with many variables, in which few fully satisfactory solutions exist. BW and ETL tool capabilities will change, thereby modifying the decision balances that follow. But we hope nonetheless that our evaluation process will be useful to you and extensible to your unique situation and challenges.
|
BW as Enterprise DW |
Utilize SAP BW as the foundational core of the enterprise data warehousing strategy. |
|
We cannot recommend using BW in this role. Making BW the centerpiece of an enterprise BI architecture seems, at present, to be architecturally indefensible. As of this writing, BW offers no unique capabilities for cleansing / integration of non-SAP data or for the delivery of non-SAP analytics. Also, packaged BI tends to offer reduced opportunity for competitive differentiation through analytic capabilities. |
|
|
Nonetheless, organizations that do not view BI as an area of strategic competitive differentiation and whose reporting requirements are SAP-centric and well addressed by SAP BW might consider using BW in this role. |
|
|
BW on the Dimensional DW Bus |
Utilize SAP BW as a set of satellite data marts that interoperate within a broader distributed dimensional data warehouse bus architecture. |
|
Although this may someday become an appropriate way to utilize BW, we find (as of this writing) that BW is not yet well suited to play the role of an ERP-centric data mart within a broader dimensional data warehouse bus architecture. As we write this book, SAP has announced a facility called Master Data Management that claims to handle cross-functional descriptions of products and customers. It is too early to tell if this offers unique capabilities for either creating enterprise-wide conformed dimensions or for incorporating externally conformed dimensions into its ETL processing stream and presenting its facts accordingly. Utilizing conformed dimensions and facts across subject areas is a core tenet of the dimensional data warehouse bus architecture. |
|
|
Nonetheless, IT organizations that already have dimensional data warehouses and inherit a BW may choose to take on the task of extending BW to utilize externally conformed dimensions, thereby allowing it to plug and play in the bus architecture. Be warned though: Maintenance of these extensions through SAP upgrades may not be a trivial undertaking. |
|
|
ETL and Staging |
Utilize SAP BW as a gateway and staging area for feeding ERP data to a downstream dimensional data warehouse. |
|
This option appears at first to be quite compelling, because it purports to simplify and shorten the work effort to add ERP data into a dimensional data warehouse, while also providing, as a happy benefit, standard BW reporting capabilities for SAP-only reporting. But when comparing this option to the alternative of utilizing a specialized third-party ETL tool with good SAP connectivity (see “Forgo BW’’ as follows), it may no longer be the optimal solution. Using SAP as a data source through the ETL tool extracyors results in a single set of tables for the DW, typically offering greater control, flexibility, and metadata consistency. |
|
|
We recommend this option for implementing your ETL system within SAP only to organizations with immature ETL teams under tight timeframes for ERP reporting, who find great value in the canned SAP BW reports. Others should look seriously at a mature ETL tool with good SAP connectors. See “Forgo BW" that follows. |
|
|
Forgo BW |
Utilize the SAP connectors offered by most good ETL tools to populate fully integrated ERP subject areas within a separate enterprise dimensional data warehouse bus architecture. |
|
We’re big believers in buy versus build, where appropriate. But based on BW’s lack of a track record for either creating or publishing conformed dimensions or utilizing externally conformed dimensions, this is our recommended default BW architectural posture. |
Part 3: Extracting Changed Data
PROCESS CHECK Planning & Design:
Requirements/Realities → Architecture → Implementation → Test/Release
Data Flow: Extract → Clean → Conform → Deliver
During the initial load, capturing changes to data content in the source data is unimportant because you are most likely extracting the entire data source or a potion of it from a predetermined point in time. But once that load is complete, the ability to capture data changes in the source system instantly becomes priority number one. If you wait until the initial load is complete to start planning for change data-capture techniques, you are headed for a heap of trouble. Capturing data changes is far from a trivial task. You must plan your strategy to capture incremental changes to the source data at the onset of your project.
The ETL team is responsible for capturing data-content changes during the incremental load. Desires and hopes are dictated by the users, and the realities of the feasibility of those hopes are revealed by the source system DBA team—if you’re lucky. More often than not, a bit of research will be required to determine the best possible incremental load strategy for your specific situation. In this section, we offer several options and discuss the benefits and weaknesses of each. Naturally, you won’t need all of these techniques for every situation. Choose the practice that best meets each ETL challenge throughout your project.
Determining the appropriate strategy for identifying changed data in the source system may take some detective work. When analyzing source systems, never assume that what you see is what you get. In many cases, there will be unused or disabled audit columns or, even worse, columns used inconsistently. Be sure to allocate enough research time to investigate and determine the best approach to capture data-content changes for your incremental load process.
Detecting Changes
When managers talk about the maintenance of a data warehouse, most often they are talking about keeping the data current so it is a true reflection of the company’s operational position. Capturing changes to the source system content is crucial to a successful data warehouse. The maintenance of the data content is dependent on the incremental load process. There are several ways to capture changes to the source data, and all are effective in their appropriate environments.
Using Audit Columns
In most cases, the source system contains audit columns. Audit columns are appended to the end of each table to store the date and time a record was added or modified. Audit columns are usually populated via database triggers fired off automatically as records are inserted or updated. Sometimes, for performance reasons, the columns are populated by the front-end application instead of database triggers. When these fields are loaded by any means other than database triggers, you must pay special attention to their integrity. You must analyze and test each of the columns to ensure that it is a reliable source to indicate changed data. If you find any NULL values, you must to find an alternative approach for detecting change.
The most common environment situation that prevents the ETL process from using audit columns is when the fields are populated by the front-end application and the DBA team allows back-end scripts to modify data. If this is the situation in your environment, you face a high risk that you will eventually miss changed data during your incremental loads. A preventative measure to minimize your risk is to stipulate that all back-end scripts be validated by a quality-assurance team that insists and tests that the audit fields are populated by the script before it is approved.
Once you are confident that audit columns are dependable, you need a strategy for utilizing them. There are various methods to implement the utilization of audit columns to capture changes to data. All of the methods have the same logical objective: to compare the last modified date and time of each record to the maximum date and time that existed during the previous load and take all those that are greater.
One approach we’ve found effective is to utilize the audit columns in the source system. Essentially, the process selects the maximum date and time from the create date and last modified date columns. Some last modified columns are updated upon insertion and with each change to the record. Others are left NULL upon insertion and updated only with changes after the record has already been inserted. When the last modified date is not populated, you must default it with an arbitrary old date in order to not lose new records. The following code can help resolve NULL modified dates:
select max(greatest(nvl(create_date,’01-JAN-0001’), nvl(last_mod_date,’01-JAN-0001’)))
In cases where the rows in the fact table are inserted but never updated, you can simply select records from the source system where the create date and time is greater than the maximum date and time of the previous load and ignore the last modified date column.
Since fact tables and dimension tables can be sourced from many different tables and systems, and since fact tables consist only of foreign keys and measures, you do not store the audit dates in the fact table directly. You need to create an ETL last-change table that captures each source table and the maximum date time found in the source system audit columns at the time of each extract. If your fact table requires audit statistics for its rows, consider implementing an audit dimension as described in Chapter 4.
Database Log Scraping or Sniffing
Log scraping effectively takes a snapshot of the database redo log at a scheduled point in time (usually midnight) and scours it for transactions that affect the tables you care about for your ETL load. Sniffing involves a polling of the redo log, capturing transactions on the fly. Scraping the log for transactions is probably the messiest of all techniques. It’s not rare for transaction logs to blow-out, meaning they get full and prevent new transactions from occurring. When this happens in a production-transaction environment, the knee-jerk reaction for the DBA responsible is to empty the contents of the log so the business operations can resume. But when a log is emptied, all transactions within them are lost. If you’ve exhausted all other techniques and find log scraping is your last resort for finding new or changed records, persuade the DBA to create a special log to meet your specific needs. You presumably need transactions only for a few specific tables out of the hundreds in the source database. Those tables can populate your dedicated log via insert and update triggers.
If you want to pursue log sniffing, we recommend that you survey the available ETL tools in the market to find a proven solution rather than attempt to write the process from scratch. Many real-time ETL solution providers utilize log-sniffing techniques.
Timed Extracts
Select all of the rows where the date in the Create or Modified date fields equal SYSDATE-1, meaning you’ve got all of yesterday’s records. Sounds perfect, right? Wrong. Loading records based purely on time is a common mistake made by most beginning ETL developers. This process is horribly unreliable.
Time-based data selection loads duplicate rows when it is restarted from midprocess failures. This means that manual intervention and data cleanup is required if the process fails for any reason. Meanwhile, if the nightly load process fails to run and misses a day, a risk exists that the missed data will never make it into the data warehouse. Unless your ETL process is extremely straightforward and the data volume is exceptionally small, avoid loading data based purely on time.
Process of Elimination
Process of elimination preserves exactly one copy of each previous extraction in the staging area for future use. During the next run, the process takes the entire source table(s) into the staging area and makes a comparison against the retained data from the last process. Only differences (deltas) are sent to the data warehouse. Albeit not the most efficient technique, the process of elimination is the most reliable of all incremental load techniques for capturing changed data. Because the process makes a row-by-row comparison, looking for changes, it’s virtually impossible to miss any data. This technique also has the advantage that rows deleted from the source can be detected. These deleted rows are sometimes missed by other techniques.
This technique can be accomplished inside or out of a database management system. If you prefer using your DBMS, you must bulk load the data into the staging database for efficiency.
Initial and Incremental Loads
Create two tables: previous_load and current_load.
The initial process bulk loads into the current_load table. Since change detection is irrelevant during the initial load, the data continues on to be transformed and loaded into the ultimate target fact table.
When the process is complete, it drops the previous_load table, renames the current load table to previous load, and creates an empty current_load table. Since none of these tasks involve database logging, they are very fast!
The next time the load process is run, the current_load table is populated.
Select the current_load table MINUS the previous_load table. Transform and load the result set into the data warehouse.
Upon completion, drop the previous_load table and rename the current_load table to previous_load. Finally, create an empty current_load table.
Since MINUS is a notoriously slow technique when inside the database management system, you’ll want to use the ETL tool or third-party application to perform the process-of-elimination routine.
Extraction Tips
Consider the following points as you approach the extract process:
Constrain on indexed columns. Work with the DBA to ensure all of the columns in your WHERE clause are indexed in the source system; otherwise you will probably provoke a relation scan of the entire production database.
Retrieve the data you need. The optimal query returns exactly what you need. You shouldn’t retrieve an entire table and filter out unwanted data later in the ETL tool. One situation that might break this rule is if the transaction system DBA refuses to index columns needed to constrain the rows returned in your query. Another exception is when you are forced to download the entire source database to search for the deltas.
Use DISTINCT sparingly. The DISTINCT clause is notoriously slow. Finding the balance between performing a DISTINCT during the extract query versus aggregating or grouping the results in your ETL tool is challenging and usually varies depending on the percentage of duplicates in the source. Because there are many other factors that can affect this decision, all we can recommend is to take care to test each strategy for the most efficient results.
Use SET operators sparingly. UNION, MINUS, and INTERSECT are SET operators. These, like DISTINCT, are notoriously slow. It’s understood that sometimes these operators cannot be avoided. A tip is to use UNION ALL instead of UNION. UNION performs the equivalent of a DISTINCT, slowing the process. The hitch is that UNION ALL returns duplicates, so handle with care.
Use HINT as necessary. Most databases support the HINT keyword. You can use a HINT for all kinds of things, but most importantly to force your query to use a particular index. This capability is especially important when you are using an IN or OR operator, which usually opts for scanning a full table scan rather than using indexes, even when usable indexes exist.
Avoid NOT. If at all possible, avoid non-equi constraints and joins. Whether you use the keyword NOT or the operators ‘<>’, your database will most likely opt to scan a full table rather than utilize indexes.
Avoid functions in your where clause. This is a difficult one to avoid, especially when constraining on dates and such. Experiment with different techniques before committing to use of a function in your WHERE clause. Try using comparison keywords instead of functions whenever possible. For example:
LIKE ‘J%’ instead of SUBSTR(‘LAST_NAME’,1,1 ) = ‘J’
EFF_DATE BETWEEN ’01-JAN-2002’ AND ’31-JAN-2002’ instead of TO_CHAR(EFF_DATE, ‘YYY-MON’ ) = ‘2002-JAN’
The goal of the extract query is to get all of the relevant natural keys and measures. It can be as simple as selecting multiple columns from one table or as complex as actually creating nonexistent data and can range from joining a few tables to joining many tables across heterogeneous data sources. On a specific project, we had to create a periodic snapshot fact table that needed to present sales for every product in inventory even if there were no sales for the product during the specified period. We had to generate a product list, get all of the sales by product, and perform an outer join between the product list and the sales by product list, defaulting the nonselling product sales amounts with zero.
Detecting Deleted or Overwritten Fact Records at the Source
Measurement (fact) records deleted or overwritten from source systems can pose a very difficult challenge for the data warehouse if no notification of the deletion or overwrite occurs. Since it is usually infeasible to repeatedly re-extract old transaction records, looking for these omissions and alterations, the best we can offer are the following procedures:
Negotiate with the source system owners, if possible, explicit notification of all deleted or overwritten measurement records.
Periodically check historical totals of measurements from the source system to alert the ETL staff that something has changed. When a change is detected, drill down as far as possible to isolate the change.
When a deleted or modified measurement record is identified, the late-arriving data techniques of the previous section can be used. In cases of deleted or modified fact records, rather than just performing a deletion or update in the data warehouse, we prefer that a new record be inserted that implements the change in the fact by canceling or negating the originally posted value. In many applications, this will sum the reported fact to the correct quantity (if it is additive) as well as provide a kind of audit trail that the correction occurred. In these cases, it may also be convenient to carry an extra administrative time stamp that identifies when the database actions took place.
Summary
In this chapter, we have isolated the extract step of the ETL data flow. We recommended that you step back at the very start and make sure the proposed extracts are even worth it! You can make this go/no-go decision with a data-profiling tool that will tell you if data is of sufficient quality to meet your business objectives.
The next big step is preparing the logical data map that connects the original source data to the ultimate final data. Perhaps the most important part of the logical data map is the description of the transformation rules applied between these inputs and outputs. Since a certain amount of discovery and refinement will take place as you actually implement the ETL system, you should expect to go back and periodically update the logical data map. If it is well maintained, it will be perhaps the most valuable description of your ETL system. At some point, a new person will have to decipher what you did, and he or she should start with the logical data map.
The central focus of this chapter was a tour of the various source systems you are likely to encounter. We gave you more than a teaspoon of some of the extract complexities, but of course, nothing is as valuable as real experience.
The last part of the chapter described the challenge of extracting just the new data, the changed data, and even the deleted data. In subsequent chapters, we point out the special processing needed in these situations.
