CHAPTER 4

Cleaning and Conforming

Cleaning and conforming are the main steps where the ETL system adds value. The other steps of extracting and delivering are obviously necessary, but they only move and reformat data. Cleaning and conforming actually changes data and provides guidance whether data can be used for its intended purposes.

In this chapter, we urge you to build three deliverables: the data-profiling report, the error event fact table, and the audit dimension. You can build a powerful cleaning and conforming system around these three tangible deliverables.

The cleaning and conforming steps generate potent metadata. Looking backward toward the original sources, this metadata is a diagnosis of what’s wrong in the source systems. Ultimately, dirty data can be fixed only by changing the way these source systems collect data. Did we say business process re-engineering?

Metadata generated in the cleaning and conforming steps accompanies real data all the way to the user’s desktop. Or at least it should. The ETL team must make the cleaning and conforming metadata available, and that is where the audit dimension comes in.

Please stay with us in this chapter. It is enormously important. This chapter makes a serious effort to provide specific techniques and structure for an often amorphous topic. The chapter is long, and you should probably read it twice, but we think it will reward you with useful guidance for building the data cleaning and conforming steps of your ETL system.

If you are new to ETL system design, you may well ask “What should I focus on as a bare minimum?’’ Perhaps our best answer is: Start by performing the best data-profiling analysis you are capable of. You will then be much more usefully calibrated about the risks of proceeding with your potentially dirty or unreliable data. Armed with these understandings from the data-profiling step, you will have decomposed the problem and you will be more confident in designing a simple error event fact table and a simple audit dimension.

PROCESS CHECK Planning & Design:

Requirements/Realities → Architecture → Implementation → Test/Release

Data Flow: Extract → Clean → Conform → Deliver

This chapter is organized into four data-quality topics:

Part 1: Design Objectives

Part 2: Cleaning Deliverables

Part 3: Screens and Their Measurements

Part 4: Conforming Deliverables

This is a top-down explanation of data quality. In the objectives section, we urge you to be thorough, fast, corrective and transparent. The perspectives of the cleaning and conforming steps are less about the upside potential of the data and more about containment and control. In some ways, this is unfamiliar territory for the data warehouse team. In the deliverables section, we introduce the mainstay structures of the cleaning subsystem: the error event table and the audit dimension. We also urge you to study Appendix B of Jack Olson’s book in order to design a systematic structure for the results of your up-front data-profiling pass.

Descending a level further, the screens section defines a set of checkpoints and filters that you set up in many places to measure data quality. With screens, we build a unified approach to capturing data-quality events and responding to these events with appropriate actions.

Definition: data-quality screen.

Throughout this chapter, we refer to data-quality screens. We use the word screen both to mean report and filter. Thus, a data-quality screen is physically viewed by the ETL team as a status report on data quality, but it’s also a kind of gate that doesn’t let bad data through.

In the fourth part, we describe the big deliverables of the conforming step: the conformed dimensions and facts and how they are handed off. We also suggest some metadata approaches to keep track of the decisions the organization has made to standardize your dimensions and facts.

Finally, the measurements section is a kind of implementer’s guide to specific data-quality issues. Much like the details of the different types of extraction issues we describe in Chapter 3, these data-quality measurements are a reasonable set for you to build upon.

This chapter draws liberally from the work of the leading data-quality authors Jack Olsen and Larry English. Their simple and most direct techniques for measuring data quality have been used in this chapter and placed within a kind of a template for building sensible data-quality ETL processes.

Defining Data Quality

Let’s agree on some basic vocabulary, focused on accuracy. Accurate data means that the data is:

Correct. The values and descriptions in data describe their associated objects truthfully and faithfully. For example, the name of the city in which one of the authors currently live is called New Hope. Therefore, accurate data about that home address needs to contain New Hope as the city name to be correct.

Unambiguous. The values and descriptions in data can be taken to have only one meaning. For example, there are at least ten cities in the U.S. called New Hope, but there is only one city in Pennsylvania called New Hope. Therefore, accurate data about an address in this city needs to contain New Hope as the city name and Pennsylvania as the state name to be unambiguous.

Consistent. The values and descriptions in data use one constant notational convention to convey their meaning. For example, the U.S. state Pennsylvania might be expressed in data as PA, Penn., or Pennsylvania. To be consistent, accurate data about current home addresses should utilize just one convention (such as the full name Pennsylvania) for state names and stick to it.

Complete. There are two aspects of completeness.

The first is ensuring that the individual values and descriptions in data are defined (not null) for each instance, for example, by ensuring that all records that should have current addresses actually do.

The second aspect makes sure that the aggregate number of records is complete or makes sure that you didn’t somehow lose records altogether somewhere in your information flow.

A related completeness issue surrounds the alternative meanings of missing values in data. A missing value represented as a null might mean that the true value is unknown or that it does not apply. Missing values may be represented as blanks, or strings of blanks, or as creative descriptions (Don’t Know or Refused to Say).

Assumptions

The chapter makes a simplifying number of assumptions about the environment in which cleaning and conforming takes place. The first is that there are distinct points in the ETL job stream into which data-quality processing can be injected. Two such points are obvious from our model of the overall ETL data flow.

The first processing milestone is when data has been extracted—{\break}which means that data has been extracted from some number of sources and placed into a physical or logical structure that is subject aligned. For example, customer information from various sources initially can be staged in a table, data file, or in-memory structure whose configuration is the same regardless of the data source. Such a structure could be used for incoming data from various data sources deposited and queued for ETL work. Little or no data cleansing or integration has yet been applied; data from one or several sources has simply been restructured and now sits waiting for further processing. This should not imply that data from multiple sources must be processed simultaneously, just that source-independent staging structures are utilized. The ETL data-quality techniques described still work even if source-specific staging structures and processing streams are used, but the metadata examples shown at the end of the chapter might need to be adjusted. We propose running lots of data-quality processes at this stage to get an accurate picture of the state of the organization’s data quality while it is still unvarnished and to weed out hopelessly flawed data before it fouls up your data-cleansing and integration processes.

The second milestone is when data has been cleaned and conformed—which means data has successfully passed through all of the data-preparation and integration components of the ETL stream and is ready for final packaging in the delivery step. We propose you run more data-quality processes at this stage, as a safety net for your data-cleansing and integration software. In essence, you want to run your newly manufactured information products through some quality-assurance checks before you turn them loose in the world.

For simplicity’s sake, this chapter also assumes the use of batch ETL processing—rather than real-time or near real-time processing. We assume that batch processing aligns the techniques presented to the reality of most ETL environments and allows this chapter to direct its focus on data-quality issues and techniques rather than on the complexities of real-time ETL. We turn our attention to streaming ETL in Chapter 11.

Part 1: Design Objectives

PROCESS CHECK Planning & Design:

Requirements/Realities → Architecture → Implementation → Test/Release

Data Flow: Extract → Clean → Conform → Deliver

This part discusses the interrelated pressures that shape the objectives of data-quality initiatives and the sometimes conflicting priorities that the ETL team must aspire to balance. We propose some approaches to achieving this balance and in formulating a data-quality policy that meets the needs of important user constituencies.

Understand Your Key Constituencies

The data-quality subsystem must support the roles of data warehouse manager, the information steward, and the information-quality leader. Although these roles may be distributed in different ways across actual personnel, it’s useful to characterize these roles.

Data Warehouse Manager

The data warehouse manager owns responsibility for the day-to-day decisions that need to be made in running the data warehouse, ensuring that it is an accurate reflection of the internal and external data sources and that data is processed according to the business rules and policies in place.

The cleaning and conforming subsystems should support the data warehouse manager and the surrounding business community by providing a history of the transformations applied to data as it is loaded into the warehouse, including a detailed audit of all exceptional conditions.

Information Steward

The information steward is accountable for defining the information strategy. This person formalizes the definition of analytic goals, selects appropriate data sources, sets information generation policies, organizes and publishes metadata, and documents limitations of appropriate use.

The cleaning and conforming subsystems should support the information steward by providing metrics on the operational data warehouse’s day-to-day adherence to established business policy, issues with the source data that might be testing the boundaries of these policies, and data-quality issues that might call into question the appropriateness of the source data for certain applications.

Information-Quality Leader

The information-quality leader detects, corrects, and analyzes data-quality issues. This person works with the information steward to define policies for dealing with dirty data, setting publication quality thresholds, and balancing the completeness versus speed and corrective versus transparent tradeoffs described in the next section.

The data-quality subsystem should support the information-quality leader by providing data-quality measurements that describe the frequency and severity of all data-quality issues detected during the data warehouse ETL processes. This record should be a complete historical audit, allowing the information-quality leader to assess the success of data-quality improvement efforts over time.

Dimension Manager

The dimension manager creates and publishes one or more of the conformed dimensions used by the overall organization. There may be multiple dimension managers, each responsible for different dimensions. The dimension manager implements the agreements on common descriptive labels reached by various stakeholders in the overall data warehouse. The dimension manager creates and assigns surrogate keys and assigns version numbers to each release of a dimension to the target fact table environments. When a dimension is released to the data warehouse community, it is replicated simultaneously to all the destinations so that they may install the new version of the dimension simultaneously. The job of the dimension manager is centralized: A conformed dimension must have a single, consistent source. We provide more on the role of the dimension manager later in this chapter.

Fact Table Provider

The fact table provider is the local DBA who owns the single instance of a given fact table. The fact table provider is responsible for receiving dimensions from various dimension managers, converting local natural keys to the surrogate keys in the conformed dimensions, and making updated fact tables available to the user community. The fact table provider may have to make complex changes in existing fact tables if postdated (late) dimension records are received. Finally, the fact table provider is responsible for creating and administering aggregates, which are physically stored summary records used to accelerate performance of certain queries. We provide more on the role of the fact table provider later in this chapter.

Competing Factors

Four interrelated pressures or priorities shape the objectives of your data-quality system as depicted in Figure 4.1.

Figure 4.1 Data-quality priorities.

Be Thorough

The data-cleaning subsystem is under tremendous pressure to be thorough in its detection, correction, and documentation of the quality of the information it publishes to the business community. End users want to look to the data warehouse as a source of trusted information—a rock upon which to build their management metrics, strategies, and policies.

Be Fast

The whole ETL pipeline is under tremendous pressure to process ever-growing volumes of data in ever-shrinking windows of time. Some of the newest and most interesting customer touch points are very detailed and intimate—like Web clickstream—and drive huge data volumes into the data warehouse.

Be Corrective

Correcting data-quality problems at or as close to the source as possible is, of course, the only strategically defensible way to improve the information assets of the organization—and thereby reduce the high costs and lost opportunity of poor data quality. However, the reality is that many organizations have not yet established formal data-quality environments or information-quality leaders. In such cases, the data warehouse team might be the first to discover quality issues that have been festering for years. This team is expected to do all that can be done to fix these problems.

Be Transparent

The data warehouse must expose defects and draw attention to systems and business practices that hurt the data quality of the organization. These revelations ultimately drive business process re-engineering, where the source systems and data entry procedures are improved. Undertaking heroic measures to mask data-quality defects at the source might be one of those situations where the remedy can be worse than the disease.

Balancing Conflicting Priorities

Clearly, it is impossible for the cleaning subsystem to address in absolute terms all of these factors simultaneously. They must be properly balanced—reflecting the priorities of each situation.

Completeness versus Speed

The data-quality ETL cannot be optimized for both speed and completeness. Instead, we aspire to find an appropriate point on the exponential relationship curve (see Figure 4.2) that strikes the balance we seek.

Figure 4.2 Completeness versus speed.

A potentially revealing way to best strike this balance is by asking some tough questions about the latency and quality of the data in your to-be-built data warehouse, such as:

At what point does data staleness set in? versus

How important is getting the data verifiably correct?

If your data warehouse sponsors had to choose, for example, between a higher degree of confidence in data quality and a one-day delay in publication, which would they choose? A data warehouse that publishes daily might, for example, choose to trade one full day of latency for additional data-quality confidence, perhaps through expanded statistical variance testing or data standardization and matching or even selective manual review/ auditing. If Monday’s operational data were published on Wednesday rather than Tuesday, would this be an acceptable trade-off? There are no easy answers to questions like these.

Corrective versus Transparent

The data-cleaning process is often expected to fix dirty data, yet at the same time provide an unvarnished view into the workings of the organization warts and all. Striking a proper balance here is essential: A transparency-at-all-costs system can yield a feeble business-intelligence system that dilutes potential for insight, and a too-corrective system hides/obscures operational deficiencies and slows organizational progress.

The solution is to establish a sensible policy boundary between the types of defects that are corrected verses highlighted by the cleaning and to produce an easy-to-use audit facility (the audit dimension) that dutifully documents the modifications, standardizations, and underlying rules and assumptions of the error- detection and data-reengineering components.

Data Quality Can Learn From Manufacturing Quality

The manufacturing quality revolution is now at least 30 years old. The seminal work on quality is W. Edwards Deming’s total quality management (TQM) structure. His 14 points of managing TQM are worth reading while thinking about data quality, although outside the immediate scope of this book. But perhaps Deming’s main point is that manufacturing quality requires a total commitment across every part of an organization: It is not a single inspector at the end of the assembly line!

Data quality can learn a great deal from manufacturing quality. One big step in this direction is the emergence of centralized data-quality groups in IT organizations. The data warehousing staff concerned with data quality must not operate independently from the data-quality group. The screens we define in this chapter should supplement other screens and assessment capabilities used by the data-quality team. These should feed a comprehensive database that incorporates results from all manner of data-quality measurements, not just the data warehouse. Most of the issues that come from ETL screens will result in demands to improve source systems, not in demands for more cleansing. All of the demands for improving data quality at the source need to be coordinated through the data-quality team.

Formulate a Policy

Shown in Figure 4.3 is one method for categorizing the set of data-quality challenges faced in data warehouse projects and isolating those that should be addressed by the ETL data-quality subsystems:

Figure 4.3 Data Quality Issues Policy.

Category A issues, for whatever reason, simply must be addressed at the data source. Examples might include missing information about the subject of a customer complaint or bogus information entered into a field that subjectively captures customer receptivity to a sales call. There is simply no technological way to derive or recreate this information. It must be captured correctly at the source, or it is lost. When addressing Category A data-quality issues, the cleaning subsystems should recognize them as deficiencies at the source, remove any clearly bogus information from the primary reporting and analysis dimensions and facts, and clearly label the information as missing or bogus thereby drawing management focus directly on the source system defect. In most data warehouse projects, the majority of data-quality issues discovered fall into this category—data-quality issues that must be detected and clearly communicated to the end user community.

Category D (we know we are skipping) data-quality issues can only be pragmatically resolved in the ETL system. Examples might include missing or incomplete information from independent third-party data suppliers that can be reliably corrected through integration or the correction of bad data from an inflexible operational source system. Category D issues tend to be relatively rare in most data warehouse projects. In dealing with Category D issues, the ETL system is granted license to undertake creative/heroic measures to correct the data defect, but it must ensure that its polices and actions are visible to users through descriptive and complete metadata.

Category B issues should be addressed at the data source even if there might be creative ways of deducing or recreating the derelict information. The boundary between Categories A and B is therefore technical rather than political. If a given data issue can be addressed with acceptable confidence through technology, it clearly belongs somewhere to the right of Category A in this bell curve.

Category C issues, for a host of reasons, are best addressed in the data-quality ETL rather than at the source. Again, the boundary between Categories C and D is technical rather than political. If a given data-quality issue can be addressed reasonably at the source, it clearly belongs somewhere to the left of Category D in this bell curve.

By dividing and conquering our data-quality issues, we find that the only really tough boundary to define is that between Categories B and C: issues that, from a technology standpoint, can be addressed either at the source or in the ETL system. This is the Political DMZ (demilitarized zone).

Part 2: Cleaning Deliverables

A serious undertaking to improve data quality must be based on rigorous measurement. This should include keeping accurate records of the types of data-quality problems you look for, when you look, what you look at, and the results. Further, you need to be able to answer questions from the data warehouse manager, information steward, and information-quality leader about your processing and the data-quality insights discovered, such as:

Is data quality getting better or worse?

Which source systems generate the most/least data-quality issues?

Are there interesting patterns or trends revealed in scrutinizing the data-quality issues over time?

Is there any correlation observable between data-quality levels and the performance of the organization as a whole?

Perhaps the data warehouse manager also asks:

Which of my data-quality screens consume the most/least time in my ETL window?

Are there data-quality screens that can be retired because the types of issues that they uncover no longer appear in our data?

The data-cleaning subsystem follows the extract step in the overall ETL processing stream. The primary deliverables, discussed in the next three sections, are:

Data-profiling results

An error event table

An audit dimension

Data Profiling Deliverable

Data cleaning must actually start before the first step of building the ETL system. We have strongly urged that you perform a comprehensive data-profiling analysis of your data sources during the up-front planning and design phase. Good data-profiling analysis takes the form of a specific metadata repository describing:

Schema definitions

Business objects

Domains

Data sources

Table definitions

Synonyms

Data rules

Value rules

Issues that need to be addressed

Not only is data profiling a good quantitative assessment of your original data sources; this output should strongly influence the content of the two operations deliverables described as follows. Appendix B of Jack Olson’s book, Data Quality: The Accuracy Dimension, has a comprehensive list of subcategories expanding the preceding list that should be created through data-profiling analysis to form the basis of the metadata repository.

Cleaning Deliverable #1: Error Event Table

The first major data-cleaning deliverable is a fact table called the error event table and a set of dimensions. This deliverable is structured as a dimensional data model, that is, as a dimensional star schema. (See Figure 4.4)

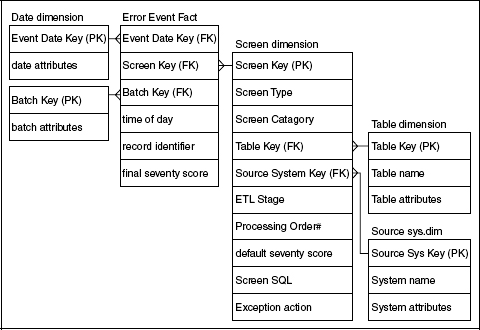

Figure 4.4 Error event table schema.

Each data-quality error or issue surfaced by the data-cleaning subsystem is captured as a row in the error event fact table. In other words, the grain of this fact table is each error instance of each data-quality check. Remember that a quality check is a screen. So, if you were to run ten separate screens against some set of data and each screen uncovered ten defective records, a total of 100 records would be written to the error event fact table.

The event date is a standard dimension representing the calendar date. The time of day is represented in the fact table as the number of seconds since midnight, expressed as an integer.

The batch dimension contains a record for each invocation of the overall batch process—and typically contains interesting timestamps, and numbers of records processed.

The screen dimension table contains constant descriptive information about each data-quality check, or screen, applied. It is not a description of a specific run (that is what the fact table records) but rather is a description of what the screen does and where it is applied. One of its attributes, the default severity score, defines a severity value for each of the various types of errors it may encounter. These error-severity scores are used as the basis of the final severity score error event fact table. For example, the final severity score could be higher than the individual default scores if a large number had accumulated.

The attributes of the screen dimension are as follows:

The ETL Stage describes the stage in the overall ETL process in which the data-quality screen is applied.

The Processing Order Number is a primitive scheduling/dependency device, informing the overall ETL master process of the order in which to run the screens. Data-quality screens with the same processing-order number in the same ETL stage can be run in parallel.

The Default Severity Score is used to define the error-severity score to be applied to each exception identified by the screen in advance of an overarching processing rule that could increase or decrease the final severity score as measured in the fact table.

The Exception Action attribute tells the overall ETL process whether it should pass the record, reject the record, or stop the overall ETL process upon discovery of error of this type.

The Screen Type and Screen Category Name are used to group data-quality screens related by theme, such as Completeness or Validation or Out-of-Bounds.

And finally, the SQL Statement captures the actual snippet of SQL or procedural SQL used to execute the data-quality check. If applicable, this SQL should return the set of unique identifiers for the rows that violate the data-quality screen so that this can be used to insert new records into the error event fact table.

For reporting purposes, it is useful to associate each screen to the table or set of columns that it scrutinizes, so that the information-quality leader can run reports that identify areas of data-quality problems and track these over time. This is the purpose of the table foreign key in the screen dimension.

The source system dimension identifies the source of the defective data. Because data-quality screens are run against both staged data that belongs to a single data source and data that may have been distilled from several sources, error events can be associated with a special (dummy) integrated source system.

The unique identifier of the defective record that allows the error event to be traced directly to the offending record is represented in the fact table as a degenerate dimension consisting of the ROWID or other direct pointer to the record in question. Note that with this design there is an implied responsibility to maintain referential integrity between this identifier in the screen dimension table and the real record. If you delete the real record, the screen record will be left as an orphan. The screen category field is simply used to categorize the types of errors detected by the screen. Possible values might include: Incorrect, Ambiguous, Inconsistent, and Incomplete, allowing the analyst to aggregate error events into interesting classifications.

The error event fact table is the central table for capturing, analyzing, and controlling data quality in the ETL system. All error events from all ETL processes should be written to this table. The screen dimension, of course, is the main driver for this table. This schema is the basis of the master control panel for the ETL system.

Cleaning Deliverable #2: Audit Dimension

The error event fact table described in the previous section captures data-cleaning events at the grain of the individual record in any and all tables in the ETL system. Obviously, these events may not occur at the grain of an individual record in a final delivered table being sent across to the front room. To associate data-quality indicators with the final end user fact tables, we need to build a dimension that is single valued at the grain of these tables. We will call this the audit dimension. The audit dimension describes the complete data-quality context of a fact table record being handed to the front room.

The audit dimension is literally attached to each fact record in the data warehouse and captures important ETL-processing milestone timestamps and outcomes, significant errors and their frequency or occurrence for the that record, and an overall data-quality score. Audit dimension records are created as the final step of the processing for cleaned and conformed fact table records and must contain a description of the fixes and changes that have been applied to the record.

The audit dimension captures the specific data-quality context of an individual fact table record. This does not usually produce an enormous proliferation of audit dimension records, because the purpose of the audit dimension is to describe each type of data quality encountered. For instance, in the ideal case of a completely clean run of new data to be loaded into a fact table, only one audit record would be generated. Alternatively, if the run was clean except for a few input records that triggered out-of-bounds checks because of abnormally high values, two audit records would be generated: one for normal data records and one for out-of-bounds records. The vast majority of fact records would use the surrogate key for the normal audit record, and the few anomalous fact records would use the surrogate key for the out-of-bounds audit record.

A representative audit dimension design is shown in Figure 4.5.

Figure 4.5 Audit dimension.

The data-quality attributes and overall score are calculated by examining all error event facts for the integrated record and its associated source system records. The audit dimension contains a number of attributes calculated from the error event fact table by summing the error scores of the fact record, the scores of the conformed dimension instances that it is associated with, and each of the source records from which the integrated dimensions and facts were created. If you classify each screen, the aggregated data-quality score for each of these classifications can be carried in the audit dimension as descriptive attributes, both in textual and numeric form. The textual forms are useful for labeling reports with qualitative descriptions of error conditions. The data-quality completeness, validation, and out-of-bounds, audit dimension attributes shown in Figure 4.4 are examples of this technique.

Similarly, you can count the total number of error events and the maximum severity score for any one event as interesting attributes to be carried into the audit dimension. Finally, the audit dimension is a perfect placeholder for all of the timestamps and ETL code lineage attributes that you have collected supporting the analysis and troubleshooting tasks of the data warehouse manager.

Perhaps the biggest payoff comes from exposing the audit dimension to the end user community. End user queries and reports can now be run in normal mode and instrumented mode. By simply dragging one of the audit dimension attributes into the query or report, the original results get exploded into the separate contributions made by records with various data-quality conditions. Thus, a reported sales total for a large number of stores could now be broken into three lines (stores with normal sales, stores with abnormally high sales, and stores with abnormally low sales) merely by dragging the out-of-bounds category attribute into the report.

Notice that we have sneaked some global metadata context into the audit dimension! At the bottom of the figure are some global release and version numbers. Thus, if you have changed your revenue allocation scheme in the middle of the reporting period, you can drag the allocation logic version number attribute into the report and it will expand each results set row into the parts that were computed with the old scheme and the parts that were computed with the new scheme. We have elevated metadata to the status of data.

Audit Dimension Fine Points

A broadly accepted method to calculate an overall data-quality score for a fact record has not yet matured. The challenge is to define a method that presents the level of data quality that has actually been validated, doing so in a form that survives anticipated adjustments to the set of data-quality screens performed over time. After all, you don’t want to have to revisit all of your data-quality scores for all facts in the warehouse every time that the information-quality leader adjusts the screens. If very few screens are performed, for example, the level of data quality actually validated should be lower than if more comprehensive sets of screens are added to the ETL stream later.

One technique for calculating the validated overall data score for a fact is to sum the error-event severity scores for all error-event records associated to the fact. Of course, this assumes that a source-to-target mapping of IDs is produced as a byproduct of the ETL matching data integration function (described later in this chapter). This sum of observed event scores can be subtracted from a worst-case error score scenario to determine the overall validated data-quality score used in the audit dimension. Worst-case error scores represent the sum of the maximum error-severity scores for all screens performed against extracted, cleaned, and conformed data. Thus, if ten distinct screens are performed against a single fact record and nine dimension records—each capable of generating a worst-case, data-quality severity score of ten—the overall worst-cast score total is 100. Restated: If every screen found defects in every screen that it applied, the cumulative data-quality severity score would be 100. Knowing this, you might choose to give this absolutely flawed fact an overall score of zero and assign a fact that has zero error events an overall score of 100. This technique, therefore, provides a measure of the overall data quality against the set of screens actually applied. If the organization chooses to add more screens to the ETL process, validated data-quality scores have the potential to rise. This seems reasonable, since the organization is now validating its data to a higher level of quality.

The structure of the audit dimension can be made unique to each fact table. In other words, you may choose to build a family of audit-dimension designs rather than forcing al audit dimensions to contain the same information. This would allow individual diagnoses of the quality of separate facts to be represented in a single audit dimension record. The key here is to preserve the dimensional character of this table.

This section has discussed the design of an audit dimension that describes the data-quality diagnoses and actions pertaining to fact table records. As such, it is cleanly modeled as a dimension on each fact table. But is it possible to have an audit dimension for a dimension? Our answer is no; you don’t need this. We prefer to embed the data-quality diagnoses and actions directly in the dimension table itself. Data-quality diagnoses of the overall reliability of the data should be included as additional fields in the dimension itself. Type 1 changes to a dimension (overwrites) can also be described in this way. Type 2 changes (alterations to atrributes at a particular point in time) already have extensive machinery available, including time stamps and reason codes, that can accomplish much of the purposes of a separate audit dimension. If a full audit trail of all changes to the data warehouse structures is needed for compliance reporting, you need to design special structures that record all these changes individually.

Part 3: Screens and Their Measurements

We are now ready to do some detailed design. This section describes a set of fundamental checks and tests at the core of most data-cleaning engines. It describes what these functions do, how they do it, and how they build upon one another to deliver cleaned data to the dimensional data warehouse. We are greatly indebted to Jack Olsen for creating the organization and vocabulary of the following sections, as described in his book Data Quality: The Accuracy Dimension.

PROCESS CHECK Planning & Design:

Requirements/Realities → Architecture → Implementation → Test/Release

Data Flow: Extract → Clean → Conform → Deliver

Anomaly Detection Phase

A data anomaly is a piece of data that does not fit into the domain of the rest of the data it is stored with. Remember when as a child you would be given a picture and would be asked, “What is wrong with this picture?” You would point out the square tires on a bicycle or the upside-down stop sign. Data anomalies are the square tires in the database. Detecting these anomalies requires specific techniques and entails analytical scrutiny. In this section, we explain anomaly detection techniques that have been proven successful on our data warehouse projects.

What to Expect When You’re Expecting

Exposure of unspecified data anomalies once the ETL process has been created is the leading cause of ETL deployment delays. Detecting data anomalies takes a great deal of time and analysis. By doing this analysis up front, you save time and reduce frustration. The alternative is to have your time consumed by rebuilding the same ETL jobs over and over again while attempting to correct failed mappings caused by undiscovered data anomalies.

Finding data anomalies may be perceived by some as data-quality issues outside the data warehouse, and they may well be, but unless your project is budgeted for a full-blown data-quality analysis subproject, chances are that detecting data anomalies will be the responsibility of the ETL team.

Data Sampling

The simplest way to check for anomalies is to count the rows in a table while grouping on the column in question. This simple query, whose results are shown in Figure 4.6, reveals the distribution of values and displays potentially corrupt data.

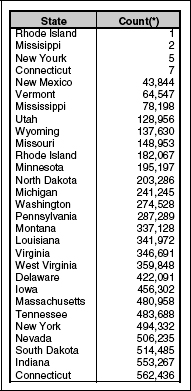

Figure 4.6 Result of value distribution query.

select state, count(*)

from order_detail

group by state

As you can see in Figure 4.6, data anomalies are instantly exposed. The outliers in the result set are data anomalies and should be presented to the business owner with a strong recommendation that they be cleaned up in the source system.

TECHNICAL NOTE Data-profiling tools are built to perform exactly this kind of data sampling.

Analyzing source data sounds easy, right? What happens when your source table has 100 million rows, with 250,000 distinct values? The best approach to analyzing monster data sources is with data samples. We’ve used many different techniques for sampling data, ranging from simply selecting the first 1,000 rows to using the most elaborate algorithms, none of which are especially remarkable. We find that the following query, which simply counts the rows in the table and slices the table evenly into a specified number of segments, accurately samples the data regardless of the values in the table:

select a.*

from employee a, (select rownum counter, a.*

from employee a) B where a.emp_id = b.emp_id and mod(b.counter, trunc((select count(*)

from employee)/1000,0)) = 0

To examine more or less data, simply alter the 1,000 to the number of rows you’d like returned in your sample.

Another approach involves adding a random number column to data, which can be sorted to select any desired fraction of the total table.

Once you have this sample data, you can perform your value-distribution analysis as usual. Selecting data by any other means, besides selecting all of it, can skew your tests results.

A common mistake we’ve noticed is selecting a specific range of dates to narrow a result set. Data corruption usually occurs by bugs in the application program or by untrained staff. Most anomalies we’ve come across happen temporarily; then either the application is corrected or the person is replaced, and the anomaly disappears. Selecting data within a date range can easily miss these anomalies.

Types of Enforcement

It is useful to divide the various kinds of data-quality checks into four broad categories:

Column property enforcement

Structure enforcement

Data enforcement

Value enforcement

Column Property Enforcement

Column property enforcement ensures that incoming data contains expected values from the providing system’s perspective. Useful column property enforcement checks include screens for:

Null values in required columns

Numeric values that fall outside of expected high and low ranges

Columns whose lengths are unexpectedly short or long

Columns that contain values outside of discrete valid value sets

Adherence to a required pattern or member of a set of patterns

Hits against a list of known wrong values where list of acceptable values is too long

Spell-checker rejects

A number of specific screening techniques are discussed later in this chapter for performing precisely this set of validity checks and for capturing exceptions. Based on the findings of these screens, the ETL job stream can choose to:

1. Pass the record with no errors

2. Pass the record, flagging offending column values

3. Reject the record

4. Stop the ETL job stream

The general case is option two, passing records through the ETL stream and recording any validation errors encountered to the error event fact table to make these errors visible to the end user community and to avoid situations where data warehouse credibility is hurt by Swiss cheese data completeness. Data records that are so severely flawed that inclusion in the warehouse is either impossible or is damaging to warehouse credibility should be skipped completely, the error event duly noted, of course, in the error event fact table. And finally, data-validation errors that call into question the data integrity of the entire ETL batch should stop the batch process completely, so that the data warehouse manager can investigate further. The screen dimension contains an exception action column that associates one of these three possible actions to each screen.

Structure Enforcement

Whereas column property enforcement focuses on individual fields, structure enforcement focuses on the relationship of columns to each other. We enforce structure by making sure that tables have proper primary and foreign keys and obey referential integrity. We check explicit and implicit hierarchies and relationships among groups of fields that, for example, constitute a valid postal mailing address. Structure enforcement also checks hierarchical parent-child relationships to make sure that every child has a parent or is the supreme parent in a family.

Data and Value Rule Enforcement

Data and value rules range from simple business rules such as if customer has preferred status, the overdraft limit is at least $1000 to more complex logical checks such as a commercial customer cannot simultaneously be a limited partnership and a type C corporation. Value rules are an extension of these reasonableness checks on data and can take the form of aggregate value business rules such as the physicians in this clinic are reporting a statistically improbable number of sprained elbows requiring MRIs. Value rules can also provide a probabilistic warning that the data may be incorrect. There indeed are boys named Sue, at least in Johnny Cash’s song, but maybe such a record should be flagged for inspection. A priori if this record is incorrect, you don’t know whether it is the name or the gender that should be corrected.

These kinds of findings are hard to include in the error event fact table because the violations involve multiple records. Individual incorrect records are impossible to identify. One is left with two choices: Either tag all such records (sprained elbow requiring MRI) as suspect, or establish a virtual aggregate table on which errors can be reported as a count of incidences.

Measurements Driving Screen Design

PROCESS CHECK Planning & Design:

Requirements/Realities → Architecture → Implementation → Test/Release

Data Flow: Extract → Clean → Conform → Deliver

This section discusses what needs to go into the data-cleaning baseline for the data warehouse, including simple methods for detecting, capturing, and addressing common data-quality issues and procedures for providing the organization with improved visibility into data-lineage and data-quality improvements over time.

Overall Process Flow

A series of data-quality screens or error checks are queued for running—the rules for which are defined in metadata. Each screen is described in the screen dimension we build as part of the error event schema in the early part of this chapter. As each screen is run, each occurrence of errors encountered is recorded in an error event record. The metadata for each error check also describes the severity of the error event. The most severe data-quality errors are classified as fatal errors that will cause overall ETL processing to stop. An example of a condition that drives the creation of a fatal error event might be discovering that daily sales from several stores are completely missing or that an impossible invalid value for an important column has appeared for which there are no transformation rules.

When each of the data-quality checks has been run, the error event fact table is queried for fatal events encountered during the overall data-quality process. If none are found, normal ETL processing continues; otherwise, a halt condition is returned to the overall calling ETL process, which should then perform an orderly shutdown of the overall ETL process and proactively notify the data warehouse administrator and/or information-quality steward. This process is depicted in Figure 4.7.

Figure 4.7 Overall process flow.

For highest performance, the goal of the data-cleaning subsystem processing stream is to invoke waves of screens that can be run in parallel. These screens identify data-quality issues and insert records into the error event fact table. To minimize database contention issues, you should avoid unneeded indexing or constraints on the error event fact table so that records can stream into this table from several screen processes simultaneously without causing problems. The calling process waits for each wave of screens to complete before invoking the next wave of screens—until there are no more screen waves left to run. As indicated earlier in this chapter, the processing-order number of the screen metadata table is used for scheduling screens. Screens with the same processing order can be run in parallel. Standard data warehouse job scheduling tools can also be utilized for more comprehensive scheduling of screens and management of their dependencies.

When the cleaning subsystem completes its processing of the cleaned and conformed records, it performs some additional work in deriving an overall data-quality score for the audit dimension. It does this by aggregating the error event facts for the cleaned and conformed records in the stream and their associated source records (if this relationship is available)—saved as a byproduct of the ETL integration/matching processes. Interestingly, screens can also be applied to the error event fact table itself, allowing special screens to be established that measure the number and types of data-quality errors that have accumulated at any stage of the overall data-cleaning job stream. This technique is described further in the next section.

The recommended method for running screens is to build a generic software module that can execute any screen, given a batch ID and a screen surrogate key as parameters. This module extracts the metadata for the screen and constructs a dynamic INSERT statement that populates the error event fact table for each offending record returned by the screen. The general form of the dynamic INSERT statement is as follows:

INSERT INTO data_quality_error_event_fact

(etl_batch_surrogate_key, day and time of day surrogate keys,

list of values from the Screen Meta Data record,

offending_record_surrogate_key)

SELECT offending_record_surrogate_keys provided by the Screen’s SQL Statement

The Show Must Go On—Usually

A guiding principle of the data-cleaning subsystem is to detect and record the existence of data-quality errors, not to skip records or to stop the ETL stream. Data-quality issues are an unfortunate fact of life in the data warehousing arena, and business managers are forced to make tough decisions every day in the face of incomplete and inaccurate data. This situation will not change overnight. Instead, you should aspire to provide the organization with tools to gauge the quality of the data they are utilizing and to measure their progress in improving data quality over time.

That said, the data-cleaning subsystem must also provide some mechanism for dealing with unexpected conditions, including data records that are simply too flawed to be permitted into the data warehouse or data records that indicate a systemic flaw so severe as to warrant a halt to the overall ETL process. For practical and political reasons, the thresholds for triggering these exceptional remedies must be balanced to allow the data warehouse to remain a viable and useful tool to the business, yet still provide enough assuredness of data quality to maintain system credibility within the end user community. This can be a tough balance to strike and is likely to be adjusted over time. So the ETL data-quality subsystem should support the ability to tune these thresholds and change the course of action to take when data-quality errors are encountered.

In some cases, exceptional actions might need to be taken if too many low-level error conditions are detected. For example, the existence of an invalid U.S. state code in a customer address record would typically cause an error event to be written to the data-quality subject area but would not stop the overall ETL process. If all of the records in the batch have invalid U.S. state codes, though, this probably indicates a severe problem in some upstream process—severe enough to call into question the overall integrity of all data in the ETL stream. It is recommended that cases like this be handled by creating additional data-quality screens run directly against the error event fact table, counting the number of data quality error event records captured in the overall data-cleaning batch and triggering exception processing.

Take care with these special screens in their writing of their error findings back to the error event fact. They are reading from and writing to the same table—a recipe for database contention problems. Rather than writing error events for each offending record back to the fact, as do most other data-quality screens, they should instead aggregate error conditions of a specific type from a specific source table and write a single record error event fact if the aggregate exceeds the allowable threshold. This should sidestep most common contention issues.

Screens

Before screens can be run, you should have established an overall data-profiling baseline. This should include defining column specifications for nullity, numeric column ranges, character column length restrictions, and table counts. There is no substitute for performing in-depth research on data, on a source-by-source basis, for determining the characteristics of high-quality examples of data. This research should contain a review of the technical documentation of the data providers and a column-by-column review of the source data itself. For each data source to be loaded into the data warehouse, a data-profiling checklist should include:

Providing a history of record counts by day for tables to be extracted

Providing a history of totals of key business metrics by day

Identifying required columns

Identifying column sets that should be unique

Identifying columns permitted (and not permitted) to be null

Determining acceptable ranges of numeric fields

Determining acceptable ranges of lengths for character columns

Determining the set of explicitly valid values for all columns where this can be defined

Identifying frequently appearing invalid values in columns that do not have explicit valid value sets

Without dedicated data-profiling tools, a limited subset of the data-profiling benefits can be obtained with hand-coded SQL, a team of subject matter experts, and time and effort. This make-versus-buy tradeoff mirrors the discussion of choosing an overall ETL tool we present at the beginning of this book. In other words, the vendor-supplied tools are continuously raising the bar, making it less and less practical to roll your own, unless your needs and aspirations are very modest. The findings from the data-profiling exercise should be maintained by the information-quality leader—who can then apply them directly to the data-quality screen metadata definitions that drive the ETL data-quality process.

Known Table Row Counts

In some cases, the information-quality leader absolutely knows, through business policy, the number of records to be expected of a given data type from a given data provider. An example of this might be a weekly inventory of parts from a warehouse, where the inventory of all active parts must be provided—even if zero. In other cases, the information-quality leader can infer a range of acceptable records to expect from a given data-provider-based history and build screens that detect record counts that are uncharacteristically high or low. The known table record count case can be handled by simple screen SQL, such as the following:

SELECT	COUNT(*)
FROM	work_in_queue_table
WHERE	source_system_name = ‘Source System Name’
HAVING	COUNT(*) <> ‘Known_Correct_Count”

Because this is a table-level screen, the cleaned or conformed record identifier of the error event fact should be stored as a NULL.

Column Nullity

The determination of which columns are required (versus allowed to be null) in data records is very important and typically varies by source system. For example, a point-of-sale operational system might be permitted to have missing customer address attributes, but a record from a shipping system might demand non-null values. The metadata structures proposed capture nullity rules on a source-by-source basis. In dimensional models, integrated records often have more restrictive nullity rules than source data, because nearly all dimensional attribute columns are required to be populated—even if with only Unknown, Not Applicable, or Not Available descriptive strings.

Systematically populating null text fields with an actual value removes the ambiguity of whether the field is missing or legitimately empty. This technique also simplifies many SQL lookups; unfortunately, relational databases treat the empty text field differently from the null text field.

Even if a value is not supplied for the null text field, we recommend at least converting all null text fields to empty text fields.

The proposed approach for testing nullity is to build a library of source-specific nullity SQL statements that return the unique identifiers of the offending rows, such as the following:

SELECT	unique_identifier_of_offending_records
FROM	work_in_queue_table
WHERE	source_system_name = “Source System Name”
AND	column IS NULL

For screening errors from integrated records, you might adjust the SQL slightly to use your special dummy source system name, as follows:

SELECT	unique_identifier_of_offending_records FROM
work_in_queue_table WHERE	source_system_name = ‘Integrated’
AND	column IS NULL

Rows are inserted into the error event fact for each offending record returned by this screen, and the unique identifiers of the offending rows are written into the fact table as degenerate dimensions.

Column Numeric and Date Ranges

Although many numeric and date columns in relational database tables tolerate a wide range of values, from a data-quality perspective, they may have ranges of validity that are far more restrictive. Is it believable that a single customer transaction is for one million units? Perhaps yes, if our business is a global B2B exchange, but no, if this is a consumer retail point-of-sale transaction. You want your data-cleaning subsystem to be able to detect and record instances of numeric columns that contain values that fall outside of what the information-quality leader defines as valid ranges. In some cases, these valid value ranges will be defined by the source system. In other cases, especially for numeric columns that participate in sensitive ETL calculations, these ranges might need to be set by the information steward. Here again, columns of integrated data may have valid numeric ranges different from those of any data source, so you need to validate these with separate screens. An example of a SQL SELECT statement to screen these potential errors follows:

SELECT	unique_identifier_of_offending_records FROM
work_in_queue_table WHERE	source_system_name = ‘Source System Name’
AND	numeric_column IS NOT BETWEEN min AND max

Suppose we have a fact table that tracks daily sales in 600 stores, each of which has 30 departments. We therefore receive 18,000 sales numbers each day. This note describes a quick statistical check, based on calculating standard deviations, that allows us to judge each of the 18,000 incoming numbers for reasonableness. The technique also lets us quickly update the statistical base of numbers to get ready for tomorrow’s data load.

Remember that the standard deviation is the square root of the variance. The variance is the sum of the squares of the differences between each of the historical data points and the mean of the data points, divided by N-1, where N is the number of days of data. Unfortunately, this formulation requires us to look at the entire time history of sales, which, although possible, makes the computation unattractive in a fast-moving ETL environment. But if we have been keeping track of SUM_SALES and SUM_SQUARE_SALES, we can write the variance as (1/(N-1))*(SUM_SQUARE_SALES - (1/N)*SUM_SALES*SUM_SALES). Check the algebra!

So if we abbreviate our variance formula with VAR, our data-validity check looks like:

SELECT s.storename, p.departmentname, sum(f.sales) FROM fact f, store s, product p, time t, accumulatingdept a WHERE

(first, joins between tables… ) f.storekey = s.storekey and f.productkey = p.productkey and f.timekey = t.timekey and s.storename = a.storename and p.departmentname = a.departmentname and

(then, constrain the time to today to get the newly loaded data… ) t.full_date = #October 13, 2004# and

(finally, invoke the standard deviation constraint… ) HAVING ABS(sum(f.sales) - (1/a.N)*a.SUM_SALES) > 3*SQRT(a.VAR)

We expand VAR as in the previous explanation and use the a. prefix on N, SUM_SALES and SUM_SQUARE_SALES. We have assumed that departments are groupings of products and hence are available as a rollup in the product dimension.

Embellishments on this scheme could include running two queries: one for the sales MORE than three standard deviations above the mean and another for sales LESS than three standard deviations below the mean. Maybe there is a different explanation for these two situations. This would also get rid of the ABS function if your SQL doesn’t like this in the HAVING clause. If you normally have significant daily fluctuations in sales (for example, Monday and Tuesday are very slow compared to Saturday), you could add a DAY_OF_WEEK to the accumulating department table and constrain to the appropriate day. In this way, you don’t mix the normal daily fluctuations into our standard deviation test.

When you are done checking the input data with the preceding SELECT statement, you can update the existing SUM_SALES and SUM_SQUARE_SALES just by adding today’s sales and today’s square of the sales, respectively, to these numbers in the accumulating department table.

Column Length Restriction

Screening on the length of strings in textual columns is useful in both staged and integrated record errors. An example of this screen might check customer last names that you believe are too long or too short to be credible. Here is an example of a SQL SELECT that performs such a screening:

SELECT	unique_identifier_of_offending_records
FROM	work_in_queue_table
WHERE	source_system_name = ‘Source System Name’
AND	LENGTH(numeric_column) IS NOT BETWEEN min AND max.

Column Explicit Valid Values

In cases where a given column has a set of known discrete valid values as defined by its source system, you can screen for exceptions by looking for occurrences of default unknown values in the processed columns. Alternatively, you can treat this as a staging screen by using the generic column validity reference table of valid values for columns from any data providers. Therefore, a representative SQL statement might be:

SELECT	unique_identifier_of_offending_records
FROM	work_in_queue_table Q
WHERE	source_system_name = ‘Source System Name’
AND	column NOT EXISTS
(	SELECT anything
	FROM column_validity_reference_table
	WHERE column_name = "column_name"
	AND source_system_name = ‘Source System Name’
	AND valid_column_value = Q.column_value
)

Column Explicit Invalid Values

In cases where a given column is routinely populated with values known to be incorrect and for which there is no known set of discreet valid values, the information-quality leader might choose to explicitly screen for these invalid values. An example might be the periodic appearance of strings like UNKNOWN in a customer last name field—where the set of all potentially valid customer last names is undefined. The explicit invalid values screen should obviously not attempt to exhaustively filter out all possible invalid values—just pick off the frequent offenders. Other data-cleaning technologies, such as name and address standardization and matching, are far more appropriate for these tasks. For simplicity’s sake, the example that follows hard-codes the offending strings into the screen’s SQL statement.

SELECT	unique_identifier_of_offending_records FROM
work_in_queue_table WHERE	source_system_name = ‘Source System Name’
AND	UPPER(column) IN (“UNKNOWN”, “?”, list of other
		frequent offenders… )

A slightly more elegant approach might compare the data values to a table full of frequent offenders, as in:

SELECT	unique_identifier_of_offending_records FROM
work_in_queue_table Q WHERE	source_system_name = ‘Source System Name’
AND	EXISTS ( SELECT ‘Got One’ FROM Table_Of_Frequent_Offenders WHERE column_name = Q.column_name)

If the set of valid values for a column is too large to be explicitly defined or is unknown, this type of screen has limited value, but in some useful cases the set of recently found violations can be used; data-entry people tend to repeat these violations over and over.

Checking Table Row Count Reasonability

This class of screens is quite powerful but a bit more complex to implement. It attempts to ensure that the number of rows received from a data source is reasonable—meaning that the row counts fall within a credible range based on previously validated record count histories. To test table row count reasonability, you can choose from a number of simple statistical tests such as calculating the number of standard deviations a value falls from the mean of previous similar values or opting for more advanced and professional value predictors such as the X.12 standard or even ARIMA (Autoregressive Integrated Moving Average) techniques. If you are interested in some of these powerful statistical tools, you’ll need a few weeks of consulting with a good statistician. A good place to find such a statistician is in your marketing research department, if you have such a department.

The data-staging table record count table shown in Figure 4.8 captures the number of records processed from each data source each day for each table—one row per data source per day.

Figure 4.8 Table level reasonability metadata.

Figure 4.8 presents these tables in a dimensional structure. Some ETL tools create similar tables as a byproduct of their normal operation. Using the data-staging table record count table, the SQL for this screen might be handled in two passes, as follows:

SELECT	AVERAGE(Number_of_Records)-3 * STDDEV(Number_of_Records),
	AVERAGE(Number_of_Records) + 3 * STDDEV(Number_of_Records)
INTO	Min_Reasonable_Records,
	Max_Reasonable_Records
FROM	data_staging_table_record_count
WHERE	source_system_name = ‘Source System Name”
SELECT	COUNT(*) FROM
work_in_queue_table WHERE	source_system_name = ‘Source System Name”
HAVING	COUNT(*) NOT BETWEEN
Min_Reasonable_Records AND Max_Reasonable_Records

Clever SQL gurus can implement the preceding screen as either multipass SQL (as shown), single pass SQL for each data source, or a single screen that validates table record count reasonability from all sources—depending on specific data-quality requirements and severity score flexibility needed. The information-quality leader might also choose to define multiple screens for the same table and source system, with a different number of standard deviation tolerances applied and different severity scores, for example, recording low severity errors at two standard deviations from mean, graduating to high severity errors at three standard deviations from mean and to outright stoppage of the entire ETL stream at four standard deviations.

The table row count screen can easily be extended to support reasonability testing of any additive metric in the data warehouse. For example, by adding a total sales metric to the table in Figure 4.8, screens can be written that identify situations when sales metrics are inexplicitly skewed:

SELECT	AVERAGE(Total_Sales_Dollars)-3
	* STDDEV(Total_Sales_Dollars),
	AVERAGE(Total_Sales_Dollars) + 3
	* STDDEV(Total_Sales_Dollars)
INTO	Min_Reasonable_Sales_Dollars,
	Max_Reasonable_Sales_Dollars
FROM	staging_table_record_count
WHERE	source_system_name = ‘Source System Name”
SELECT	SUM(Total_Sales_Dollars)
FROM	work_in_queue_table
WHERE	source_system_name = ‘Source System Name”
HAVING	SUM(Total_Sales_Dollars) NOT BETWEEN
	Min_Reasonable_Sales Dollars AND
	Max_Reasonable_Sales_Dollars

Checking Column Distribution Reasonability

The ability to detect when the distribution of data across a dimensional attribute has strayed from normalcy is another powerful screen. This screen enables you to detect and capture situations when a column with a discrete set of valid values is populated with a data distribution that is skewed abnormally. For example, the column being screened might be the product presented in a sales call fact from a sales force automation (SFA) system. Assume that history tells you that most sales calls are devoted to the presentation of product A (for which sales are highly compensated) and that very few present product B (which offers little reward to the sales force). You want to design a screen that will alert the information-quality leader if, say, you suddenly see too few sales calls for product A or too many sales calls for product B.

You build this screen by following an approach similar to the table row count reasonability technique described previously. Again, you are going to need a staging table to keep historical counts of the number of records seen for the valid values of a column over time, from which you can calculate means and standard deviations for your screen. Because there are often many possible values for a given column, and many columns with a discrete set of valid values, you will need to deviate from your metadata norms and propose staging tables that are specific to the table and sets of columns that are to be scrutinized by the screen. Of course, this increases the number of data-staging tables needed, but it affords the ETL architect much greater flexibility in physical implementation of these potentially large tables. In some cases, even this less-generalized data-staging approach generates a table that is too large to be used for high-performance ETL processing, so one can use the statistical technique described in a previous section for judging the mean and standard deviation of the data.

Note that the statistical approach described can also be used to support multicolumn screening—that is, testing for reasonability across several column combinations of valid values. Earlier in this chapter, we refer to this as value rule enforcement. An example of this might be scrutinizing daily sales by product and store, or daily sales by product, store, and day of the week, looking for results that are unreasonably skewed from historical norms.

Modifying the table in Figure 4.8 to add product as a dimension allows us capture daily sales-call counts by product. Using this table, the screen can compare the average sales-call totals by product code and source seen historically to those in the current ETL batch. Those products whose averages exceed the established threshold of standard deviations (as defined in the block of SQL in the screen definition) should have error event records written to the fact table.

Processing this type of screen using the technique described requires procedural programming on a level well supported by mainstream procedural SQL language extensions. This procedural SQL can be included in the screen SQL statement definition or handled outside of it. The important thing is for the ETL architect to be consistent in maintaining a screen metadata instance for all screens and in populating the error event fact for all error events surfaced by all screens.

Regardless of the implementation method chosen, the error event facts created by this screen are considered to be table-level screens, so the cleaned/conformed record identifier of the error event fact should be NULL.

General Data and Value Rule Reasonability

Data and value rules as defined earlier in the chapter are subject-matter specific, so we cannot give a list of specific checks for you to implement. But the form of the reasonableness queries clearly is similar to the simple data column and structure checks given in this section as examples.

Part 4: Conforming Deliverables

Integration of data means creating conformed dimension and fact instances built by combining the best information from several data sources into a more comprehensive view. To do this, incoming data somehow needs to be made structurally identical, filtered of invalid records, standardized in terms of its content, deduplicated, and then distilled into the new conformed image. In this section, we describe a three-step process for building conformed dimensions and facts:

Standardizing

Matching and deduplication

Surviving

When we conform data, we may convert Gender Codes of (M, F), (M, W), and (Man, Woman) from three different data providers into a standard gender dimension attribute of (Male, Female). Similarly we can conform name and address information using specialized tools.

Conforming descriptive attributes across multiple data sources, multiple data marts, and multiple remote clients participating in a distributed data warehouse is one of the key development steps for the data warehouse architect and the ETL team. Much has been written on the technical, administrative, and organizational affects this of this subject in the other Toolkit books. The immediate concerns of the ETL team are capturing the full range of overlapping and conflicting inputs and supporting the needs of the dimension manager and the fact-table provider.

Conformed Dimensions

Regardless of the hardware architecture, every data warehouse is distributed in a certain sense because separate kinds of measurements must always exist in separate fact tables. The same statement is true in an ER-modeled environment. So, for an end user application to combine data from separate fact tables, we must implement consistent interfaces to these fact tables so that data can be combined. We call these consistent interfaces conformed dimensions and conformed facts.

A conformed dimension means the same thing with every possible fact table to which it can be joined. Often, this means that a conformed dimension is identical for each fact table. A more precise definition of conformed dimensions is:

Two dimensions are conformed if they share one or more attributes whose values are drawn from the same domains. A requesting application must use only these common attributes as the basis for constraints and groupings when using the conformed dimensions to drill across separate fact tables.

Figure 4.9 illustrates the drill-across process for three fact tables supporting a conformed product dimension.

Figure 4.9 Drilling across three fact tables.

Examples of dimensions frequently conformed include customer, product, location, deal (promotion), and calendar (time). A major responsibility of the central data warehouse design team is to establish, publish, maintain, and enforce conformed dimensions.

The establishment of a conformed dimension is a very significant step for an organization. We describe the organization decisions and the overall procedure for arriving at the definitions of conformed dimensions in Data Warehouse Lifecycle Toolkit. A conformed customer dimension is a master table of customers with a clean surrogate customer key and many well-maintained attributes describing each customer. It is likely that the conformed customer dimension is an amalgamation and a distillation of data from several legacy systems and possibly outside sources. The address fields in the customer dimension, for instance, should constitute the best mailable address known for each customer anywhere within the enterprise. It is often the responsibility of the central data warehouse team to create the conformed customer dimension and provide it as a resource to the rest of the enterprise, both for legacy use and for data warehouse use.

The conformed product dimension is the enterprise’s agreed-upon master list of products, including all product rollups and all product attributes. A good product dimension, like a good customer dimension, should have at least 50 separate textual attributes.

The conformed calendar dimension will almost always be a table of individual days, spanning a decade or more. Each day will have many useful attributes drawn from the legal calendars of the various states and countries the enterprise deals with, as well as special fiscal calendar periods and marketing seasons relevant only to internal managers.

Conformed dimensions are enormously important to the data warehouse. Without strict adherence to conformed dimensions, the data warehouse cannot function as an integrated whole. If a dimension like customer or product is used in a nonconformed way, either the separate fact tables simply cannot be used together or, worse, attempts to use them together will produce wrong results. To state this more positively, conformed dimensions make possible a single dimension table to be used against multiple fact tables in the same database space, consistent user interfaces and consistent data content whenever the dimension is used, and a consistent interpretation of attributes and therefore rollups across different fact tables.

Designing the Conformed Dimensions

Identifying and designing the conformed dimensions should take a few weeks. Most conformed dimensions will naturally be defined at the most granular (atomic) level possible. The grain of the customer and product dimensions will naturally be the lowest level at which those entities are tracked in the source systems. The grain of the date dimension will usually be a day.

Taking the Pledge

If the central data warehouse team succeeds in defining and providing a set of master conformed dimensions for the enterprise, it is extremely important for the owners of separate fact tables to use these dimensions. The commitment to use the conformed dimensions is much more than a technical decision. It is a business-policy decision that is key to making the enterprise data warehouse function. The use of the conformed dimensions should be supported at the highest executive levels. This issue should be a sound bite for the enterprise CIO.

Permissible Variations of Conformed Dimensions

It is possible to create a subset of a conformed dimension table for certain fact tables if you know that the domain of the associated fact table contains only that subset. For example, the master product table can be restricted to just those products manufactured at a particular location if the data mart in question pertains only to that location. We can call this a simple data subset, since the reduced dimension table preserves all the attributes of the original dimension and exists at the original granularity.

A rollup data subset systematically removes both rows and columns from the original dimension table. For example, it is common to restrict the date dimension table from days down to months. In this case, we may keep only the record describing the first day of each month, but we must also remove all those attributes like Day-of-Week and Holiday-Flag that make sense only at a daily grain. See Figure 4.10.

Figure 4.10 Building a conformed calendar month table.

Perhaps you are wondering how to create queries in an environment where the conformed dimensions can be subsetted? Which dimension table should be used where? Actually, it is much simpler than it sounds. Each dimension table is naturally paired with its companion fact table. Any application that drills across fact tables must inevitably use multipass SQL to query each data mart separately and in sequence. It is usually the case that a separate SQL query is generated for each column in a drill-across report. The beauty of using conformed dimensions is that the report will run to completion only if the dimension attributes used in the report are found in each dimension table. Since the dimensions are conformed, the business answers are guaranteed to be consistent. The numbers will also be comparable if we have established conformed fact definitions.

Conformed Facts

We have talked thus far about the central task of setting up conformed dimensions to tie our data marts together. This is 80 percent of the up-front architectural effort. The remaining 20 percent is establishing standard fact definitions.

Fortunately, identifying the standard fact definitions is done at the same time as the identification of the conformed dimensions. We need standard fact definitions when we use the same terminology across fact tables and when we build single reports that drill across fact tables as described in the previous section.

Establishing conformed dimensions is a collaborative process wherein the stakeholders for each fact table agree to use the conformed dimensions. During conforming meetings, stakeholders also need to identify similar facts present in each of the fact tables. For instance, several fact tables may report revenue. If end user applications expect to add or compare these revenue measures from separate fact tables, the business rules that define these revenue measures must be the same. Perhaps revenue is measured by one group at the end of the month, whereas another group measures revenue on a rolling billing period. Or perhaps one group measures total sales, but another group measures only the Generally Accepted Accounting Principles (GAAP) recognized portion of the sale.

Conformed facts can be directly compared and can participate in mathematical expressions such as sums or ratios. If the stakeholders of the fact tables can reach agreement, the data-preparation steps for some or all of the fact tables may involve transformations of the facts in order to meet the common definition.

The Fact Table Provider

Although this section is more of an operational discussion, we want to complete the picture of the conforming dance we have described in this part of the chapter. In the next section, we define the role of a dimension manager, a centralized authority who prepares and publishes conformed dimensions to the community. The fact table provider is the receiving client of the dimension manager. The fact table provider owns one or more fact tables and is responsible for how they are accessed by end users. If fact tables participate in any enterprise-wide drill across applications, by definition they must use conformed dimensions provided by the dimension manager, and they must carefully prepare the numeric facts that have been identified by the organization as conformed (standardized) facts.

The Dimension Manager: Publishing Conformed Dimensions to Affected Fact Tables

A conformed dimension is by necessity a centrally managed object. A master dimension manager needs to be appointed by the organization to administer and publish each conformed dimension.

When the dimension manager releases a new version of a dimension, it is incumbent on the fact table provider to update local copies of the dimension as soon as possible. Ideally, the published dimension contains a version number field in every record, and all drill-across applications are enforcing the equality of this version number as they combine separate answer sets in the final step of preparing reports. If the fact table provider is tardy in updating dimensions, the drill-across application should fail because the version numbers don’t match. Although this sounds harsh, it is very important for this discipline to be enforced; different versions of the same dimension can lead to insidious, unobservable errors in the drill-across results.

Each conformed dimension should possess a Type 1 version number field in every record (see the discussion of Type 1, 2, and 3 slowly changing dimensions in the Chapter 5 if this is unfamiliar vocabulary). This version number field is overwritten in every record whenever the dimension manager releases the dimension to the separate fact tables. Any drill-across query that combines data from two or more fact tables using two or more separate copies of a dimension must make sure that the version numbers of the dimensions match exactly. This requires the dimension manager to replicate any revised dimensions to all client fact tables simultaneously. In an environment supporting drill-across queries between fact tables, failure to enforce the equality of dimension versions is a very serious error, because applications may well run to completion, but sums and groupings can be insidiously wrong, with no real way to detect inconsistencies in the final reports.

In a single tablespace in a single DBMS on a single machine, managing conformed dimensions is somewhat simpler because there needs to be only one copy of a dimension. This single copy is joined at query time to all the fact tables resident in the tablespace. However, this benefit can be realized only in the smallest and simplest data warehouses. As soon as fact tables become situated in multiple tablespaces, multiple DBMSs, or multiple remote machines, the dimension manager must exercise the full set of responsibilities described in the previous paragraph, in order to support drilling across multiple data sets.

It is worth mentioning one more time that the roles described for the dimension manager and the fact table provider apply not only to geographically distributed and autonomous data warehouse environments but also to highly centralized warehouses on a single machine administered by a single set of DBAs. As soon as fact tables reside in separate table spaces, all these issues are relevant because there must be multiple physical copies of the dimensions.

Detailed Delivery Steps for Conformed Dimensions

The creation of conformed dimensions is more than just reaching agreement on certain standard descriptive attributes in a dimension. In the following steps, the references to Type 1, 2, and 3 slowly changing dimensions (SCDs) are explained in detail in Chapter 5. The dimension manager must:

1. Add fresh new records to the conformed dimension, generating new surrogate keys.

2. Add new records for Type 2 changes to existing dimension entries (true physical changes at a point in time), generating new surrogate keys.

3. Modify records in place for Type 1 changes (overwrites) and Type 3 changes (alternate realities), without changing the surrogate keys. Update the version number of the dimension if any of these Type 1 or Type 3 changes are made.

4. Replicate the revised dimension simultaneously to all fact table providers.

The receiving fact table provider has a more complex task. This person must:

1. Receive or download dimension updates.

2. Process dimension records marked as new and current to update current key maps in the surrogate key pipeline.

3. Process dimension records marked as new but postdated. This triggers a complex alternative to the normal surrogate key pipeline processing (described in Chapters 5 and 6).

4. Add all new records to fact tables after replacing their natural keys with correct surrogate keys.

5. Modify records in all fact tables for error correction, accumulating snapshots, and postdated dimension changes. You probably do this on a partition by partition basis. See comment in Step 9.

6. Remove aggregates that have become invalidated. An existing historical aggregate becomes invalidated only when a Type 1 or Type 3 change occurs on the attribute that is the target of the aggregation or if historical fact records have been modified in Step 5. Changes to other attributes do not invalidate an aggregate. For instance, a change in the Flavor attribute of a product does not invalidate aggregates based on the Category attribute.

7. Recalculate affected aggregates. If the new release of a dimension does not change the version number, aggregates have to be extended to handle only newly loaded fact data. If the version number of the dimension has changed, the entire historical aggregate may have to be recalculated if it was removed in Step 6. OLAP systems may handle these steps automatically.

8. Quality-assure all base and aggregate fact tables. Be satisfied that the aggregate tables are correctly calculated.

9. Bring updated fact and dimension tables on line. The detailed strategy for taking a fact table (or more likely a partition of a fact table) offline for the briefest possible duration can be found in the Lifecycle Toolkit book starting on page 645.

10. Inform end users that the database has been updated. Tell users if major changes have been made, including dimension version changes, postdated records being added, and changes to historical aggregates.

Implementing the Conforming Modules

To implement conformed dimensions and facts, the conforming subsystem needs reference metadata that captures the relationships between explicitly valid values from source systems to conformed dimension attribute values and conformed fact values.

Many ETL tools support these types of domain mappings, either with prebuilt metadata attributes or by allowing the ETL team to use extensible metadata attributes for the source table objects. Figure 4.11 shows an example of metadata tables that support data conforming. The table and column

Figure 4.11 Conformed column support schema.

entities capture metadata about each table and its associated columns, respectively. The fact table records the officially defined conformed values from each source system. The identities of the overall source systems are captured in the source system table. The column dimension contains the source value mapped into the official conformed value. Thus, in the simple example cited earlier, if Male and Female were the target conformed values for gender, the fact table would associate M with Male, F with Female from source system A; and M with Male but W with Female from source system B; and Man with Male and Woman with Female from source system C.

Columns in records that contain invalid values—that is, values that are not in the set of explicit valid values in the column dimension table—should be replaced with a predefined value like Unknown from the standardized value reference table; replacement should be noted in the error event fact table.

It is important that bogus or invalid data that cannot be standardized be removed from the visibility of downstream ETL processes (like matching) and the end user community.

More complex forms of standardization are now routinely used to deal with cleansing of names and addresses. Specialized software tools provide support in this area that would be very difficult for ETL teams to attempt to duplicate. By all means, have a look at the leading players in this arena listed in Chapter 7. In some cases, the standardized value is arrived at probabilistically by a technique that uses statistical techniques to align imperfect data with some known universe of common names or geographies. Be aware that some probabilistic standardization tools also have self-tuning integration engines that learn over time more about the distribution of data specific to the particular application and adjust their processing algorithms appropriately. This is a powerful feature but one that can challenge the ETL architect’s ability to test a data-integration engine whose behavior changes/evolves as it gets smarter. Most standardization tools produce feedback on their success in reengineering data and in exceptions/errors encountered in processing of the data. It is important to capture, retain, and mine data-integration lineage observations—using the log tables left behind to generate error event facts.

Matching Drives Deduplication

Matching, or deduplication, involves the elimination of duplicate standardized records. In some cases, the duplicate can be easily detected through the appearance of identical values in some key column—like social security number, telephone number, or charge card number. This happy situation is all-too rare, unfortunately. In other cases, no such definitive match is found, and the only clues available for deduplicating are the similarity of several columns that almost match. In still tougher cases, more than one definitive-match columns are found to be identical, but they contradict one another.

Specialized data integration matching tools are now mature and in wide-spread use and deal with these very specialized data-cleansing issues. Often, these tools are closely associated with data-standardization tools and are sold together.

The matching software must compare the set of records in the data stream to the universe of conformed dimension records and return:

A numeric score that quantifies the likelihood of a match

A set of match keys that link the input records to conformed dimension instances and/or within the standardized record universe alone

Thus, an input record running through the match processes can be a match to zero or one conformed dimension records and zero, one, or more other input records in the batch process queue. In either case, the matching software’s job is to associate match keys to these input records that detail these derived match relationships. These match keys are used by the survivorship module described in the next section in figuring which records have been matched to one another and are therefore candidates for distillation into a single integrated record.

Many data-matching tools also include a match score, or matching confidence metric, that describes the likelihood of match obtained. Often, these match scores are derived by creating several matching approaches, or passes, scoring match probabilities from each pass and then distilling results into a recommended set of match keys and an overall weighted score.

Organizations with a need for very robust deduplication capabilities can choose also to maintain a persistent library of previously matched data, each still associated with a single data provider, and use this consolidated library to improve their matching results. In this way, the matching engine can apply its match passes not just to the conformed dimension records but also to the complete set of previously matched dimension records that it has from all source systems. This approach might result in better matches, because the universe of match candidates is richer, and it is far more resilient to gracefully handling matching rule changes, which can now be satisfied without having to run every source system’s data through the entire data-integration process. But this approach complicates match processing because matches can occur within and across the source and fully conformed data universes.

As of this writing, matching tools are far from turn-key implementations that plug into ETL streams and somehow know what to do. On the contrary, they require much profiling and training based on the organization’s data, the establishing of matching strategies for deciding which combinations of attributes (matching passes or perspectives) are most predictive of duplication, the tuning to distill these different perspectives into a matching policy, and the setting of match and no match thresholds based on the organization’s tolerance for over (aggressive) and under (conservative) matching. ETL tool-suite vendors have recently been targeting this application, however, and you should examine their plug-in matching transformers.

Surviving: Final Step of Conforming

Survivorship refers to the process of distilling a set of matched (deduplicated) records into a unified image that combines the highest-quality column values from each of the matched records to build conformed dimension records. This entails establishing business rules that define a hierarchy for column value selections from all possible sources and capturing the source-to-target mapping to be applied when writing out for survived (conformed) records.

In addition, survivorship must be capable of distilling combinations of columns together, rather than individually. This is needed for situations where the combining of individually survived columns could result in a nonsensical mishmash, such as combining address lines 1, 2, and 3 from three different source systems and ending up with a distilled address that is less credible than all three. It is far better in situations like this to create rules that mandate that certain combinations of columns (survivorship blocks) must be survived together: all or nothing. The metadata tables shown in Figure 4.12 support the most common requirements of survivorship.

Figure 4.12 Survivorship support metadata.

The Survivorship Source to Target Map table captures dataintegration mappings between source columns (input data that has been cleaned but not conformed) and target columns (conformed dimension table columns). For both flexibility and simplicity, it allows any combination of columns to be used as sources into any combination of targets—thus placing a burden on the ETL architect (rather than referential integrity that might have been included in a more complex structure) to populate it properly.

The Survivorship Block table groups mapped source and target columns into blocks that must be survived together (to properly address the address 1, 2, 3 types of issues described earlier). Survivorship blocks are allowed to be of one source and one target, too, so by forcing all survivorship to be performed by block, you can simplify both the metadata model and survivorship processing. This table includes a rank that allows the priority of source system blocks of fields to be determined with dynamic SQL, which looks for non-null values in each block ordered by survivorship block source rank priority, and builds an appropriate INSERT or UPDATE statement depending on whether the match key already exists as a conformed record surrogate key (UPDATE) or not (INSERT).

In cases where the deduplication process successfully coalesces separate source entities (such as customers) into a single entity, if the source entities have been assigned separate primary keys in the source system, a table of those obsolete primary keys should be maintained to speed subsequent deduplication runs using data from that source system.

Delivering

Delivering is the final essential ETL step. In this step, cleaned and conformed data is written into the dimensional structures actually accessed by the end users and application systems. In the smallest data warehouses consisting of a single tablespace for end user access, dimensional tables are simply written to this table space. But in all larger data warehouses, ranging from multiple table spaces to broadly distributed and autonomous networks of data marts, the dimensional tables must be carefully published in a consistent way. Delivering is so important that we devote Chapters 5 and 6 to its details.

Summary

Stepping back from all the detail, this chapter covered four big topics: objectives, techniques, metadata, and measurements.

The objectives of data cleaning and conforming are to reduce errors in data, improve the quality and usefulness of the contents of data, and standardize key descriptive attributes and numerical measures shared across the organization.

Data-quality techniques range from examining individual field definitions at the data-base level (column property enforcement), to checking for field-to-field consistency (structure enforcement), and finally to business-rule specific checks on data (data and value rule enforcement). The final phase of data-quality processing (conforming and deduplicating) is the most far reaching, since in this phase we resolve differences across separate data sources.

Data-quality metadata contains declarations and business rules that hold our techniques together. We described a methodology for building a family of screens, each representing a data-quality investigation. Some of the screens are run routinely as part of every ETL episode, and some are run occasionally as periodic sanity checks or special investigations. The routine screens supply diagnostic indicators and measurements that we store in a detailed error event fact table and in audit dimensions attached to our fact tables. These audit dimensions are interesting because in a sense they elevate metadata to real data. Data-quality indicators can participate in instrumented end user queries just as if they were normal data.

Finally, data-quality measurements we proposed are a starter set of measurements that the ETL team needs in order to build a comprehensive data-quality processing pipeline.

When data has made it through data-quality processing pipeline, it is ready for the final delivering step, laid out in detail in Chapters 5 and 6.
